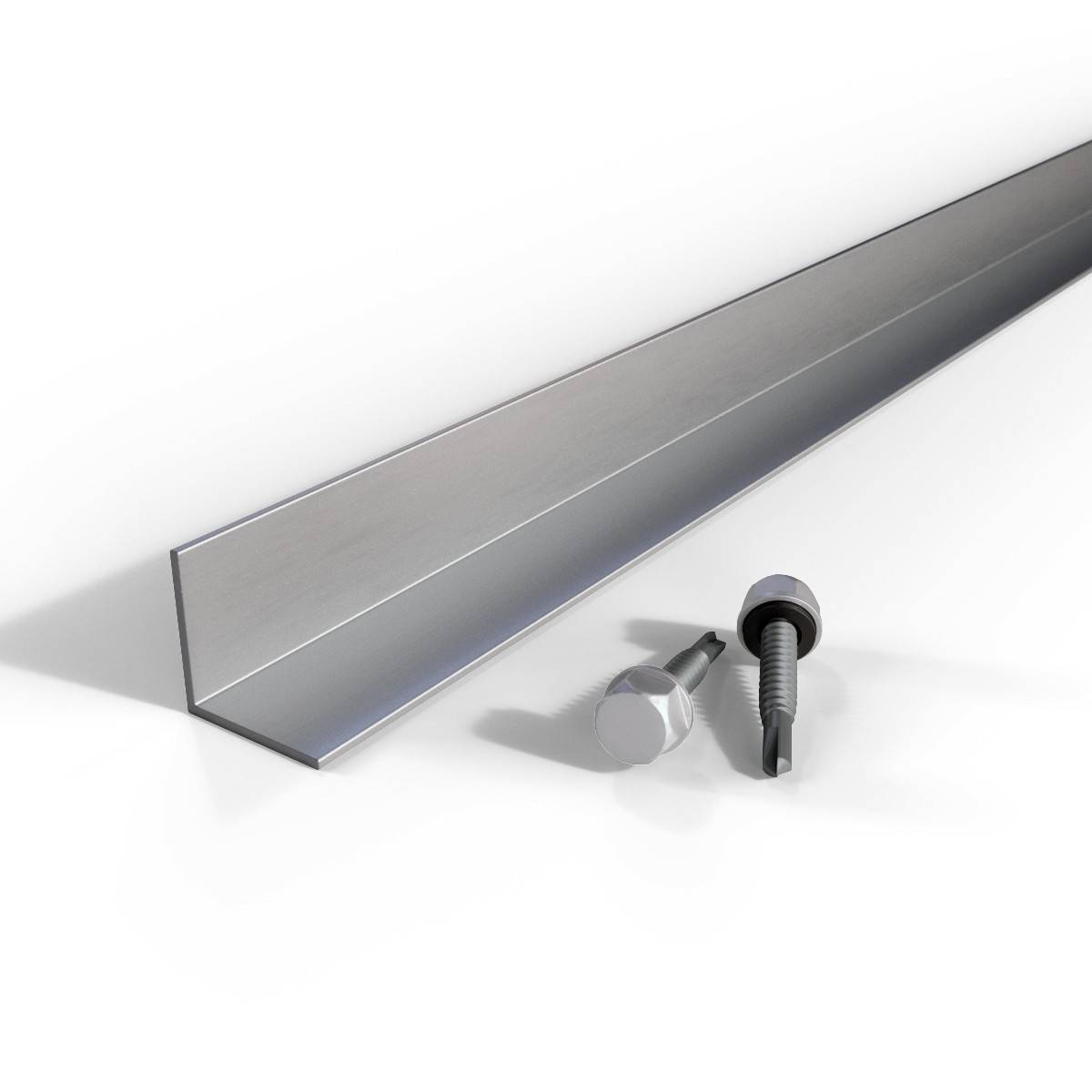

The Renusol TriSole+ L-Profile Cross Striving Profile LONG 1900mm (SET) Bifacial (Part No. REN-420601) is the
extended-length variant of Renusol's TriSole+ tri-angular module support frame, built for bifacial PV modules on
pitched or low-pitch flat roofs. Like the standard TriSole+ set, it fixes to the roof structure via penetrative anchors (Renusol's
MS+, MS+P, or VS+ range) rather than ballast, but uses a 1900mm cross striving profile to suit the larger frame dimensions and
rear-side clearance that bifacial modules typically need. The set includes the tri-angle frame and back support
required to mount a single module.
10°–35°
Adjustable Tilt (5° Steps)
2°–25°
Roof Slope, Orthogonal Install
2°–45°
Roof Slope, Parallel Install
⚠ Penetrative Fixing — Not a ConSole+ Ballasted Component
Like the standard TriSole+ set, REN-420601 is a roof-penetrating mounting system that attaches via Renusol's MS+, MS+P, or VS+ anchor range. It is not compatible with, and does not form part of, the ballasted ConSole+ (CS+) tray system — confirm the correct mounting family for the site before ordering.
ⓘ Confirm Bifacial Module Frame Dimensions Before Ordering
This is the 1900mm long-profile variant of the TriSole+ cross striving profile, sized for the larger frame dimensions typical of bifacial modules. Manufacturer-published specifications confirming the exact frame size range, module thickness, and rear clearance for this specific SKU were not available at time of writing — installers should verify fit against the module datasheet and Renusol's TriSole+ installation manual before specifying.
✓ Rear-Side Clearance for Bifacial Generation
The tri-angular frame geometry lifts the module clear of the roof surface, preserving the open rear-side exposure that bifacial panels rely on to capture reflected light and generate power from both faces.
Extended 1900mm Profile
The 1900mm cross striving profile is longer than the standard TriSole+ set, giving the frame the reach needed to properly support and brace larger-format bifacial modules.
Tri-Angular Frame Geometry
The triangular support structure provides a stable, self-bracing mounting point, distributing wind and snow load through the roof anchor rather than relying on ballast weight.
Open Rear-Face Mounting
By raising the module clear of the roof deck on a frame rather than a flush tray, the system preserves the rear-side light access bifacial modules need to generate from reflected and diffuse irradiance.
Wide Roof Slope Range
Installable orthogonal to the roof slope up to 25°, or parallel to the roof slope up to 45°, matching the flexibility of the standard TriSole+ system across near-flat and pitched commercial roofs.
Stainless Steel and Aluminium Build
Constructed from stainless steel and aluminium for long-term outdoor durability, consistent with the rest of the TriSole+ range.
10-Year System Warranty
Backed by Renusol's 10-year system warranty when installed as a complete, unmodified system with Renusol-approved roof anchor components.
| System Overview |
| Part Number |
REN-420601 |
| System Name |
TriSole+ L-Profile Cross Striving Profile LONG 1900mm (SET) Bifacial |
| Mounting Type |
Tri-angular module support, penetrative fixing |
| Profile Length |
1900 mm |
| Module Type |
Bifacial PV modules |
| System Warranty |
10 years |
| Roof Compatibility (Shared TriSole+ System Data) |
| Roof Covering |
Sheet metal (trapezoidal/corrugated), sandwich panel, fibre-cement |
| Roof Slope — Orthogonal Install |
min. 2° / max. 25° |
| Roof Slope — Parallel Install |
min. 2° / max. 45° |
| Roof Attachment |
Via Renusol MS+, MS+P, or VS+ anchor systems (sold separately) |
| Module Tilt |
10° to 35°, adjustable in 5° steps |
| Materials |
| Material |
Stainless steel, aluminium |
| Kit Contents |
| Frame |
1 x Tri-angle support |
| Support |
1 x Back support |
How is this different from the standard TriSole+ set (REN-420600)?
REN-420601 uses a 1900mm long cross striving profile and is specified for bifacial modules, versus the standard TriSole+ set's shorter profile for conventional framed modules. The core mounting principle — a penetrative, tri-angular frame — is the same across both.
Is this compatible with the ConSole+ ballasted tray?
No. Like all TriSole+ products, REN-420601 is a penetrative mounting system fixed to the roof via separate anchor hardware (MS+, MS+P, or VS+), and is not part of, or compatible with, the ballasted ConSole+ (CS+) system.
Why does the profile length matter for bifacial modules?
Bifacial modules are generally larger and heavier than standard monofacial panels, and benefit from clear rear-side exposure. The longer 1900mm profile gives the frame the span needed to properly support these larger modules while keeping the rear face open.
Does this kit include the roof anchor points?
No. This SET includes only the tri-angle frame and back support. The appropriate roof anchor (MS+, MS+P, or VS+, depending on roof covering) must be ordered separately.
