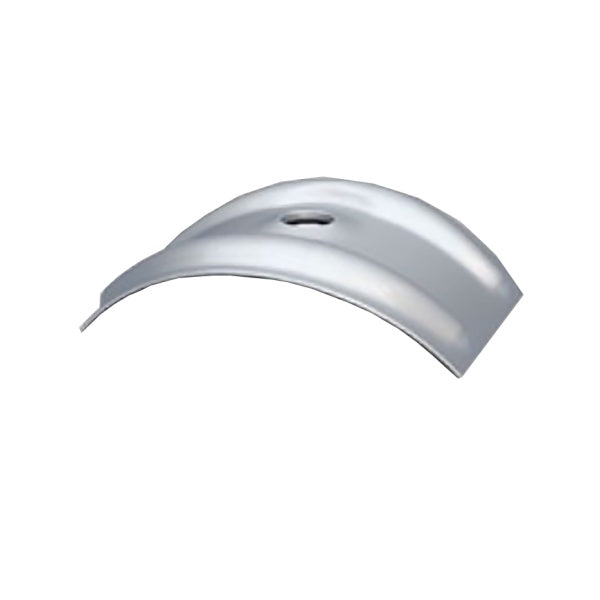

Renusol Storm Washer for Corrugated Sheet R24/37 - REN-900220 | Aluminium EPDM Sealing Washer

Description

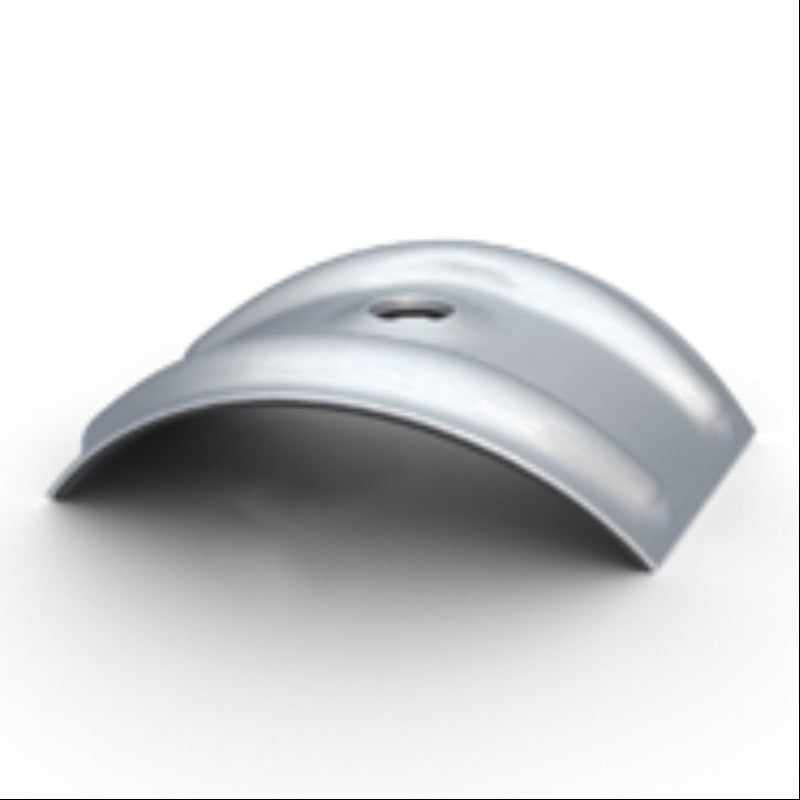

The Renusol Storm Washer for Corrugated Sheet (Part No: REN-900220, R24/37) is a profile-matched sealing washer designed to sit beneath a Renusol solar fastener on corrugated roof sheeting, ensuring the fixing point follows the sheet's curved profile while maintaining a weathertight seal. Manufactured from aluminium with a pre-assembled EPDM seal, the washer is shaped to a 24mm radius to match common corrugated roof profiles.

This storm washer is used together with a compatible Renusol solar fastener (part numbers 900181–900192), completing a weathertight fixing point that transfers module and wind/snow loads safely into the roof substructure without compromising the sheet's water tightness.

45×40×12mm

Dimensions

0.008kg

Weight

24mm

Rib Radius

37mm

Width

Aluminium + EPDM

Material

7.3mm

Port Diameter

Compatibility Warning

Renusol mounting equipment must not be used with mounting equipment from other suppliers. Doing so would inevitably void the warranty of the mounting system.

Match Washer to Roof Profile

This washer is shaped for a 24mm rib radius corrugated profile. Renusol also offers R32/51 and R48/62 variants for other corrugated roof profiles — always match the washer to the specific roof sheeting profile before ordering.

Key Features

Profile-Matched to Corrugated Sheet

Shaped to a 24mm radius to follow the curve of common corrugated roof sheeting profiles for a snug, weathertight fit.

Pre-Assembled EPDM Seal

The EPDM seal is pre-fitted to the aluminium body, ready to install without assembling separate sealing components.

Aluminium Construction

Manufactured from aluminium for long-term corrosion resistance in exposed outdoor roof conditions.

Maintains Roof Water Tightness

Works with the solar fastener to transfer structural loads into the substructure while keeping the roof sheet's weatherproofing intact.

TÜV and MCS Certified

Certified to TÜV ID 1111212485 and MCS012 IK0197/04, supporting MCS-compliant UK solar PV installations.

Compact, Easy-to-Stock Component

A small, lightweight washer that's simple to keep as spare stock alongside Renusol solar fastener orders.

Technical Specifications

General

Part Number

REN-900220

Product Name

Storm washer for corrugated sheet R24/37

Manufacturer

Renusol

Roof Type

Corrugated sheet metal roof

Construction

Material

Aluminium; EPDM

Seal

EPDM, pre-assembled

Dimensions

45 × 40 × 12mm

Weight

0.008kg

Colour

Blank aluminium

Profile Specification

Rib Radius

24mm

Width

37mm

Port (Opening) Diameter

7.3mm

Certification

TÜV ID

1111212485

MCS Certification

MCS012 IK0197/04

Compatible Components

Solar Fasteners

REN-900181 – REN-900192 range

Frequently Asked Questions

What roof profile is this storm washer designed for?

This washer is shaped to a 24mm rib radius, suited to common corrugated roof sheeting profiles (R24/37). Other rib radii require the R32/51 or R48/62 variants.

What is a storm washer used for?

It sits beneath a Renusol solar fastener on corrugated roof sheeting, allowing the fixing to follow the sheet's curved profile while maintaining a weathertight seal.

Does the washer come with a seal fitted?

Yes. The EPDM seal is pre-assembled onto the aluminium washer body, ready to install.

What solar fasteners is this washer compatible with?

It is compatible with the Renusol solar fastener range (900181–900192) used to anchor mounting equipment into timber or steel substructure.

Is this washer certified for UK solar installations?

Yes. It is certified to TÜV ID 1111212485 and MCS012 IK0197/04, supporting MCS-compliant installations.
