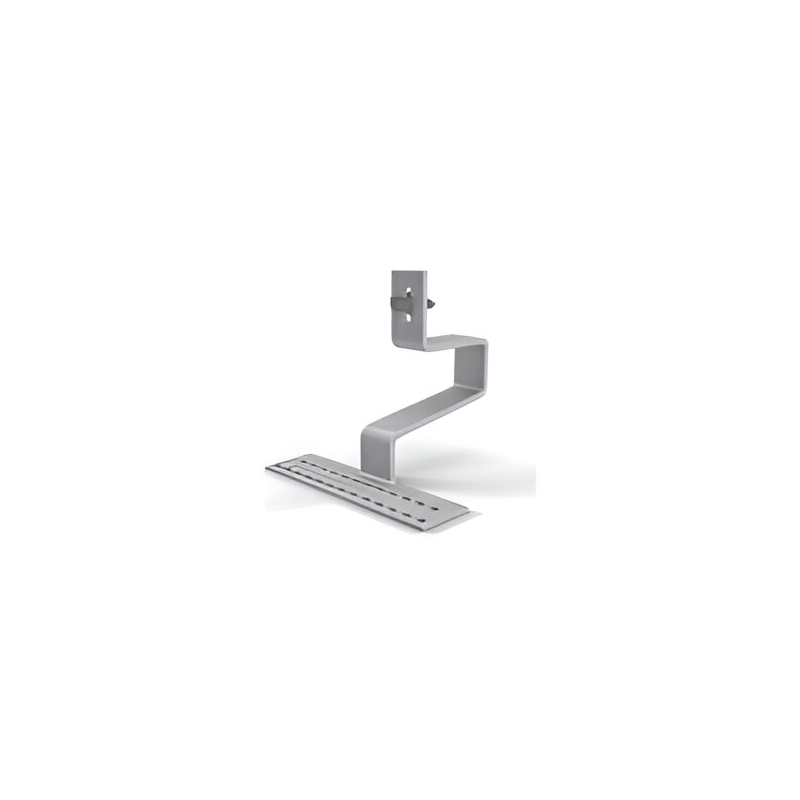

The Renusol Roof Hook UK Pantile (Part No: REN-420180) is a purpose-built roof anchor engineered specifically for the UK market, designed to secure solar PV mounting rails beneath UK pantile, S-shaped, and many concrete interlocking roof tiles. Manufactured from galvanised steel with a 5.0mm material thickness, the hook is supplied pre-assembled and without wood screws, giving installers the flexibility to select fixings appropriate to the roof structure beneath.
Part of the Renusol VS+ pitched-roof mounting system, this hook uses a frictional serrated connection and an M8 hammerhead bolt fixing to attach the mounting rail, with a built-in vertical adjustment slot to help fine-tune rail alignment across the roof.
Galvanised Steel
Material
Compatibility Warning
Renusol mounting equipment must not be used with mounting equipment from other suppliers. Doing so would inevitably void the warranty of the mounting system.
Wood Screws Sold Separately
This hook is supplied pre-assembled and without wood screws, so the correct wood screws for the roof's rafter timber must be ordered separately to complete the fixing.
Key Features
UK-Specific Tile Profile
Engineered specifically for the UK market to sit correctly beneath pantile, S-shaped, and many concrete interlocking tiles without disturbing roof weatherproofing.
Galvanised Steel Construction
Built from 5.0mm galvanised steel for long-term corrosion resistance in exposed outdoor roof conditions.
Pre-Assembled Hook and Baseplate
Supplied as a ready-assembled unit, reducing on-site fitting time compared with loose components.
Height Adjustment Slot
A built-in vertical adjustment slot allows installers to fine-tune rail alignment to suit the roof line.
VS+ System Compatible
Designed for use with the Renusol VS+ mounting rail range, forming part of a complete, warrantied pitched-roof mounting system.
Frictional Serrated Fixing
The hammerhead bolt connection uses a serrated frictional fixing for a secure, vibration-resistant hold once tightened.
Technical Specifications
General
Product Name
Roof Hook UK Pantile (without wood screw)
System Compatibility
VarioSole+ (VS+)
Construction
Material
Galvanised steel
Dimensions (H×W×D)
170 × 185 × 175mm
Base Plate Dimensions
185 × 50mm
Colour
Blank (natural galvanised finish)
Fixing
Wood Screws
Not included — order separately
Certification
MCS Certification
MCS012 IK0197/05
Suitable Roof Types
Tile Profile
UK pantile, S-shaped tiles, many concrete interlocking tiles
Application
Residential, agricultural, industrial and commercial pitched roofs
Frequently Asked Questions
Does this roof hook come with wood screws?
No. The REN-420180 is supplied pre-assembled but without wood screws, so installers can choose the correct screw type and length for the specific rafter timber on site.
Which tile types is this hook suitable for?
It is designed for UK pantiles, S-shaped tiles, and many concrete interlocking tile profiles. For plain tiles or slates, a different Renusol roof hook variant is required.
Can this be used with mounting rails from another manufacturer?
No. Renusol mounting equipment must not be mixed with components from other suppliers, as doing so would void the warranty of the mounting system.
What material is the hook made from, and how corrosion-resistant is it?
The hook is manufactured from 5.0mm galvanised steel, giving it strong long-term corrosion resistance suitable for permanent outdoor roof installation.
What rail system is this hook compatible with?
It is designed for use with the Renusol VS+ (VarioSole+) mounting rail range, forming part of a complete pitched-roof solar mounting system.
