Renusol Roof Hook RH1 Pantile (No Fixings) - REN-420171 | High Load Adjustable Aluminium Hook

Description

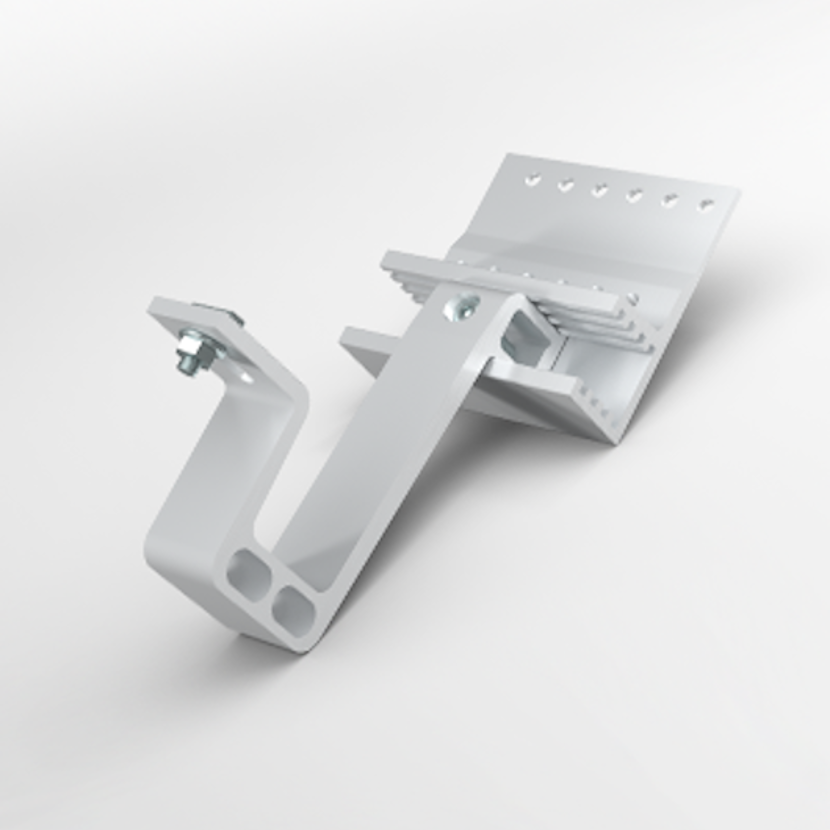

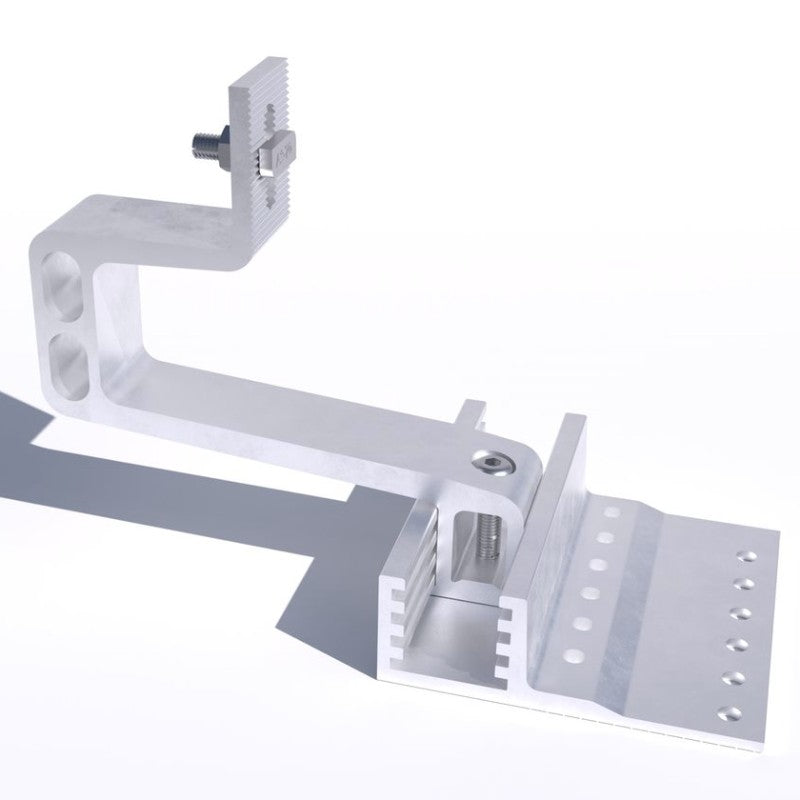

The Renusol Roof Hook RH1 Pantile (Part No: REN-420171) is Renusol's high-load aluminium roof hook, engineered to be 25% stronger than Renusol's previous strongest hook while using fewer components on site. Supplied without wood screws, the RH1 gives installers an adjustable, universal fixing point for pantile roofs with a timber substructure.

An adjustable base plate lets the hook be positioned optimally between rafters or tiles, while the hook height itself adjusts in four steps to a total of 25mm, ensuring a secure, flush fitment even on uneven roofs — the hook's arm also has a 25mm vertical adjustment range on the mounting rail for extra flexibility.

169×118×243mm

Dimensions

0.664kg

Weight

Aluminium

Material

25% Stronger

Vs. Previous Model

25mm

Height Adjustment

M8

Hammerhead Bolt

Compatibility Warning

Renusol mounting equipment must not be used with mounting equipment from other suppliers. Doing so would inevitably void the warranty of the mounting system.

Wood Screws Sold Separately

This hook is supplied without wood screws. The correct wood screws for the specific rafter timber must be ordered separately to complete the fixing.

Key Features

Extraordinarily High Load Capacity

Designed to be 25% stronger than Renusol's previous strongest roof hook, reducing on-site mounting costs by allowing fewer components per installation.

Adjustable Base Plate

The base plate can be repositioned to sit optimally between rafters or tiles, giving installers flexibility during layout.

Four-Step Height Adjustment

The hook height adjusts in four steps to a total of 25mm, helping achieve a secure, flush fitment even on roofs with minor surface variation.

25mm Rail Arm Adjustment

The hook's arm has a further 25mm of vertical adjustment on the mounting rail, useful for accommodating uneven roof surfaces.

Aluminium Construction

Manufactured from aluminium for a strong yet lightweight hook, easy to handle and install on site.

Universal Configuration

The hook's universal application allows for extensive configuration possibilities across different pantile roof layouts.

Technical Specifications

General

Part Number

REN-420171

Product Name

Roof Hook RH1 (without wood screw)

Manufacturer

Renusol

Roof Decking

Tiled roof (pantile), timber substructure

Construction

Material

Aluminium

Material Thickness

9.0mm

Dimensions

169 × 118 × 243mm

Weight

0.664kg

Base Plate Dimensions

115 × 118mm

Set Type

Pre-assembled

Fixing

Hammerhead Bolt Diameter

M8

Screws Applicable

3 × 6.0mm (not included)

Adjustment

Height Adjustment

4 steps, 25mm total

Rail Arm Vertical Adjustment

25mm

Frequently Asked Questions

Does this roof hook come with wood screws?

No. The RH1 is supplied without wood screws, so installers can select the correct screw type and length for the specific rafter timber on site.

How much stronger is the RH1 than other Renusol roof hooks?

Renusol designed the RH1 to be 25% stronger than their previous strongest roof hook model, giving extraordinarily high load capacity.

How does the height adjustment work?

The hook height adjusts in four discrete steps to a total of 25mm, and the hook's arm has a further 25mm of vertical adjustment on the mounting rail — useful for uneven roof surfaces.

What roof type is this hook designed for?

It is designed for pantile roofs with a timber substructure, as part of the Renusol VS+ pitched-roof mounting system.

Can this hook be used with mounting rails from another manufacturer?

No. Renusol mounting equipment must not be mixed with components from other suppliers, as doing so would void the warranty of the mounting system.
