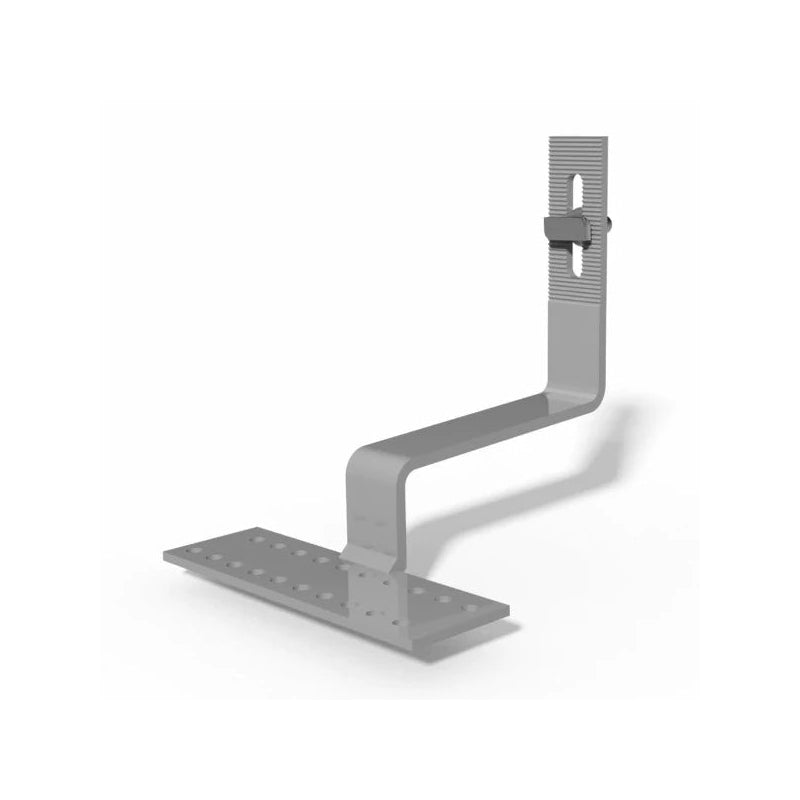

The Renusol Roof Hook ECO Basic (Part No: R-420165) is a pre-assembled, adjustable galvanised steel roof hook designed for solar PV installations on tiled roofs with a wooden substructure. As the entry-level hook in Renusol's VS+ range, it delivers a cost-effective, structurally rated fixing point without compromising on the adjustability or corrosion protection expected of the wider system.
Supplied without wood screws, it uses 2 to 3 screws (selected to suit the installation) to fix the base plate to the roof timber, and is compatible with an M8 hammerhead bolt for connecting the mounting rail above.
| Product Details | |
| Manufacturer | Renusol |
| Part Number | R-420165 |
| Product Name | Roof Hook ECO Basic (without wood screws) |
| Product Range | VS+ |
| Dimensions & Weight | |
| Hook Dimensions (H x W x D) | 150mm x 180mm x 170mm |
| Base Plate Dimensions | 50mm x 150mm |
| Material Thickness | 5.0mm / 4.0mm |
| Weight | 0.55kg |
| Application & Adjustment | |
| Roof Type | Tiled roofs |
| Substructure Material | Wood |
| Horizontal Adjustment | 60mm |
| Height Adjustment | 37.5mm |
| Pre-Assembled | Yes |
| Fixings Required | 2 to 3 wood screws (not included) |
| Compatible Bolt | M8 hammerhead bolt |
| Materials & Corrosion Protection | |
| Material | Galvanised steel |
| Corrosion Protection | Zinc coating per EN ISO 14713-1:2017, Category C3 |
| Protection Duration | 26 to 78 years under Category C3 conditions |
| System-Level Certification (VS+) | |
| System Warranty | 10 years |
| Roof Pitch Range | 5° minimum, 60° maximum (subject to Renusol Configurator check) |
| Certifications | TÜV ID1111212485 (per 2PfG); MCS012 IK0197/03, IK0197/04, IK0197/05 |
| Compatible Roof Coverings (System-Wide) | Tile, slate, sheet metal (trapezoidal/corrugated), sandwich, fibre-cement |
