Renusol Rear Grip Clamp for ConSole+ REN-420023 | Frameless Module Fixing for CS+ Trays

Description

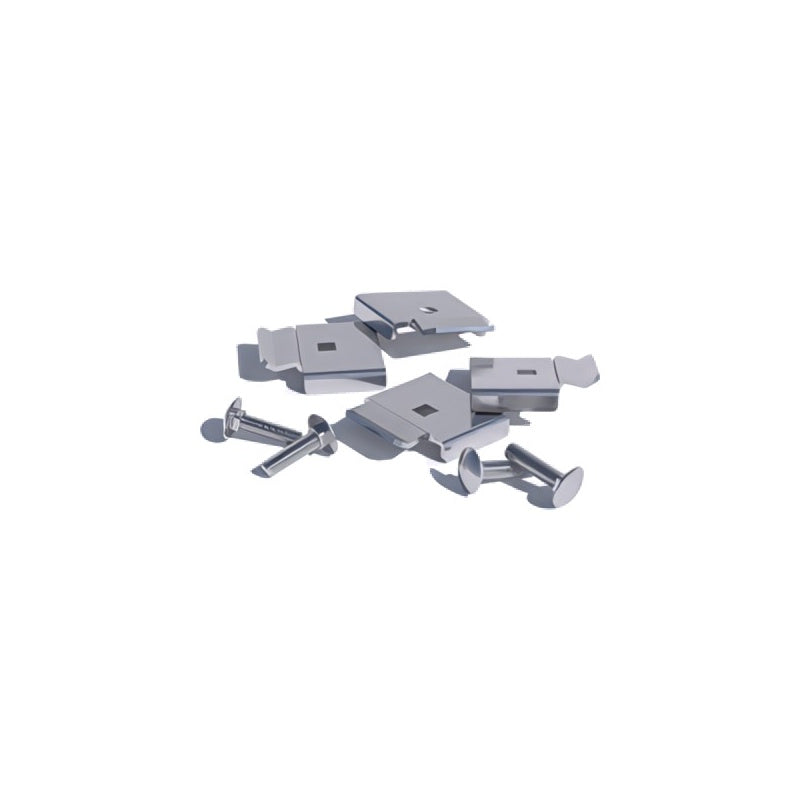

The Renusol Rear Grip Clamp for CS (Part No. REN-420023) extends the ConSole+ (CS+) mounting range to PV modules that don't have usable mounting holes in their frame. Some modules — including many 72-cell panels — either lack frame mounting holes entirely or have them positioned somewhere the standard ConSole+ U-profile clamp can't reach. The Rear Grip Clamp solves this by gripping the module frame directly at the rear rather than bolting through a pre-drilled hole, allowing these modules to be installed on the classic ConSole+ ballasted tray where they previously couldn't be fitted.

>1750 mm

Min. Compatible Module Vertical Size

<2150 mm

Max. Compatible Module Vertical Size

CS+

Compatible System

1

ConSole+ Tray Required per Clamp Set

ⓘ For Modules Without Usable Frame Mounting Holes

This clamp is specifically for PV modules that either have no mounting holes in the frame, or have them positioned somewhere the standard ConSole+ U-profile can't clamp — a common issue with 72-cell modules. If your module's frame holes align with the standard ConSole+ clamping position, this accessory isn't required.

✓ Widens ConSole+ Module Compatibility

Before this clamp was available, frameless-hole or awkwardly-drilled modules simply couldn't be fitted to the ConSole+ system. The Rear Grip Clamp means the classic ConSole+ tray can now be specified for a wider range of module designs without switching to a different mounting family.

Frame-Grip Fixing, No Holes Required

Rather than relying on a bolt through a pre-drilled frame hole, the clamp grips the module frame directly, making it possible to mount modules whose frames have no usable holes at all.

Solves the 72-Cell Module Problem

Many 72-cell modules have their frame mounting holes positioned in places that don't line up with the ConSole+ clamping rail — this clamp bypasses that limitation entirely by clamping the frame edge instead.

Extends the Classic ConSole+ System

Rather than requiring installers to move to a different mounting range for awkward modules, the Rear Grip Clamp lets the proven ConSole+ ballasted tray stay the standard choice across a broader module range.

Fits the Standard R520075-K Tray

The clamp is designed to work with the standard ConSole+ (R520075-K) base tray, so no separate tray or platform purchase is needed — it's an addition to the existing system, not a replacement.

Targeted at a Specific Module Size Range

Compatibility is defined by the module's vertical (frame length) dimension, so it's worth checking module datasheets against this range before ordering to confirm fit.

System Overview
Part Number	REN-420023
Product Name	Rear Grip Clamp for CS
Purpose	Enables mounting of modules without usable frame mounting holes on ConSole+
Compatible System	Renusol ConSole+ (CS+) — R520075-K
Module Compatibility
Compatible Module Types	Framed PV modules without mounting holes, or with holes in unfavourable positions (e.g. 72-cell modules)
Module Vertical Size Range	Greater than 1750 mm and less than 2150 mm

Do I need this clamp for every ConSole+ installation?

No. It's only needed for modules that don't have usable frame mounting holes in the position the standard ConSole+ U-profile clamp requires. Most standard framed modules mount to ConSole+ without this accessory.

What module sizes is this clamp designed for?

The Rear Grip Clamp is intended for modules with a vertical (frame length) size greater than 1750 mm and less than 2150 mm. Check your module's datasheet against this range before ordering.

Why would a module not have mounting holes?

Some module designs, particularly certain 72-cell panels, either omit frame mounting holes altogether or place them somewhere that doesn't align with the ConSole+ clamping rail. This clamp grips the frame directly instead of relying on a hole.

Does this replace the standard ConSole+ tray?

No. The Rear Grip Clamp is fitted in addition to a standard R520075-K ConSole+ tray — it's an accessory that extends compatibility, not a replacement mounting platform.
