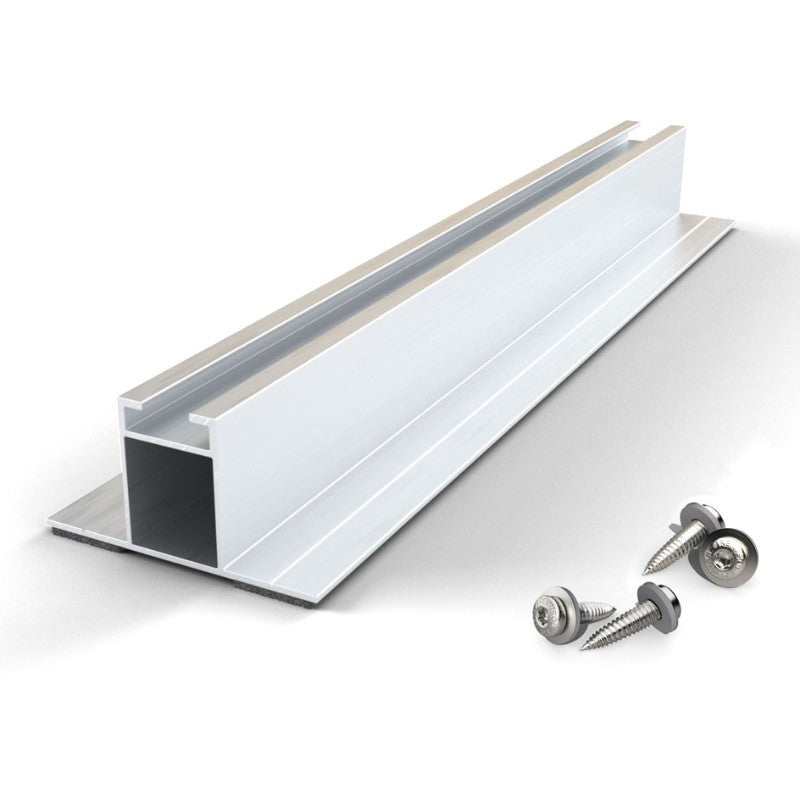

The Renusol MetaSole+ Portrait Rail 400mm Long (Part No: REN-420421) is a short, non-continuous mounting rail designed for installing solar PV modules in portrait (vertical) orientation on trapezoidal metal sheet roofs. Manufactured from natural aluminium with a pre-assembled EPDM seal, the rail attaches directly to the roof using self-tapping screws, with no pre-drilling required.
Featuring a 320mm range of horizontal adjustment and a click-profile top channel for module clamps, this 400mm rail is suited to trapezoidal roofs with a raised bead spacing of at least 12mm, and accommodates framed PV modules with a 30–50mm frame height.
320mm
Horizontal Adjustment
Portrait
Module Orientation
Compatibility Warning
Renusol mounting equipment must not be used with mounting equipment from other suppliers. Doing so would inevitably void the warranty of the mounting system.
Naming & Roof Rib Spacing Note
The rail's actual product length is 350mm per manufacturer specification, sold under the '400mm long' product name used across the trade. The maximum supported distance between the centres of raised trapezoidal ridges is 370mm.
Key Features
Portrait Module Orientation
Purpose-built for mounting PV modules vertically (portrait) on trapezoidal metal sheet roofs.
No Pre-Drilling Required
Fixes directly to the roof sheet using included self-tapping screws, without the need for pilot drilling.

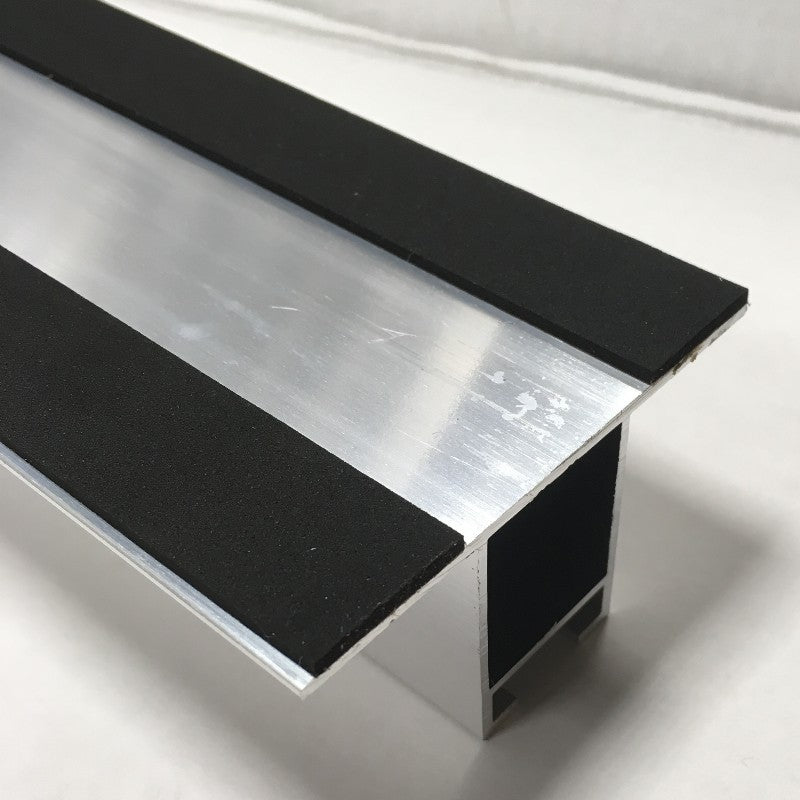

Pre-Assembled EPDM Seal
A pre-fitted EPDM seal protects each fixing point against water ingress.
320mm Horizontal Adjustment
Provides 320mm of horizontal adjustment range, giving installers flexibility to align the rail with the roof's structural ribs.
Click-Profile Top Channel
The rail's top channel uses a click-profile design for straightforward module clamp attachment.
Suitable for Steel and Aluminium Sheets
Compatible with aluminium sheet 0.50–1.50mm and steel sheet 0.40–1.13mm, covering common trapezoidal roofing materials.
Technical Specifications
General
Product Name
MetaSole+ PORTRAIT rail 400mm long
Module Orientation
Vertical (portrait)
Construction
Dimensions
350 × 77 × 39mm
Cross Section Area
0.289cm²
Top Rail Channel
Click profile inside
Roof Compatibility
Roof Type
Pitched roof — trapezoidal metal sheet
Aluminium Sheet Thickness
0.50–1.50mm
Steel Sheet Thickness
0.40–1.13mm
Minimum Raised Bead Width
12mm
Max. Distance Between Rib Centres
370mm
Pre-Drilling
Not required
Fixing & Adjustment
Horizontal Adjustment Range
320mm
Attachment Method
Screw fixing (self-tapping)
Screws Included
4 × self-drilling screws
Frequently Asked Questions
Does this rail come with fixing screws?
Yes. It is supplied with 4 self-drilling screws suitable for aluminium sheet 0.50–1.50mm or steel sheet 0.40–1.13mm.
What module orientation is this rail designed for?
This rail is designed for portrait (vertical) module orientation on trapezoidal metal roofs, as opposed to the standard landscape MetaSole+ system.
What is the maximum spacing between trapezoidal roof ribs this rail can span?
The rail is suitable for roofs with a maximum distance of 370mm between the centres of raised trapezoidal ridges.
Does this rail need pre-drilling into the roof?
No. It attaches directly to the metal sheet using the included self-tapping screws, without any pilot drilling required.
What module frame heights is this compatible with?
The MetaSole+ portrait system is designed for framed PV modules with a frame height of 30 to 50mm.
