Renusol Hanger Bolt for Wooden Purlins 200/50 - REN-900192 | M10 Timber Substructure Fixing

Description

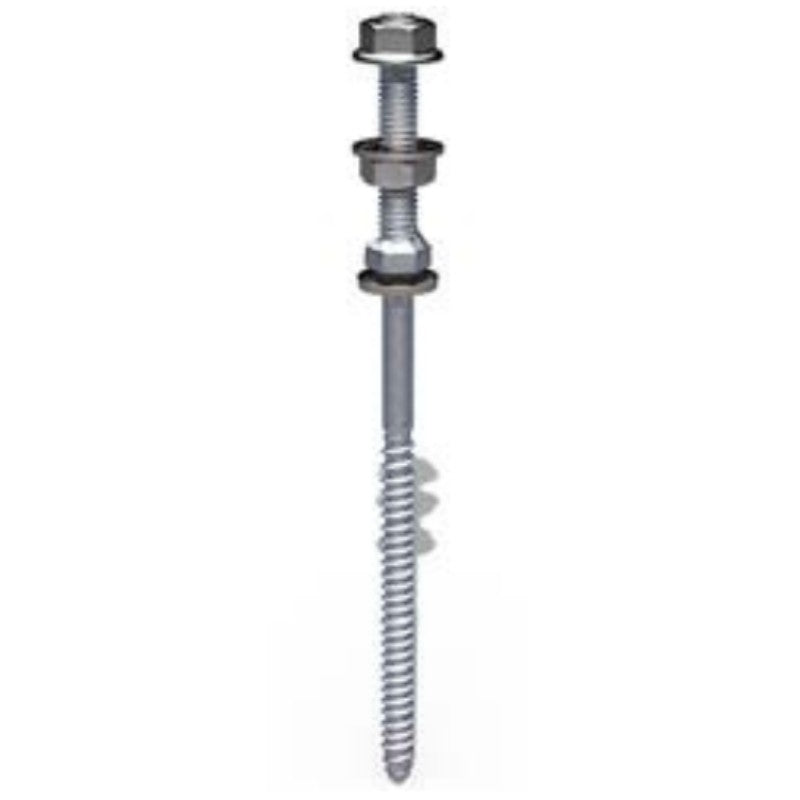

The Renusol Hanger Bolt for Wooden Purlins (Part No: REN-900192, dimension code 200/50) is a stainless steel hanger bolt designed to anchor Renusol VS+ pitched-roof mounting systems directly into timber purlins and rafters. With a total length of 256mm and an M10 threaded end, this bolt provides a secure fixing point with a module thickness clamping range of 125.0–160.0mm, suited to deeper timber substructures or roofs requiring greater standoff height.

This bolt must be paired with the Renusol VarioSole L Bracket M10 in either Central (REN-420014) or Offset (REN-420131) fixing form. The offset bracket is generally the preferred choice, as it makes final tightening of the bolt noticeably easier once the rail is positioned.

200/50

Dimension Code

256mm

Total Length

0.11kg

Weight

125.0–160.0mm

Clamping Range

M10

Thread Size

Stainless Steel

Material

Compatibility Warning

Renusol mounting equipment must not be used with mounting equipment from other suppliers. Doing so would inevitably void the warranty of the mounting system.

L Bracket Required — Sold Separately

This hanger bolt requires the Renusol VarioSole L Bracket M10 (Central, REN-420014, or Offset, REN-420131) to complete the rail fixing — the bracket is not included and must be ordered separately.

Key Features

Designed for Timber Substructure

Engineered specifically for anchoring into wooden purlins and rafters, with a standard screw tip suited to timber fixing.

Wide Clamping Range

Covers a module thickness clamping range of 125.0–160.0mm, suited to deeper timber sections or greater rail standoff.

Stainless Steel Construction

Manufactured from stainless steel for long-term corrosion resistance in exposed roof conditions.

M10 Thread with 70mm Thread Length

Features an 8.4mm shank with M10 thread and 70.0mm thread length, giving a solid purchase into the timber substructure.

Hexagon Head for Controlled Torque

The hexagon head allows a controlled, repeatable tightening torque during installation.

DIBt and TÜV Approved

Carries DIBt Z-14.4-555 building approval and TÜV ID 48970 certification for use in certified UK solar PV installations.

Technical Specifications

General

Part Number

REN-900192

Product Name

Hanger bolt for wooden purlins 200/50

Manufacturer

Renusol

Substructure Type

Timber / wooden purlins

Construction

Material

Stainless steel

Dimension Code

200/50

Total Length

256mm

Weight

0.11kg

Set

Pre-assembled

Fixing Specification

Screw Diameter

8.4mm; M10

Thread Length

70.0mm

Screw Head

Hexagon head

Screw Tip

Standard screw tip

Clamping Range (Module Thickness)

125.0mm – 160.0mm

Certification

MCS Certification

MCS012 IK0197/04

TÜV ID

48970

DIBt Building Approval

Z-14.4-555

Required Accessory

Bracket

Renusol VarioSole L Bracket M10 — Central (REN-420014) or Offset (REN-420131), sold separately

Frequently Asked Questions

Does this hanger bolt include the L bracket?

No. The L bracket is sold separately, in either Central (REN-420014) or Offset (REN-420131) fixing form, and is required to complete the rail connection.

What clamping range does the 200/50 bolt cover?

It covers a module thickness clamping range of 125.0mm to 160.0mm, suited to deeper timber sections or roofs needing greater standoff height.

Is this bolt suitable for steel purlins?

No. This bolt is specifically designed for timber (wooden) purlins and rafters. A separate steel-substructure hanger bolt is required for steel purlin fixings.

Which L bracket is recommended for easier installation?

The offset L bracket (REN-420131) is generally preferred, as it makes final tightening of the hanger bolt easier once the rail is in position.

What certification does this hanger bolt carry?

It carries MCS012 IK0197/04, TÜV ID 48970, and DIBt building approval Z-14.4-555.
