Renusol End Clamp+ 30 - 50mm Black and Silver

Description

Renusol End Clamp+ 30 - 50mm Black and Silver

The Renusol End Clamp+ 30 - 50mm (Part Nos: REN-420081-B Black and REN-420081 Silver) is designed to securely fix solar panels with frame thicknesses between 30mm and 50mm to mounting rails. Manufactured from aluminium with corrosion resistant steel components, these clamps provide robust, durable hold in both residential and commercial solar installations. They come as complete pre-assembled sets, ensuring ease of installation with a hexagon socket 5mm driver. Certified under TUV, ETN, and MCS standards, they provide reliable performance and comply with rigorous quality benchmarks.

• Part Nos: REN-420081-B (Black), REN-420081 (Silver)
• Material: Aluminium and corrosion resistant steel
• Module Thickness: Fits framed PV modules 30-50 mm
• Set: Complete pre-assembled clamp set
• Dimensions: 35 x 40 x 60 mm (H x W x D)
• Weight: Approx. 0.064 kg
• Maximum Torque: 12 Nm
• Driver: Hexagon socket 5mm
• Certified: TUV ID:48970; ETN BT120019; MCS012 IK0197

• Renusol End Clamp+ 30-50mm

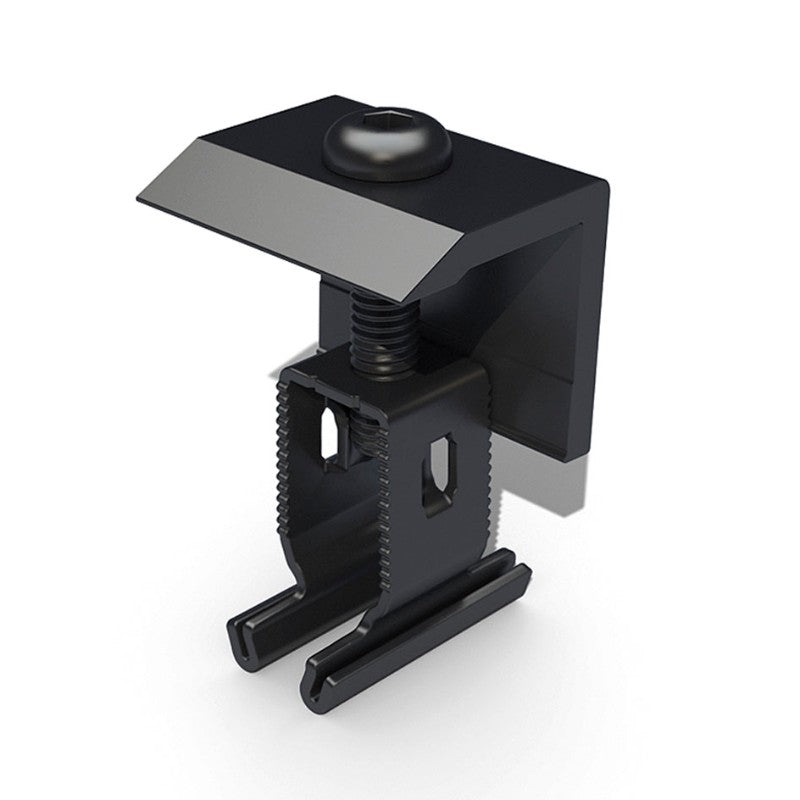

• REN-420081-B black end clamp

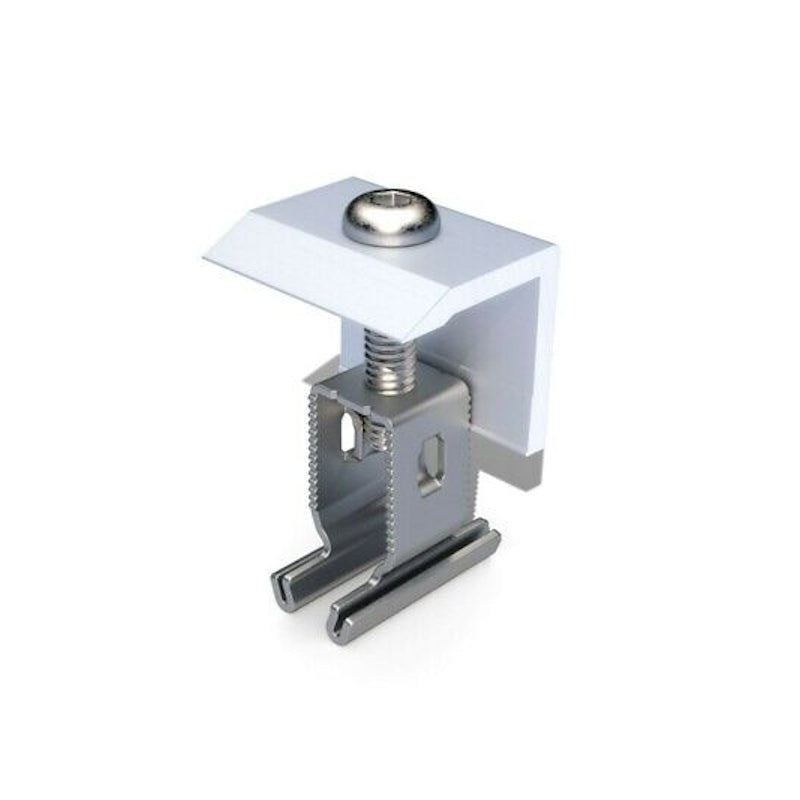

• REN-420081 silver end clamp
• solar panel mounting clamps aluminium
• framed PV module solar clamp
