The Renusol ConSole+ (Part No. R520075-K) is a fully ballasted, non-penetrative mounting system for
installing a single framed solar PV module on flat roofs (pitch up to 5°) or directly on the ground. Rather than drilling into the roof membrane, the
moulded HDPE base tray spreads the module's weight and wind load across the surface, held in place with ballast such as gravel
or paving slabs. The kit fixes the panel at a 15° tilt angle for improved solar yield and includes the base tray, aluminium and
stainless steel mounting hardware, and a U-profile clamping rail — everything needed for a single-module installation straight out
of the box.
895–1015 mm
Module Width Range
690–1180 mm
Module Height Range
Class E
Fire Rating (EN 13501-1)
⚠ No Roof Penetration — Ballast Sizing is Site-Specific
The ConSole+ resists wind uplift through ballast weight alone (gravel, paving slabs, or similar). The amount of ballast required depends on building height, site location, ground exposure, and local wind/snow loading, and must be calculated for each installation — Renusol provides pressure and suction coefficients from wind-tunnel testing on request.

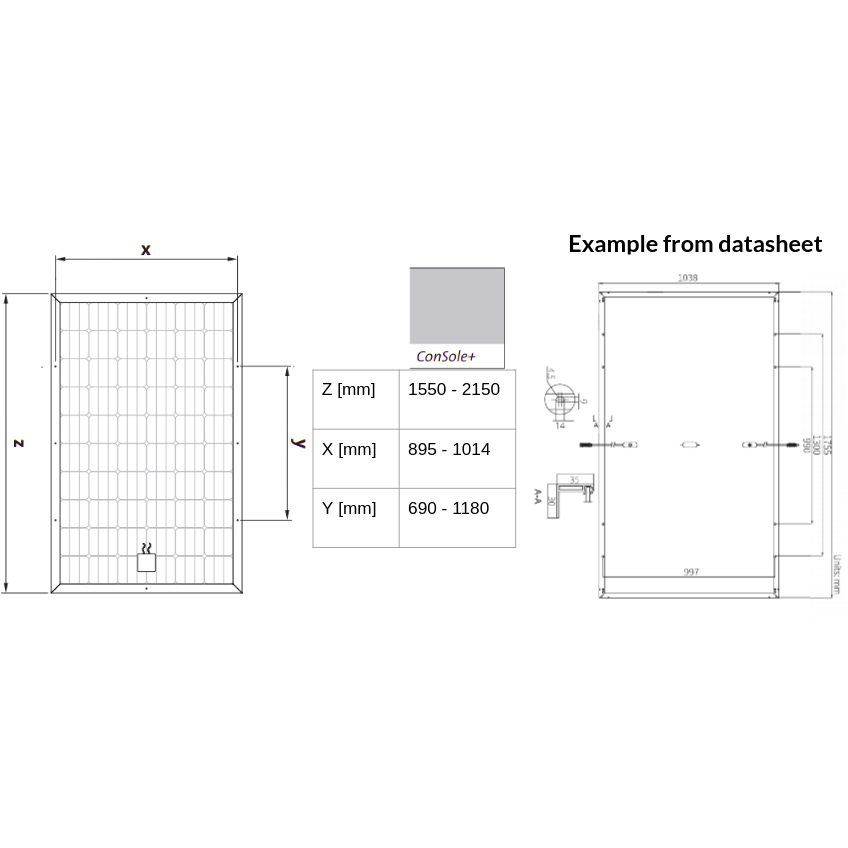

ⓘ Module Compatibility Depends on Frame Dimensions, Not Wattage
Fit is determined by the module's frame width (x) and frame height (y), not its power rating. The base R520075-K kit alone accepts modules from 895–1015 mm wide and 690–1180 mm tall. Wider modules require the R460196 elongation rail (sold separately) to extend the compatible width range up to 1160 mm.
✓ Complete Single-Module Kit
Every R520075-K kit ships with the moulded base tray, two U-profile clamping rails, and all stainless steel/aluminium fixings needed to mount one framed module — no separate rail or clamp purchase required for standard-width panels.

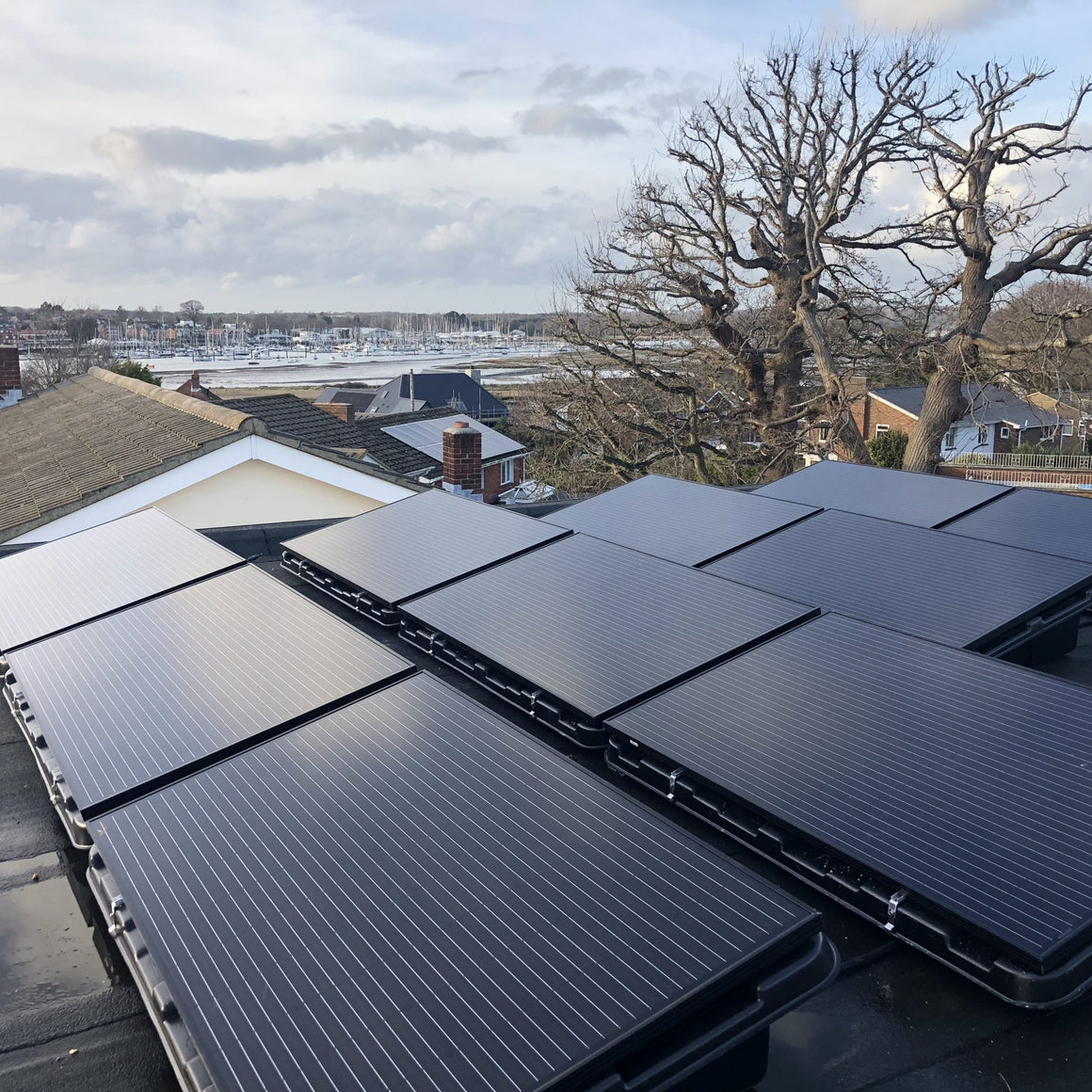

Zero Roof Penetration
Because the system is held down entirely by ballast weight, there's no need to drill or seal the roof membrane, eliminating a common source of leaks on flat-roof installs and keeping any roof warranty intact.
Load-Spreading HDPE Tray
The base tray is moulded from high-density polyethylene (HDPE), a UV-stable, weather-resistant plastic that distributes the module's weight and wind load evenly across the roof structure rather than at isolated fixing points.
Corrosion-Resistant Hardware
Mounting brackets are aluminium and fixings are stainless steel, giving the kit long-term durability against weathering without the added cost of fully stainless construction throughout.
15° Optimised Tilt
The tray geometry fixes the module at a 15° angle — enough to meaningfully improve solar yield over a flat module while keeping the system's wind profile low and stable.
Fire-Tested to European Standard
ConSole+ materials are tested for fire behaviour to DIN EN ISO 11925-2 and rated Class E under DIN EN 13501-1, giving installers documented fire-performance data for planning and compliance.

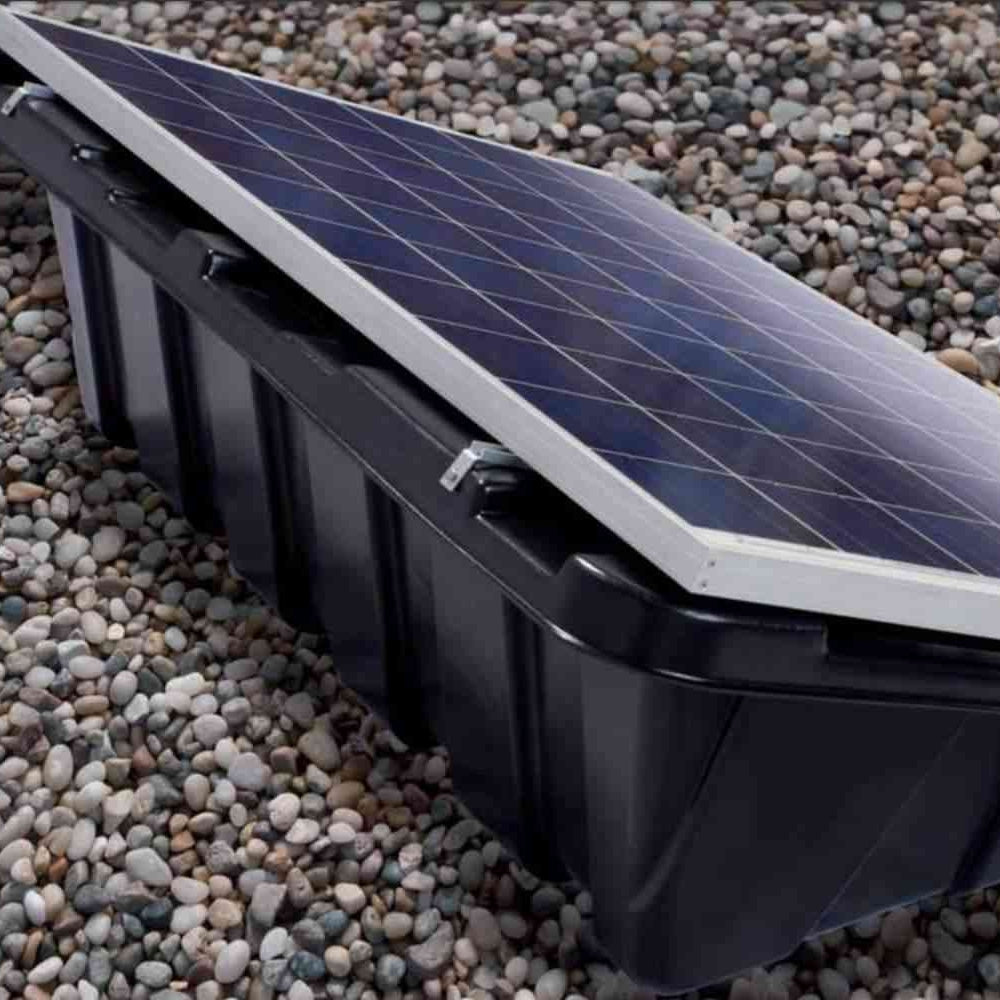

Ground or Roof, Same Kit
The identical R520075-K kit works for both flat-roof mounting and direct ground mounting, simplifying stock and specification across mixed project types such as commercial roofs, landfill sites, and open ground arrays.
| System Overview |
| Part Number |
R520075-K |
| System Name |
Renusol ConSole+ (CS+) |
| Application |
Flat roof (pitch up to 5°) or ground mount |
| Fixing Method |
Ballasted — no roof penetration |
| Tilt Angle |
15° |
| Modules Supported per Kit |
1 framed PV module |
| Dimensions & Weight |
| Kit Footprint (L x W x H) |
1730 x 1100 x 390 mm |
| Ballast Recess (A) |
1055 mm |
| Rear Support Width (ESL) |
1330 x 670 mm (min. 1600 x 905 mm) |
| Rail Clearance Height (v) |
0–350 mm |
| Kit Weight (excl. ballast) |
7.9 kg |

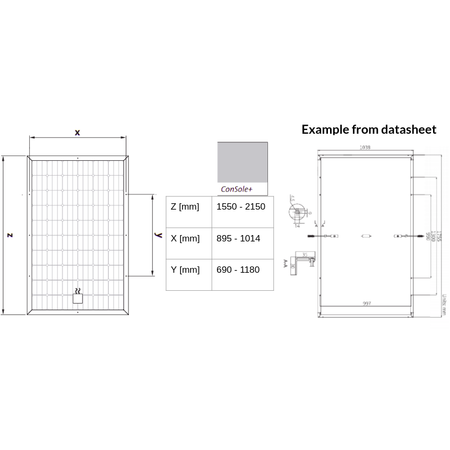

| Compatible Module Range — R520075-K Only |
| Module Width (x) |
895–1015 mm |
| Module Height (y) |
690–1180 mm |
| Module Depth (z) |
1550–2400 mm |
| Compatible Module Range — with R460196 Elongation Rail |
| Module Width (x) |
1016–1110 mm |
| Module Height (y) |
690–1180 mm |
| Module Depth (z) |
1550–2400 mm |
| Materials & Certification |
| Base Tray Material |
HDPE (high-density polyethylene) |
| Hardware Material |
Aluminium and stainless steel |
| Fire Test Standard |
DIN EN ISO 11925-2:2011-02 |
| Fire Classification |
Class E (DIN EN 13501-1:2010-01) |
| Kit Contents |

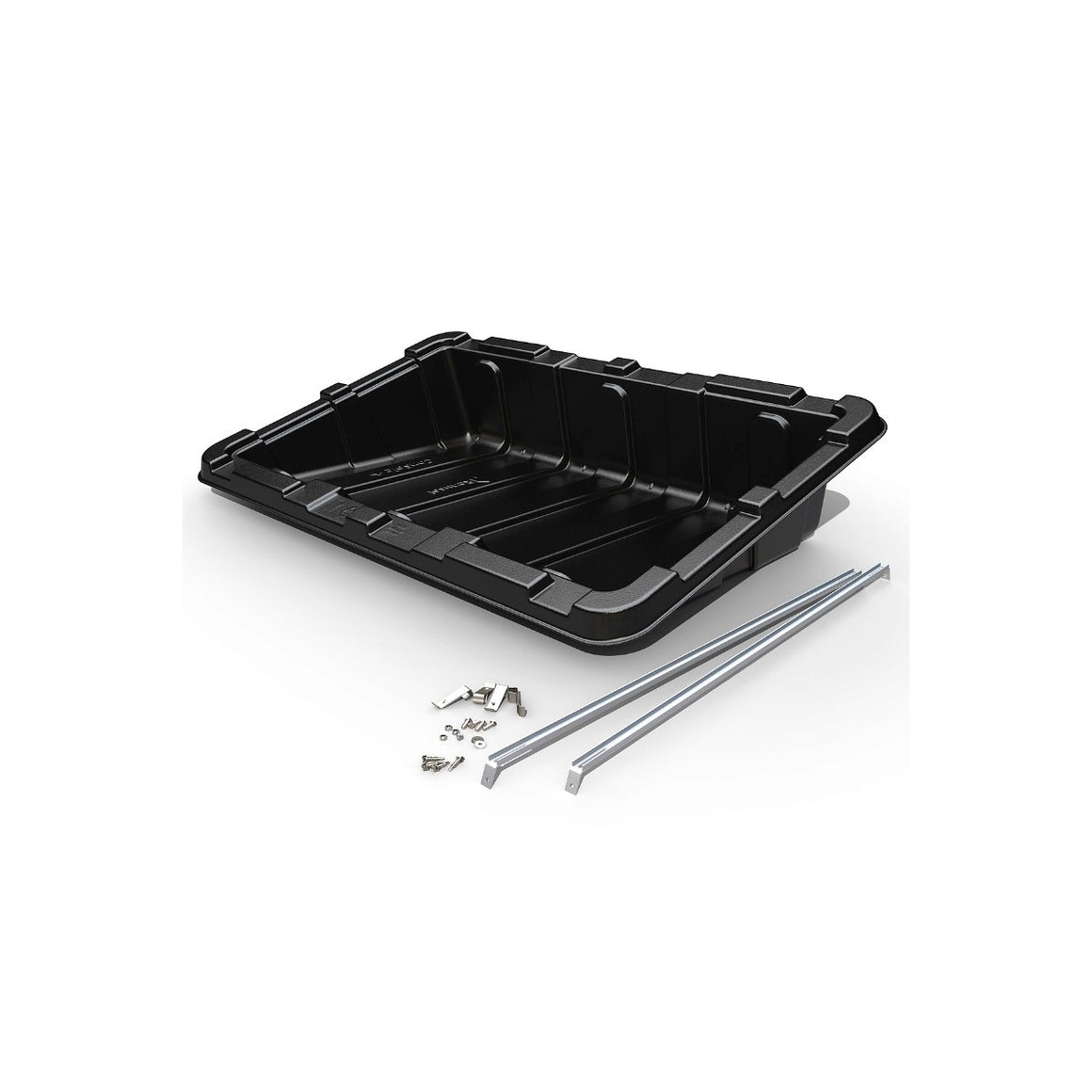

| Base Tray |
1 x ConSole+ (Art. 500075) |
| Clamping Rails |
2 x ConSole U-Profile, 1035 mm (Art. 400005) |
| Module Fixing Screws |
4 x Hexagon screw DIN 933-M6x20 A2-70 |
| Washers |
4 x Washer DIN 9021-6.4-A2 |
| Locking Nuts |
4 x Self-locking hexagon nut DIN 985-M6-A2 |
| Rail Clips |
4 x ConSole Clip |
| Tray Fixing Screws |
4 x Hexagon screw DIN 7504-ST5.5x25-A2-SW8 |
Does the ConSole+ require any roof drilling or penetration?
No. The system is held in place entirely by ballast weight — typically gravel or paving slabs — placed in the tray. This avoids penetrating the roof membrane, which is one of the main reasons the ConSole+ is used on commercial and warehouse flat roofs.
How much ballast do I need?
There's no fixed figure: the required ballast weight depends on building height, site exposure, ground/roof condition, and local wind and snow loads. Renusol calculates pressure and suction coefficients from wind-tunnel testing and provides these on request for project-specific ballast sizing.
What size solar panel fits this kit?
The standard R520075-K kit fits modules with a frame width of 895–1015 mm and a frame height of 690–1180 mm. For wider modules (up to 1110 mm), the R460196 elongation rail extends the compatible width range — this is sold separately and is not included in this kit.
Can this kit be used for ground-mounted arrays as well as roofs?
Yes. The same R520075-K kit is suitable for both flat-roof and direct ground mounting, including open sites and landfill or brownfield installations, provided ballast is sized appropriately for the location.
What's included in the box?
Each kit contains one HDPE base tray, two 1035 mm U-profile clamping rails, four M6x20 hexagon screws, four washers, four self-locking hexagon nuts, four ConSole clips, and four ST5.5x25 tray fixing screws — everything needed to secure a single framed module, with no additional rails or clamps required for standard-width panels.
What fire rating does the ConSole+ have?
The tray materials are tested to DIN EN ISO 11925-2:2011-02 and achieve a Class E fire classification under DIN EN 13501-1:2010-01.
