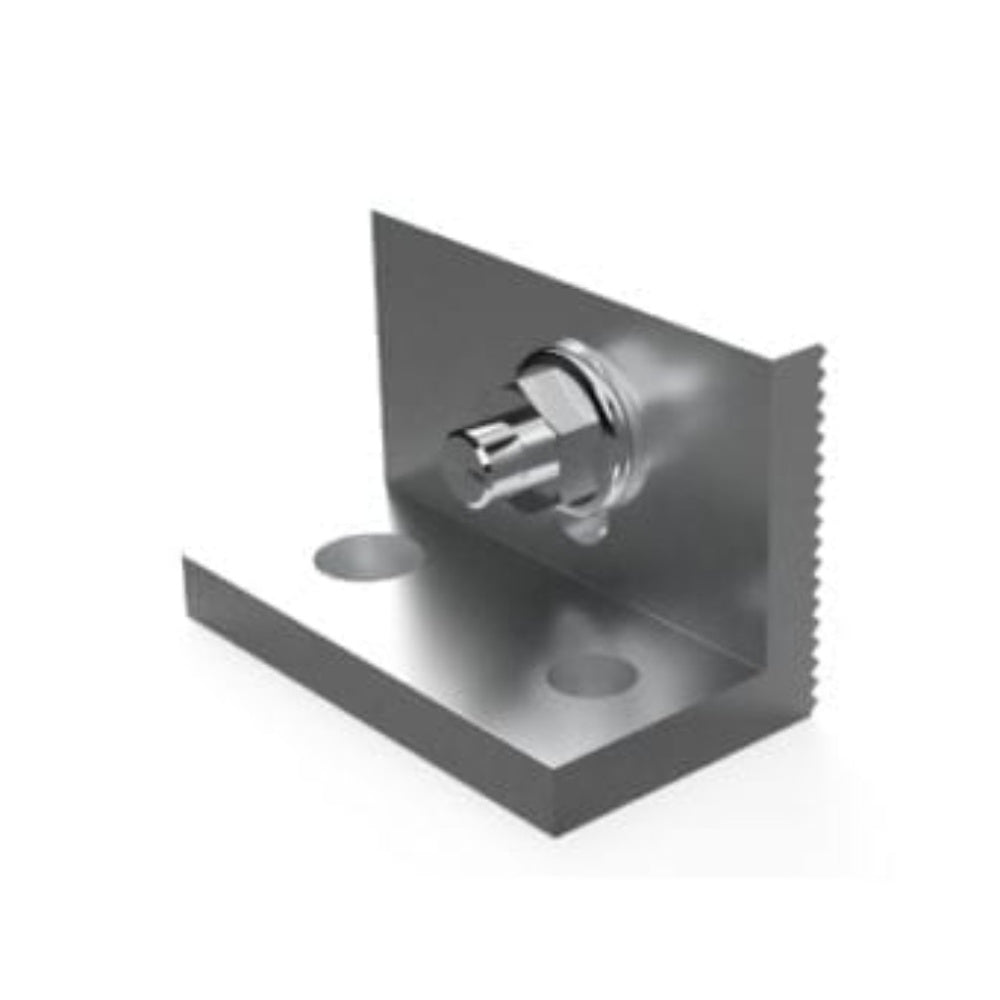

The Renusol Bracket IFP M8/M10 (Part No: REN-420024) is a rail fixing bracket designed to connect a Renusol VS+ mounting rail to a roof's pre-installed Integrated Fixing Point (IFP) hardware — a system of roof-integrated anchor points fitted during construction or re-roofing, rather than added afterwards as separate roof hooks. Manufactured from stainless steel and aluminium, the bracket is supplied as a single-piece set.
The bracket fixes to the IFP anchor point using the M10 screw supplied with the IFP hardware itself, then accepts the Renusol mounting rail via its pre-assembled hammerhead bolt fixing — giving installers a straightforward way to connect standard Renusol VS+ rail to roof-integrated fixing systems.
Stainless Steel + Aluminium
Material
IFP Compatible
Application
Compatibility Warning
Renusol mounting equipment must not be used with mounting equipment from other suppliers. Doing so would inevitably void the warranty of the mounting system.
Requires Compatible Roof-Integrated Fixing Hardware
This bracket is designed for use with roof-integrated fixing point (IFP) hardware, a category of pre-installed roof anchor systems fitted by a specialist roof-fixing manufacturer during construction or re-roofing. The bracket connects to the M10 screw supplied with that hardware — the IFP anchor point itself is a separate, roof-fixing-system product and is not included. Before tightening, confirm the Renusol mounting rail will align across all brackets in the run.
Key Features
Connects VS+ Rail to Roof-Integrated Fixings
Provides a bridging connection between standard Renusol VS+ mounting rail and roof-integrated fixing point (IFP) anchor hardware.
Stainless Steel and Aluminium Construction
Built from stainless steel and aluminium for reliable, long-term corrosion resistance outdoors.
Pre-Assembled Hammerhead Fixing
Comes with pre-assembled hammerhead bolts for connecting the mounting rail, speeding up on-site assembly.
M10 Anchor Connection
Fixes to the IFP anchor point using the M10 screw supplied with the IFP hardware, requiring no additional fixings for that connection.
Compact Single-Piece Set
Supplied as a single-piece bracket set, simplifying stock-keeping for installers working with roof-integrated fixing systems.
Alternative Standard Bracket Option
Renusol has confirmed that a standard M10 L bracket can also be used in place of this dedicated IFP bracket, giving installers flexibility depending on stock availability.
Technical Specifications
General
Product Name
Bracket IFP M8/M10
Application
Connects VS+ rail to roof-integrated fixing point (IFP) hardware
Construction
Material
Stainless steel; aluminium
Dimensions
40 × 35 × 62mm
Fixing
IFP Anchor Fixing
M10 screw (supplied with IFP hardware, not included)
Frequently Asked Questions
Does this bracket include the roof-integrated fixing point (IFP) anchor itself?
No. The bracket connects to pre-installed IFP anchor hardware using the M10 screw supplied with that hardware — the anchor point itself is a separate roof-fixing-system product and is not included with this bracket.
What does 'M8/M10' refer to in the product name?
The bracket uses an M8 screw diameter for its own construction, while connecting to the IFP anchor point via the M10 screw supplied with that hardware.
Can I use a standard M10 L bracket instead of this IFP bracket?
Yes. Renusol has confirmed that a standard M10 L bracket can be used in place of this dedicated IFP bracket where preferred.
What should I check before tightening the M10 screw?
Before final tightening, confirm the Renusol mounting rail will fit across all brackets in the same line, since adjustment is easier before the fixing is fully tightened.
How is the mounting rail attached to this bracket?
The rail is fixed using the bracket's pre-assembled hammerhead bolts, in the same way as other Renusol VS+ rail connections.
