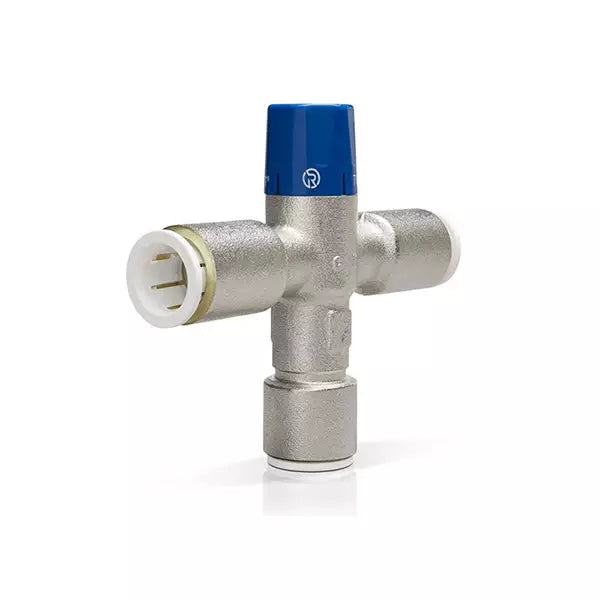

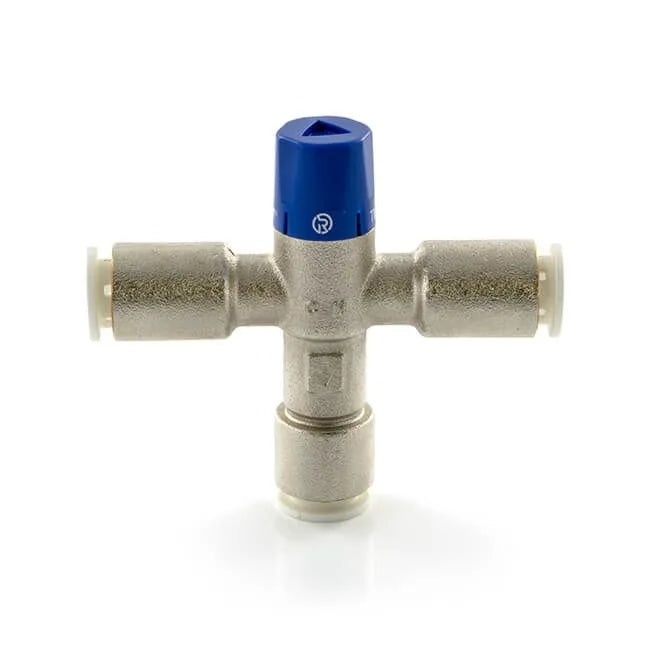

Reliance Easifit Thermostatic Mixing Valve TMV 2/3 - 15mm

Description

The Reliance Easifit Thermostatic Mixing Valve (15mm, code HEAT155010) blends hot and cold water to a safe, stable outlet temperature, removing the risk of scalding at basins, baths, and showers. Manufactured by Reliance Valves (RWC) under the Ausimix product family, it uses JG Speedfit push-fit connections for tool-free installation and is compact enough to fit the tight spaces typical of pedestal basins and wall-hung sanitaryware. It is approved to both the TMV2 and TMV3 schemes, covering domestic and higher-risk healthcare/public-sector installations respectively.

15mm

Push-Fit Connection

TMV2 & TMV3

Scheme Approved

1 L/min

Minimum Flow Rate

10:1

Max Pressure Differential

41°C

Factory Temperature Setting

5 Year

Manufacturer Guarantee

2-in-1 Design with Integral Check Valves

This is the 2-in-1 configuration, incorporating check valves on both hot and cold inlets as well as strainers that protect both the check valves and the main thermostatic element from debris — reducing the risk of cross-flow contamination between hot and cold supplies.

Functions Down to 1 Litre per Minute

The 15mm valve maintains accurate temperature control at flow rates as low as 1 L/min, which the manufacturer notes is among the lowest in the industry — a genuine advantage when paired with modern water-saving taps and showerheads that reduce flow at the point of use.

Tool-Free JG Speedfit Push-Fit Ends

Push-fit connections mean the valve installs and demounts without tools, cutting installation and servicing time compared with flat-faced union alternatives, while still being suitable for PEX, polybutylene, and copper pipe (to BS7291 and BSEN1057).

TMV2 and TMV3 Approved

Meeting both the TMV2 scheme (domestic and general use) and the more stringent TMV3 scheme (healthcare and higher-risk settings) means this single valve covers the great majority of UK anti-scald compliance requirements, and it is compliant with NHS and HTM04-01-D08 regulations.

Scale-Resistant Piston Technology

A high-performance polymer piston and Viton seals give the valve resistance to scale build-up and other system contaminants, helping it hold accurate temperature control for longer in hard water areas.

Compact, Concealment-Friendly Footprint

At 97mm high, 110mm wide, and just 25mm deep, the valve is ultra-compact and lightweight, making it far less obtrusive than bulkier TMVs when installed beneath pedestal or wall-hung basins.

General
Brand	Reliance Valves (RWC) / Ausimix
Product Code	HEAT155010
Product Range	Easifit Thermostatic Mixing Valve, 2-in-1
Connection Size	15mm push-fit (JG Speedfit)
EAN	665628059641
Temperature Control (TMV2 / TMV3)
Factory Temperature Setting	41°C (both schemes)
Working Temperature Range	38°C – 46°C (both schemes)
Maximum Adjustable Temperature Range	30°C – 48°C (both schemes)
Hot Supply Temperature (TMV3)	55°C – 65°C (max 85°C at 7 bar for push-fit)
Hot Supply Temperature (TMV2)	55°C (max 85°C at 7 bar for push-fit)
Cold Supply Temperature (TMV3)	5°C – 25°C
Cold Supply Temperature (TMV2)	5°C – 20°C
Minimum Hot-to-Mix Differential	10°C
Temperature Stability	±2°C
Pressure & Flow
Maximum Static Pressure	10.0 bar
Maximum Working Pressure	5.0 bar (datasheet); 7.0 bar at 85°C per WRAS push-fit approval
Minimum Working Pressure (TMV3)	0.2 bar
Minimum Working Pressure (TMV2)	0.5 bar
Maximum Pressure Inlet Differential	10:1
Minimum Flow Rate, 15mm	1 L/min
Construction
Body & Fittings	DZR brass, nickel plated
Spring	Stainless steel
Strainers	Stainless steel
Handles	ABS plastic
Body O-Ring	Viton
Piston	High-performance polymer
Cover Cap	ABS plastic
Dimensions (Push-Fit, mm)
Height (A)	97
Width (B)	110
Depth (C)	25
Connection Size (D)	15
Compliance & Servicing
Approvals	TMV2, TMV3, WRAS approved
Regulatory Compliance	NHS and HTM04-01-D08
Pipe Compatibility	PEX (BS7291 pt.3), polybutylene (BS7291 pt.2), copper (BSEN1057:2006)
Guarantee	5 years

What is the difference between TMV2 and TMV3?

TMV2 covers general domestic and commercial use, while TMV3 is the more stringent scheme required in healthcare and other higher-risk settings, with tighter testing for fail-safe operation if the cold supply fails. This valve is approved to both, so it can be specified for either type of installation.

Can this valve be used with plastic pipe?

Yes. The push-fit HEAT155010 is compatible with PEX pipe (BS7291 part 3), polybutylene pipe (BS7291 part 2), and copper pipe (BSEN1057:2006). When used with PEX pipe, a JG Speedfit Superseal Insert must be fitted to maintain the pipe's roundness and add strength to the joint.

What temperature does the valve deliver?

It is factory set to 41°C on both the TMV2 and TMV3 configurations, with a working range of 38°C–46°C and a maximum adjustable range of 30°C–48°C, giving installers flexibility to fine-tune the outlet temperature to the specific application.

Why is it called a 2-in-1 valve?

The 2-in-1 designation refers to the check valves integrated on both hot and cold inlets, along with strainers protecting them — distinct from Reliance's 4-in-1 range, which additionally includes an isolating valve and test port for monitoring system pressure and temperature.

Does it need any special tools to fit or service?

No. The JG Speedfit push-fit connections allow the valve to be fitted and removed without tools — simply push the pipe fully home to connect, or press back the collet to release it for servicing or replacement.
