Pylon US5000 Bracket Set

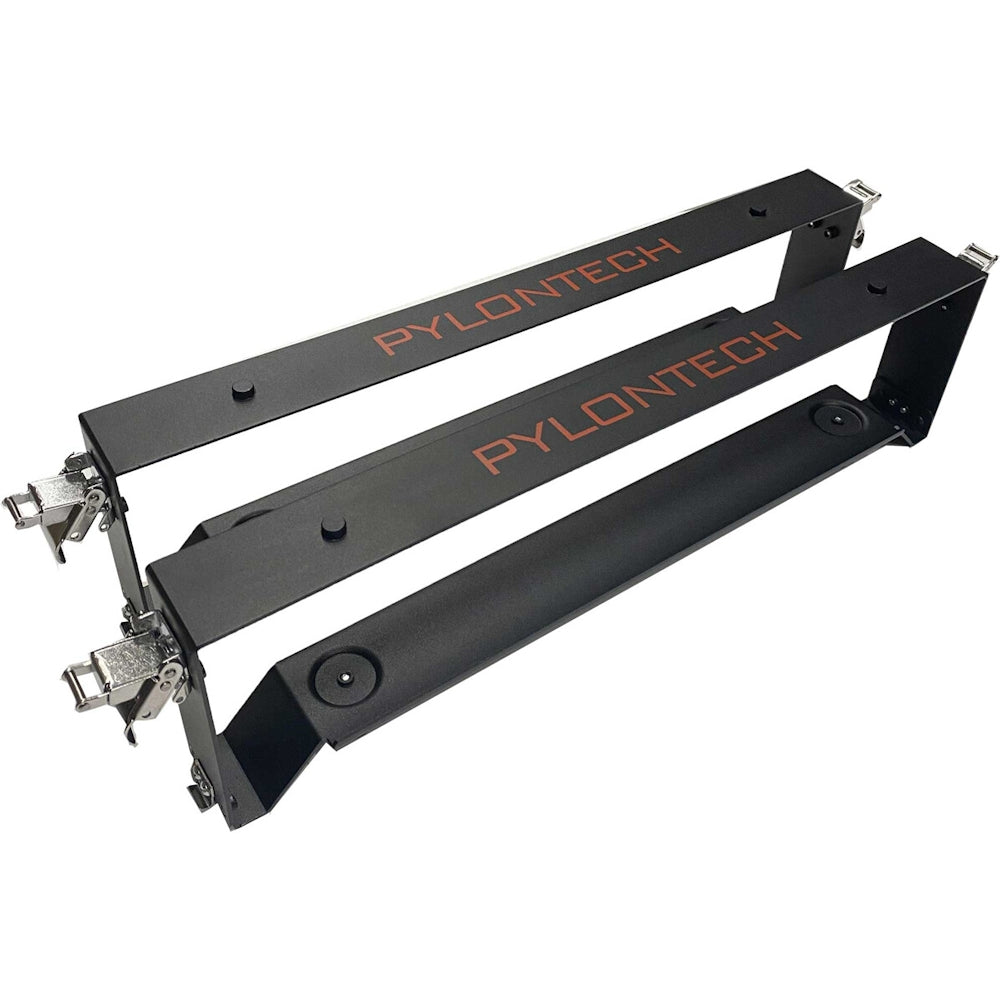

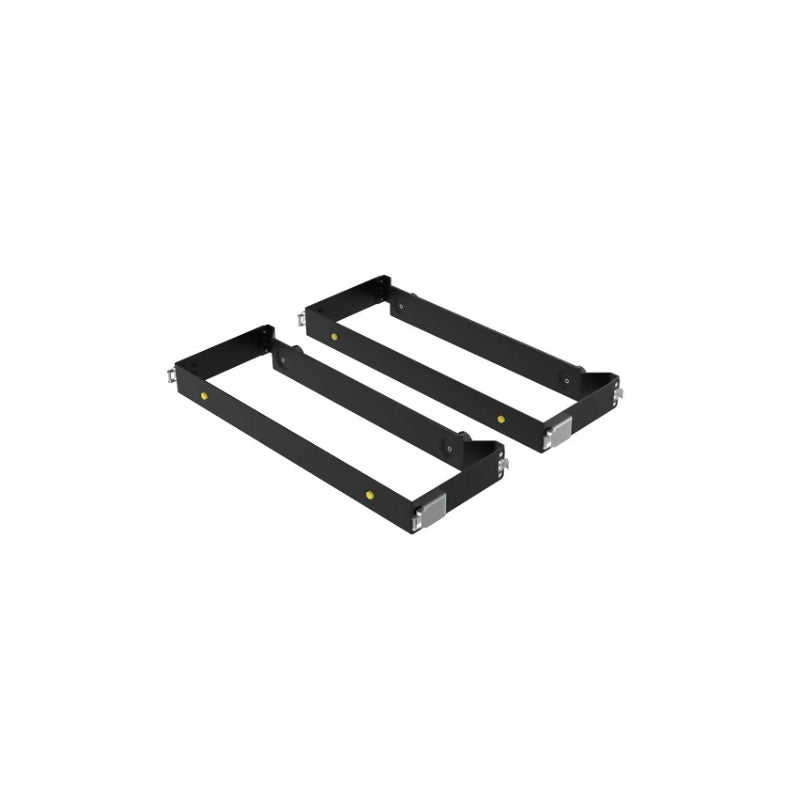

The 2 x Brackets – Pylon US5000 is an official Pylontech stackable bracket set designed to safely support and stack one US5000 4.8kWh 48V LiFePO₄ battery module.

Product Description

This bracket kit is specifically designed for the Pylontech US5000 series and provides a stable base and alignment for vertical stacking of the battery modules. Each set includes two metal brackets that attach to the ends of a US5000 module, allowing it to sit securely on another module or suitable surface while maintaining airflow around the batteries.

Key Features

• Official accessory: Manufacturer‑approved bracket set for Pylontech US5000 / US5000‑1C batteries, ensuring correct fit and load support.
• Safe stacking: Enables secure vertical stacking of multiple US5000 modules, maintaining alignment and reducing movement risk.
• Ventilation spacing: Creates the correct gap between stacked batteries to promote air circulation and temperature management.
• One set per module: One pair of brackets is required for each additional US5000 battery in a floor‑standing stack.

Technical Details

• Product name: 2 x Brackets – Pylon US5000 / Pylontech Bracket Set for US5000.
• Manufacturer: Pylontech.
• Manufacturer part number (MPN): BW0PLUSUS5KBZJ01.
• Approx. weight: 2.37kg per bracket set.
• Material: Powder‑coated steel for robust structural support.
• Compatibility: Pylontech US5000 / US5000‑1C 4.8kWh 48V modules only (not suitable for US2000/US3000 ranges).

System & Installation Notes

• Scope of supply: Two brackets (left and right) to support a single US5000 battery module within a stack.
• Typical stack height: Commonly used for stacks of up to four US5000 modules when installed to Pylontech guidelines.
• Application: Ideal for floor‑standing battery stacks where no 19″ rack is used, providing mechanical stability and correct spacing.
