Pump House Flexi Lite Slab & Foot Kit for Heat Pumps | FF-UC3

Description

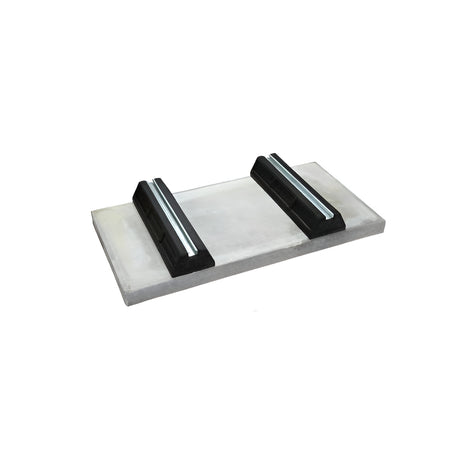

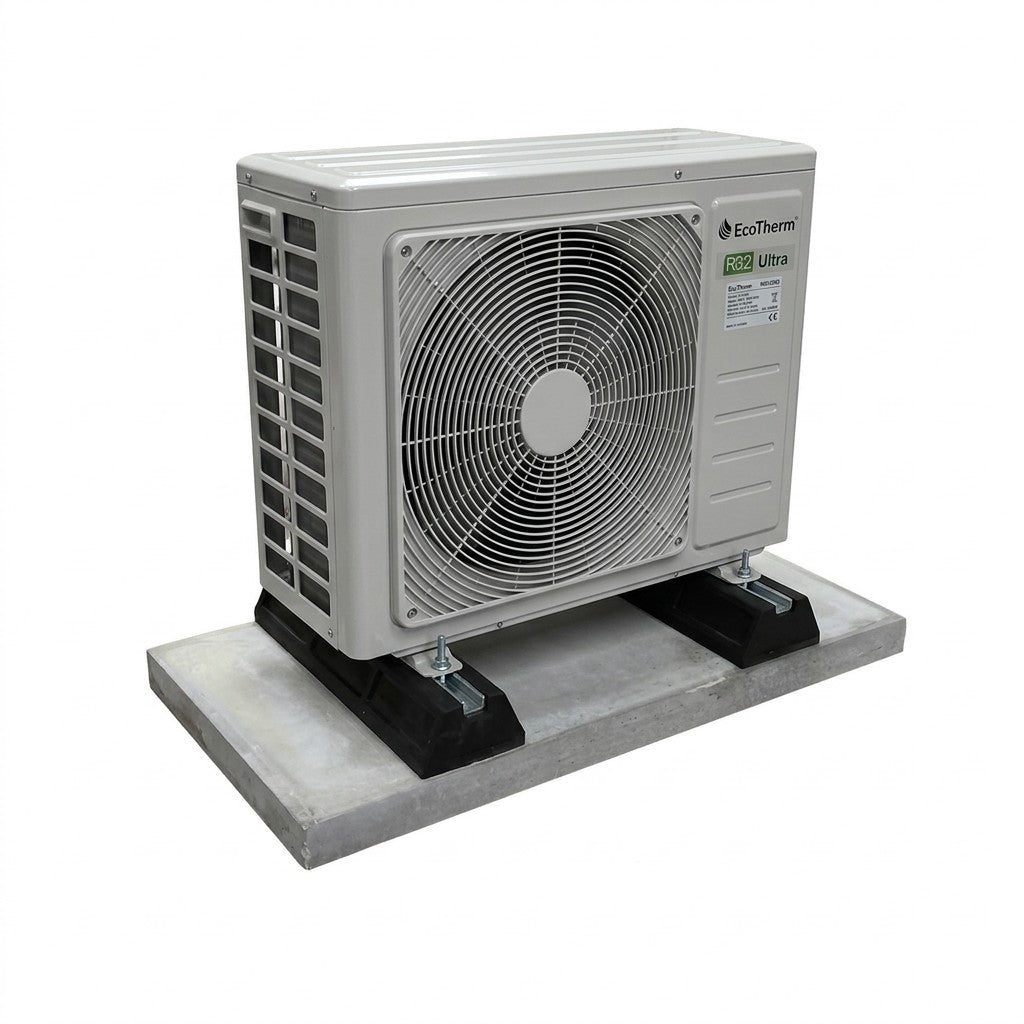

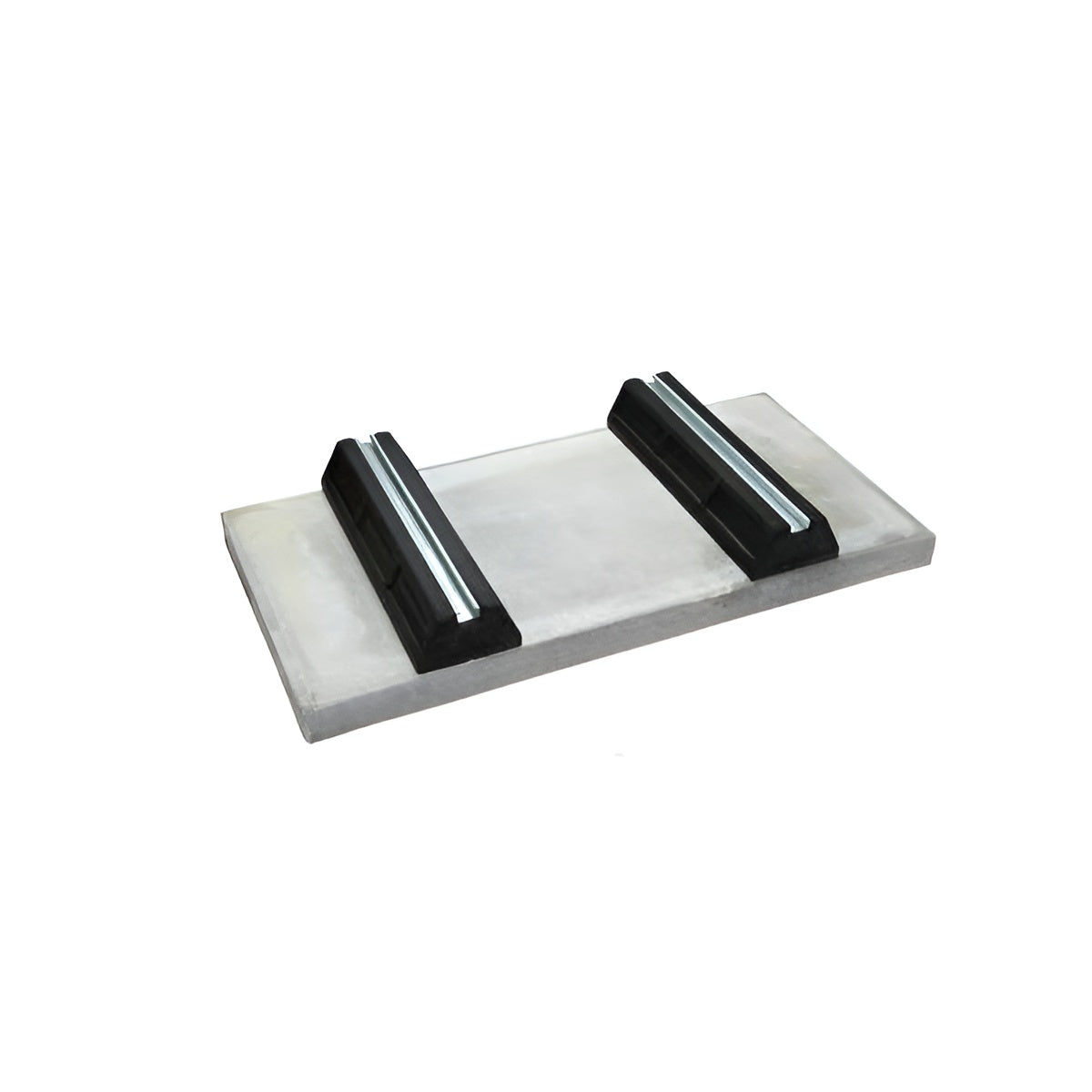

The Pump House Flexi Lite slab and foot kit is a low-cost floor mount for air source heat pumps and air conditioning units. It avoids the cost and time of building a concrete base, can be assembled in minutes and comes complete with Flexi rubber mounting feet.

The FF-UC3 kit includes a slab, two 600 mm Flexi feet with 41 mm strut, four fixing plates and fixings, and it is rated to a safe working load of 600 kg. It suits most brands of domestic air source heat pump and air conditioning unit, with a fixing pack to secure the feet to the slab and another to secure the heat pump to the feet.

600 kg

Safe working load

27.5 kg

Kit weight

1200 mm

Kit length

600 mm

Kit width

175 mm

Kit height

2 x 600 mm

Flexi feet included

⚠ Check the load before you install

The kit is rated to a safe working load of 600 kg. Confirm the weight of your heat pump or outdoor unit, and secure it to the feet with the fixing kit.

⚠ Plan drainage and clearances

Air source heat pumps produce condensate during operation and defrost. Check your heat pump manufacturer's manual for the required clearances, drainage and base requirements before positioning the slab.

ℹ What is in the box

One Flexi slab, two 600 mm Flexi feet with 41 mm strut, four fixing plates with fixings, and installation instructions.

Key features

🏗️

No concrete slab needed

Floor mounts a heat pump or air conditioning unit without the high cost and time of building a concrete base.

⏱️

Assembled in minutes

Simple to construct and easy to transport and locate, with minimal preparation on site.

💪

600 kg safe working load

A safe working load of 600 kg gives comfortable margin for domestic outdoor units.

♻️

Flexi rubber feet

Recycled rubber Flexi feet give built-in vibration damping under the unit.

🔩

Fixing packs included

A fixing pack secures the feet to the slab and a fixing kit secures the heat pump to the feet.

🌍

Suits most brands

Designed to suit most brands of domestic air source heat pump and air conditioning unit.

Technical specification

Product

Brand

Pump House

Part code

FF-UC3

Description

Flexi slab kit with 2 x 600 mm feet and 41 mm strut

Applications

Floor mounting of air source heat pumps and air conditioning units

Dimensions and rating

Width

600 mm

Height

175 mm

Length

1200 mm

Weight

27.5 kg

Safe working load

600 kg

Kit contents

Included

Flexi slab, 2 x Flexi feet, 4 x fixing plate, fixings, installation instructions

Frequently asked questions

Will it fit my heat pump?

The kit is designed to suit most brands of domestic air source heat pump and air conditioning unit. Check the footprint and mounting hole spacing in your unit's installation manual against the 600 mm wide by 1200 mm long kit.

Do I still need a concrete base?

No. The Flexi Lite kit is designed to avoid the cost and time of constructing a concrete base, and can be assembled in minutes.

What weight can it carry?

The safe working load is 600 kg for the FF-UC3 kit.

Are the fixings included?

Yes. The kit includes a fixing pack to secure the feet to the slab and a fixing kit to secure the heat pump to the feet, plus four fixing plates.

Can I use it for air conditioning units too?

Yes. It is designed for floor mounting both air source heat pumps and air conditioning units.
