Panasonic Aquarea Smart Cloud Wi-Fi Adapter for H Generation

Description

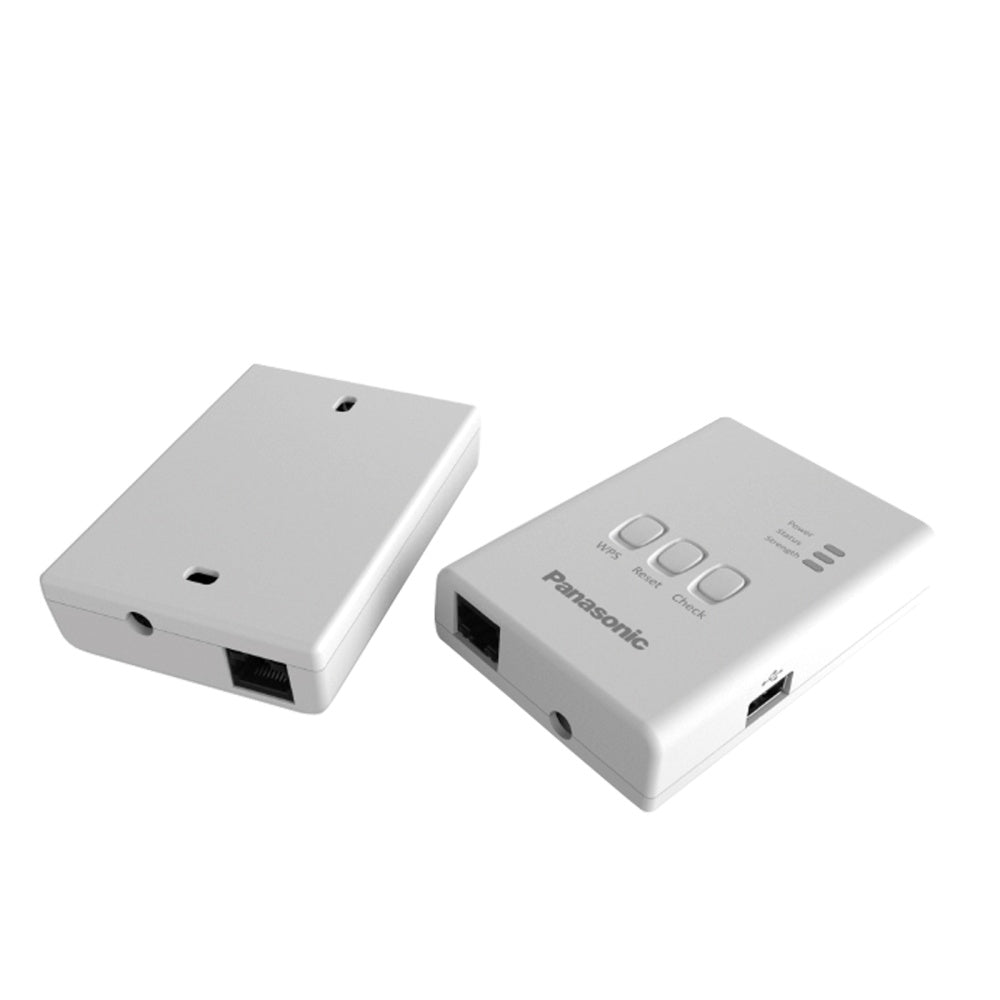

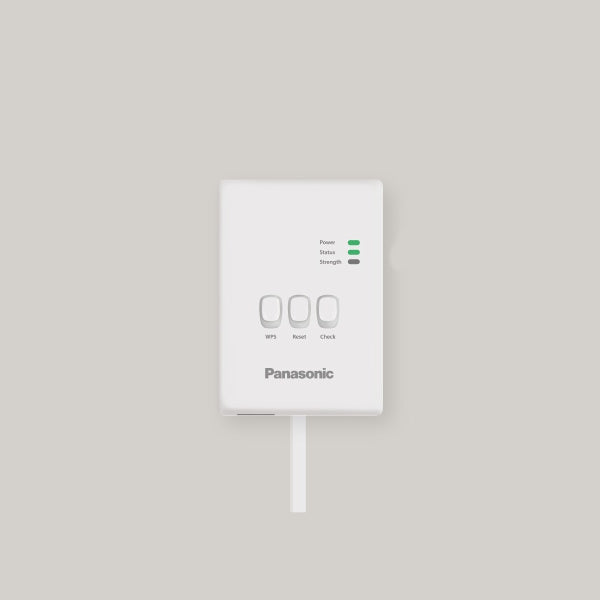

The Panasonic CZ-TAW1C is the Aquarea Smart Cloud Wi-Fi adapter for H Generation Aquarea heat pumps (and onwards), connecting the system to Panasonic's cloud platform for homeowner app control and installer remote maintenance. It plugs into the heat pump's dedicated CN-CNT port and links to the home network via Wi-Fi or wired LAN.

H Generation+

Compatibility

Wi-Fi / LAN

Connection

Up to 2 Zones

Control

2 Years

Warranty

Smart Cloud

Homeowner app

Service Cloud

Installer platform

Can extend the heat pump warranty

Panasonic state that fitting and maintaining this adapter through an accredited installer can enhance the air source heat pump warranty length, subject to terms and conditions — worth confirming with your installer at the point of purchase.

CN-CNT port availability

The CZ-TAW1C connects via the Aquarea's dedicated CN-CNT port, available only on H and J Generation systems. If your heat pump is already integrated into a BMS project, this port may already be in use — check before ordering.

Key features

Full remote control

Homeowners can switch the system on/off, adjust house and DHW temperatures, and set schedules from anywhere with an internet connection, via the Aquarea Smart Cloud app or browser.

Installer remote maintenance

The Aquarea Service Cloud gives accredited installers remote access to diagnostics, error codes and system setup — reducing the need for site visits to resolve straightforward faults.

Up to two heating zones

Supports monitoring and control across up to two independent heating zones, matching systems with underfloor heating and radiators on separate circuits.

Energy consumption monitoring

Tracks power consumption estimates and operation history, giving homeowners visibility into running costs and system behaviour over time.

IFTTT integration

Supports IFTTT (If This Then That) automation — trigger actions based on other apps, services or devices, such as voice assistant integration or automatic heat-mode activation.

Flexible network connection

Connects to the home router via Wi-Fi or wired LAN, giving installers flexibility over where the adapter is sited relative to the indoor unit.

Technical specification

Model code	CZ-TAW1C
Function	Wi-Fi/LAN adapter connecting Aquarea to Smart Cloud and Service Cloud
Compatibility	Panasonic Aquarea H Generation onwards (also compatible with J Generation)
Connection point	Aquarea CN-CNT port
Home network connection	Wireless or wired LAN
Temperature sensor	Can use the remote controller's built-in sensor
Zone control	Up to 2 heating zones
Functions	On/off, remote operation, house temperature, DHW temperature, error codes, scheduling
Platform access	Aquarea Smart Cloud (homeowner), Aquarea Service Cloud (installer, with user consent)
Compatible apps	Android and iOS
Warranty	2 years

What's in the box

• 1 × Panasonic CZ-TAW1C Wi-Fi/LAN adapter
• Manufacturer installation instructions

Frequently Asked Questions

Which Aquarea generations is this compatible with?

H Generation onwards — the CZ-TAW1C connects via the CN-CNT port found on H and J Generation Aquarea systems.

Does this require a Panasonic ID?

Yes — homeowners need to register a free Panasonic ID at the Aquarea Smart Cloud website to control and monitor the system remotely.

Can my installer access the system remotely too?

Yes, with your consent — the Aquarea Service Cloud gives your installer remote access to diagnostics, error codes and system setup, which can speed up fault resolution.

Where is the adapter fitted?

For All-in-One or bi-bloc systems, near or inside the indoor unit. For monobloc systems, inside the house. Refer to the installation instructions for the exact location on your specific Aquarea model.

Does this affect my BUS grant eligibility?

No — genuine Panasonic accessories fitted as part of an MCS-certified install do not affect grant eligibility; they're part of the overall system design.
