Panasonic Aquarea M Series Control Module — Three-Phase 9kW to 16kW

Description

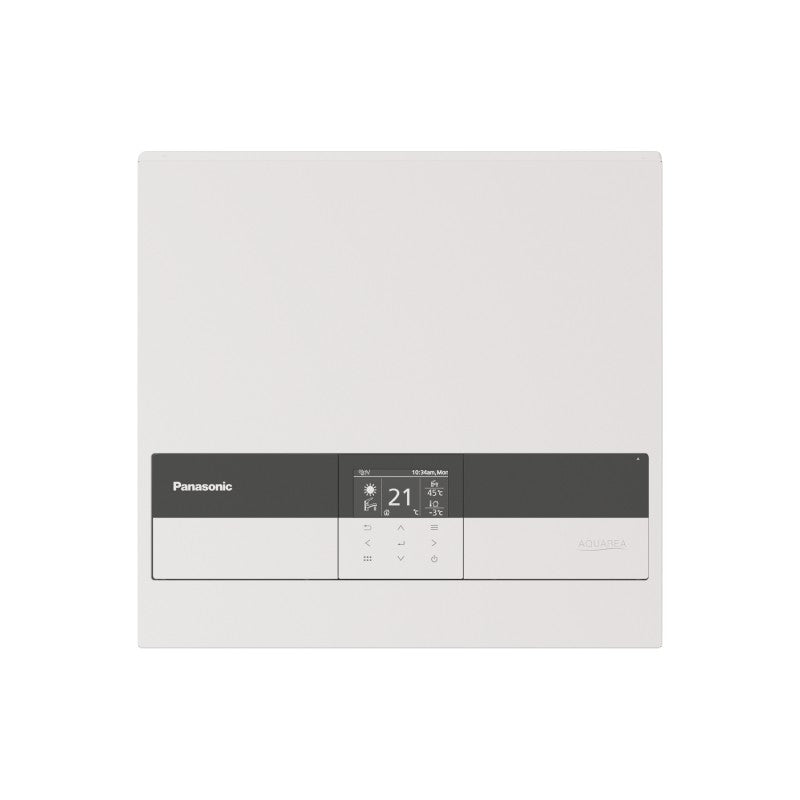

The Panasonic WH-CME8 is the three-phase Control Module for the Aquarea M Series T-CAP R290 range, matched to 9 kW, 12 kW and 16 kW three-phase outdoor units. It upgrades a standalone outdoor unit to enhanced functionality — providing the centralised electrical interface, higher-capacity backup resistance management and communication link needed for two-zone control, buffer tank integration and bivalent boiler backup on larger residential and light commercial installations.

Three-Phase

Electrical supply

9–16 kW

Compatible capacities

Up to 9 kW

Backup resistance support

Wi-Fi Built In

Connectivity

2-Zone

Enhanced capability

M Series T-CAP

Platform

When to choose the Control Module over the simple controller

Choose the WH-CME8 Control Module where your system needs two-zone heating control, a buffer tank connection, solar integration, or bivalent boiler backup. For straightforward single-zone installs, the simpler CZ-RTW2TAW1C wired controller is sufficient on its own.

Match the module to your outdoor unit's capacity and phase

The WH-CME8 covers three-phase 9–16 kW outdoor units. Larger three-phase systems from 20 kW upward need the WH-CME8L Control Module instead. For single-phase 9/12 kW outdoor units, see the WH-CME5 listing.

Key features

Centralised electrical management

Generates the backup electrical resistance supply, manages the system's main power feed, and handles communication with the outdoor unit — all from one integrated module.

Supports backup resistance up to 9 kW

Higher-capacity backup resistance support than the single-phase WH-CME5, sized for the demands of larger three-phase installations.

Built-in Wi-Fi adapter

Connects directly to Aquarea Smart Cloud, Panasonic Comfort Cloud, and Aquarea Service Cloud — no separate network adaptor accessory required.

Two-zone control

Unlocks independent control of two heating zones — for example underfloor heating and radiators running at different flow temperatures.

Buffer tank & bivalent integration

Supports connection to a buffer tank and bivalent boiler backup configurations, extending the system design options for larger properties.

Suited to residential and light commercial

Covers the 9–16 kW three-phase capacity band — a common fit for larger homes, small multi-occupancy buildings, and light commercial applications.

Technical specification

Model code	WH-CME8
Electrical supply	Three-phase
Compatible outdoor unit capacities	9 kW, 12 kW and 16 kW
Compatible outdoor units	WH-WXG09ME8, WH-WXG12ME8, WH-WXG16ME8
Backup resistance support	Up to 9 kW
Recommended fuse	30 A
Minimum power cable section	3 × 4.0 mm²
Connection cable to outdoor unit	2 × 0.75 mm²
Connectivity	Built-in Wi-Fi adapter — Aquarea Smart Cloud, Comfort Cloud, Aquarea Service Cloud
CN-CNT ports	2
Enhanced functions supported	Two-zone control, buffer tank connection, bivalent boiler backup
Compatible remote controller	CZ-RTW2TAW1C

What's in the box

• 1 × Panasonic WH-CME8 three-phase Control Module
• Manufacturer installation instructions

What you'll also need (sold separately)

• Matched M Series T-CAP outdoor unit — WH-WXG09ME8, WH-WXG12ME8 or WH-WXG16ME8
• CZ-RTW2TAW1C simple wired controller (room interface)
• DHW cylinder — Panasonic stainless or enamelled tank, or suitable third-party cylinder
• PAW-3WYVLV-HW 3-way valve for DHW switching
• Buffer tank and associated sensor, if included in your system design

Frequently Asked Questions

Is this compatible with my outdoor unit?

The WH-CME8 is matched to three-phase 9 kW, 12 kW and 16 kW M Series T-CAP outdoor units (WH-WXG09ME8, WH-WXG12ME8, WH-WXG16ME8). Check your outdoor unit's phase and capacity before ordering.

What's the difference between WH-CME8 and WH-CME8L?

Both are three-phase Control Modules, but the WH-CME8 covers 9–16 kW outdoor units while the WH-CME8L covers the larger 20–30 kW commercial capacities. Match the module to your specific outdoor unit.

Do I still need the simple wired controller as well?

Yes — the Control Module handles the electrical and hydraulic management side, while the CZ-RTW2TAW1C (or an equivalent room controller) remains the user-facing interface for day-to-day operation.

What if my outdoor unit is single-phase?

Use the WH-CME5 Control Module instead — it's designed for single-phase 9 kW and 12 kW outdoor units. The WH-CME8 is three-phase only.

Do I need to be MCS-registered to install this?

The system can be installed by any competent heating engineer, but to claim the UK Boiler Upgrade Scheme grant the install must be carried out by an MCS-certified installer.
