Panasonic Aquarea M Series Control Module — Single-Phase 9kW & 12kW

Description

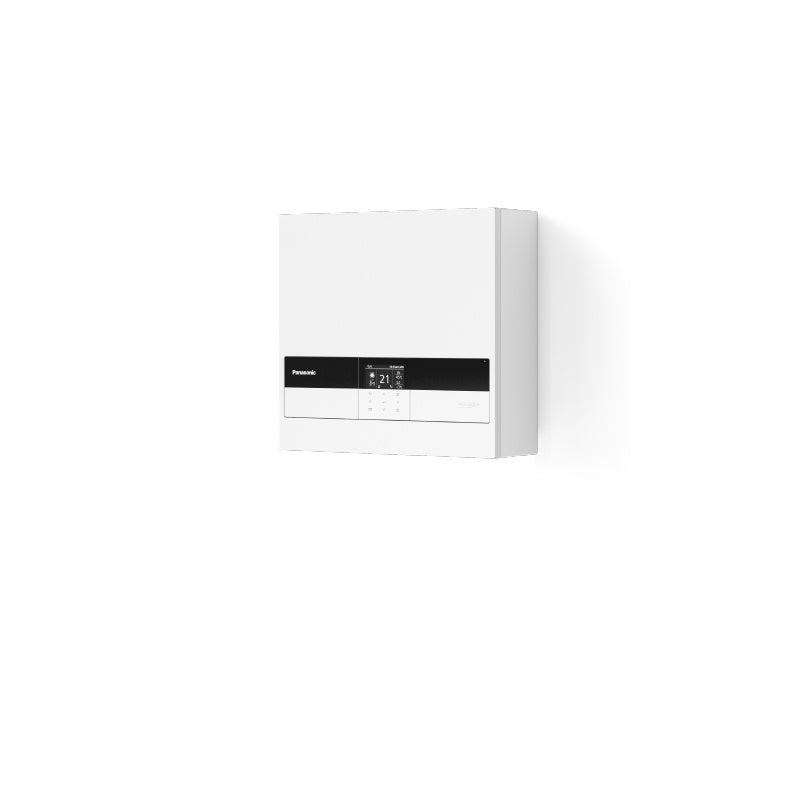

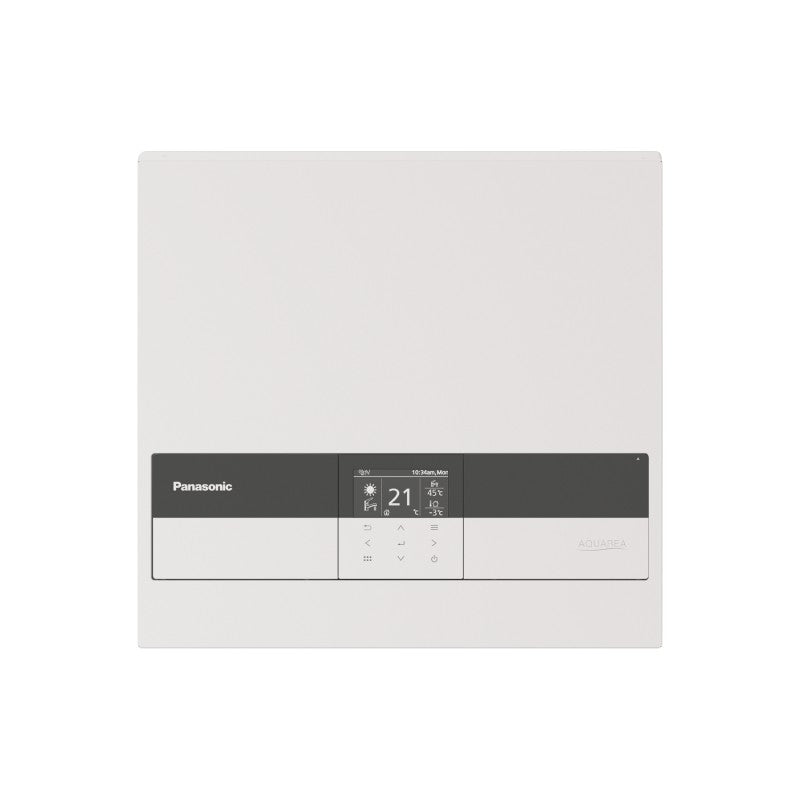

The Panasonic WH-CME5 is the single-phase Control Module for the Aquarea M Series T-CAP R290 range, matched to the 9 kW and 12 kW single-phase outdoor units. It upgrades a standalone outdoor unit to enhanced functionality — providing the centralised electrical interface, backup resistance management and communication link needed for two-zone control, buffer tank integration and bivalent boiler backup.

Single-Phase

Electrical supply

9 & 12 kW

Compatible capacities

Up to 3 kW

Backup resistance support

Wi-Fi Built In

Connectivity

2-Zone

Enhanced capability

M Series T-CAP

Platform

When to choose the Control Module over the simple controller

Choose the WH-CME5 Control Module where your system needs two-zone heating control, a buffer tank connection, solar integration, or bivalent boiler backup. For straightforward single-zone installs, the simpler CZ-RTW2TAW1C wired controller is sufficient on its own.

Match the module to your outdoor unit's phase

The WH-CME5 is for single-phase 9 kW and 12 kW outdoor units only. If your outdoor unit is three-phase, you need the WH-CME8 (9–16 kW) or WH-CME8L (20–30 kW) Control Module instead — see our matching listings.

Key features

Centralised electrical management

Generates the backup electrical resistance supply, manages the system's main power feed, and handles communication with the outdoor unit — all from one integrated module.

Supports backup resistance up to 3 kW

Compatible with backup heating resistances up to 3 kW, sized to the module's single-phase electrical rating.

Built-in Wi-Fi adapter

Connects directly to Aquarea Smart Cloud, Panasonic Comfort Cloud, and Aquarea Service Cloud — no separate network adaptor accessory required.

Two-zone control

Unlocks independent control of two heating zones — for example underfloor heating and radiators running at different flow temperatures.

Buffer tank & bivalent integration

Supports connection to a buffer tank and bivalent boiler backup configurations, extending the system design options beyond a straightforward single-zone install.

Regulatory compliant electrical interface

Designed to help installations comply with low-voltage electrical installation regulations, ensuring a safe, correctly-rated connection between indoor and outdoor units.

Technical specification

Model code	WH-CME5
Electrical supply	Single-phase
Compatible outdoor unit capacities	9 kW and 12 kW
Compatible outdoor units	WH-WXG09ME5, WH-WXG12ME5
Backup resistance support	Up to 3 kW
Recommended fuse	16 A
Minimum power cable section	3 × 1.5 mm²
Connection cable to outdoor unit	2 × 0.75 mm²
Connectivity	Built-in Wi-Fi adapter — Aquarea Smart Cloud, Comfort Cloud, Aquarea Service Cloud
Enhanced functions supported	Two-zone control, buffer tank connection, bivalent boiler backup
Compatible remote controller	CZ-RTW2TAW1C

What's in the box

• 1 × Panasonic WH-CME5 single-phase Control Module
• Manufacturer installation instructions

What you'll also need (sold separately)

• Matched M Series T-CAP outdoor unit — WH-WXG09ME5 or WH-WXG12ME5
• CZ-RTW2TAW1C simple wired controller (room interface)
• DHW cylinder — Panasonic stainless or enamelled tank, or suitable third-party cylinder
• PAW-3WYVLV-HW 3-way valve for DHW switching
• Buffer tank and associated sensor, if included in your system design

Frequently Asked Questions

Is this compatible with my outdoor unit?

The WH-CME5 is matched specifically to single-phase 9 kW and 12 kW M Series T-CAP outdoor units (WH-WXG09ME5, WH-WXG12ME5). Check your outdoor unit's phase and capacity before ordering.

What does the Control Module actually do?

It provides the centralised electrical interface between the indoor and outdoor units — managing backup resistance, the main power feed, and communication — while unlocking enhanced functions like two-zone control that aren't available with the simple wired controller alone.

Do I still need the simple wired controller as well?

Yes — the Control Module handles the electrical and hydraulic management side, while the CZ-RTW2TAW1C (or an equivalent room controller) remains the user-facing interface for day-to-day operation.

What if my outdoor unit is three-phase?

Use the WH-CME8 (for 9–16 kW three-phase units) or WH-CME8L (for 20–30 kW three-phase units) instead — the WH-CME5 is single-phase only.

Do I need to be MCS-registered to install this?

The system can be installed by any competent heating engineer, but to claim the UK Boiler Upgrade Scheme grant the install must be carried out by an MCS-certified installer.
