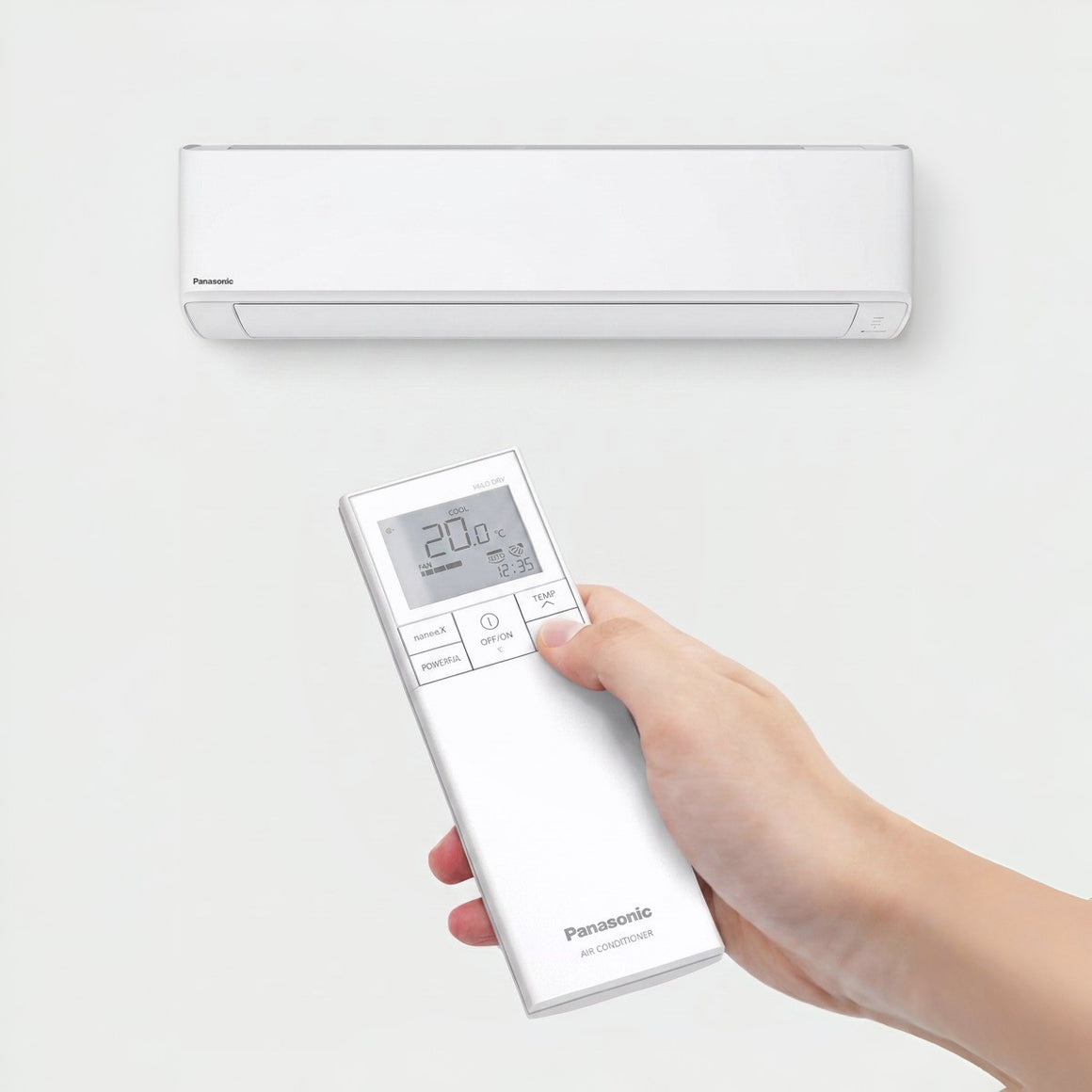

The Panasonic CS-TZ60CKEW is a 6.0kW wall-mounted indoor unit from the TZ super-compact range, sitting near the top of the TZ line-up for rooms that need serious heating and cooling output without moving up to a bulkier cabinet style. nanoe X air purification is built in as standard, working continuously to help keep the room's air cleaner.
Suited to larger living rooms, open-plan spaces, and bigger bedrooms, the CS-TZ60CKEW pairs with the dedicated CU-TZ60CKE single outdoor unit or a compatible Free Multi Z multi-split outdoor unit, including the CU-3Z68CBE (3-connection), giving installers the option to run it standalone or alongside other zones on a shared outdoor unit.
Important: F-Gas Qualified Installation Required
This indoor unit operates with R32 refrigerant circulated from its outdoor unit, and falls under F-Gas Regulations. Installation and commissioning must be carried out by an F-Gas certified engineer. See the certification form above before ordering.
Please Note: Confirm Outdoor Unit Compatibility Before Ordering
The CS-TZ60CKEW is sold as an indoor unit only. It must be paired with a compatible Panasonic outdoor unit — either the dedicated single unit CU-TZ60CKE, or a Free Multi Z multi-split outdoor unit such as the CU-3Z68CBE (3-connection) or CU-5Z90CBE (5-connection). At 6.0kW, this is one of the larger TZ indoor units, so confirm the total combined indoor capacity on any multi-split system stays within the outdoor unit's rated range before adding it alongside other zones.
Good to Know: What nanoe X Does
nanoe X generates hydroxyl radicals that are released into the room to help inhibit airborne pollutants, certain bacteria and viruses, and odours, working continuously alongside the heating or cooling function or independently when the unit is in standby.
Higher Output for Larger Rooms
Delivers 6.0kW cooling and 7.0kW heating, giving it the headroom for large living rooms, open-plan spaces, and bigger bedrooms that would be underserved by the smaller TZ models.
nanoe X Air Purification Built In
Continuous release of hydroxyl radicals works to inhibit airborne pollutants and odours as standard, with no separate filter cartridge to replace.
Compact Cabinet at This Output Level
At 295mm high, 1060mm wide, and 249mm deep, the TZ super-compact cabinet stays relatively slim even at 6.0kW, keeping a lower visual profile than many equivalent-output indoor units.
Built-In Wi-Fi Control
Integrated Wi-Fi connects directly to the Panasonic Comfort Cloud app for remote scheduling and control, and the unit is compatible with Google Assistant and Amazon Alexa voice control.
Aerowings Directional Airflow
Aerowings louvre technology directs airflow more precisely around the room, helping even out temperature across a larger space rather than blowing directly on occupants.
PM2.5 Filtration
Fitted with a PM2.5 filter to help capture fine airborne particulates as air passes through the unit, working alongside nanoe X for a cleaner overall indoor environment.
| Performance |
| Cooling Capacity (Nominal) |
6.0 kW |
| Heating Capacity (Nominal) |
7.0 kW |
| Cooling Capacity (Min–Max) |
0.98 – 6.60 kW |
| Heating Capacity (Min–Max) |
0.98 – 8.20 kW |
| Heating Capacity at -7°C |
4.90 kW |
| Efficiency |
| EER (Nominal) (paired with CU-TZ60CKE)
|
3.24 W/W |
| COP (Nominal) (paired with CU-TZ60CKE)
|
3.72 W/W |
| SEER |
6.90 (A++) |
| SCOP |
4.30 (A+) |
| Sound |
| Indoor Sound Pressure – Cooling (Hi / Lo / Quiet) |
45 / 37 / 34 dB(A) |
| Indoor Sound Pressure – Heating (Hi / Lo / Quiet) |
45 / 37 / 34 dB(A) |
| Indoor Air Flow – Cooling |
19.9 m³/min |
| Indoor Air Flow – Heating |
21.0 m³/min |
| Electrical |
| Connecting Cable |
4 x 2.5 mm² |
| Recommended Fuse |
20 A |
| Power Supply |
230V |
| Physical & Connections |
| Dimensions (H x W x D) |
295 x 1060 x 249 mm |
| Net Weight |
14 kg |
| Pipe Diameter – Liquid |
1/4" (6.35 mm) |
| Pipe Diameter – Gas |
1/2" (12.70 mm) |
| Features & Control |
| Air Purification |
nanoe X (Generator Mark 2) |
| Filtration |
PM2.5 filter |
| Airflow Technology |
Aerowings |
| Connectivity |
Built-in Wi-Fi (Panasonic Comfort Cloud app) |
| Voice Control Compatibility |
Google Assistant, Amazon Alexa |
| Refrigerant |
R32 (supplied via compatible outdoor unit) |
| Compatible Outdoor Unit |
Configuration |
Combined Indoor Capacity Range |
| CU-TZ60CKE |
Dedicated single (1-to-1) |
6.0 kW fixed |
| CU-3Z68CBE |
Free Multi Z, 3 connections |
4.5 – 11.2 kW combined |
| CU-5Z90CBE |
Free Multi Z, 5 connections |
3.2 – 18.3 kW combined |
Does the CS-TZ60CKEW include an outdoor unit?
No. This listing is for the indoor unit only. It must be paired with a compatible Panasonic outdoor unit, either a dedicated single unit or a Free Multi Z multi-split outdoor unit.
Is the CS-TZ60CKEW compatible with the CU-3Z68CBE outdoor unit?
Yes. The CS-TZ60CKEW is listed as a compatible indoor unit for the CU-3Z68CBE 3-connection outdoor unit. As with any multi-split system, the combined nominal cooling capacity of all connected indoor units must stay within the CU-3Z68CBE's 4.5kW–11.2kW range — at 6.0kW this indoor unit takes up more of that headroom than the smaller TZ models, so check the total against the rest of the layout before ordering.
What is nanoe X and does it need maintenance?
nanoe X is Panasonic's air purification technology, which releases hydroxyl radicals into the room to help inhibit pollutants, certain bacteria and viruses, and odours. It runs continuously with the unit and does not require a separate filter cartridge to be replaced.
What size room is this unit suitable for?
At 6.0kW nominal cooling, the CS-TZ60CKEW suits large living rooms, open-plan spaces, and bigger bedrooms that would be underserved by the smaller 2.5kW–5.0kW TZ models.
How quiet is this unit in normal use?
Sound pressure runs from 45 dB(A) on high fan speed down to 34 dB(A) in quiet mode.
Does installation need to be carried out by a certified engineer?
Yes. As the system circulates R32 refrigerant, installation must be carried out by an F-Gas certified engineer. We require evidence of certification before shipment.
