Panasonic 4.2kW TZ Outdoor Unit | CU-TZ42CKE | R32

Description

F-Gas certification required

Please note: We are legally required to verify your F-Gas certification before supplying restricted refrigerants. Orders without valid certification will not be processed.

Submit your F-Gas certification

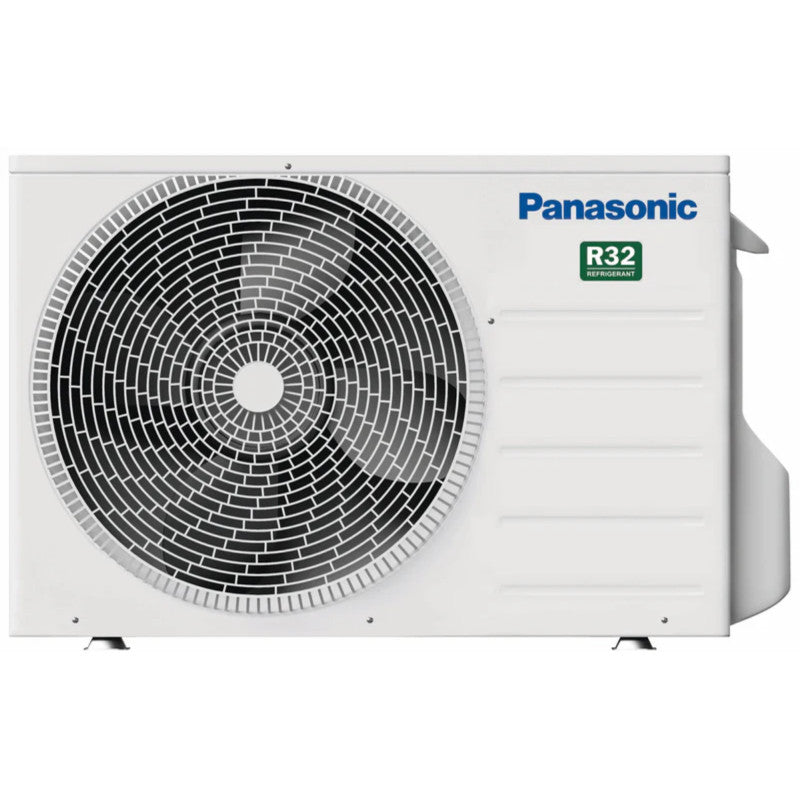

The Panasonic CU-TZ42CKE is a 4.2 kW cooling / 5.0 kW heating outdoor unit for single split air conditioning and heat pump systems. It pairs with one wall-mounted TZ super-compact indoor unit with nanoe X, making it a neat fit for bedrooms, home offices and other smaller spaces that need cooling in summer and efficient heating in winter.

Built around Panasonic’s R2 rotary compressor, the unit is designed to keep working in tough conditions, with a heating operating range down to -15°C and a cooling range up to 43°C. It uses R32 refrigerant with a low factory charge of just 0.79 kg, and its compact 780 × 542 × 289 mm casing weighs only 31 kg, which keeps wall-bracket and floor-stand installs straightforward.

Installers get 6.35 mm / 12.7 mm refrigerant connections, a 3–15 m pipe run, a supplied drain elbow and quiet running, with 49 dB(A) sound power in cooling and 51 dB(A) in heating at high speed. Suitable for domestic use.

4.2 kW

Nominal cooling

5.0 kW

Nominal heating

-15°C

Min. heating ambient

R32

Refrigerant

49 dB

Sound power (cooling, high)

31 kg

Unit weight

Safety and regulatory

This unit contains R32 (A2L, mildly flammable refrigerant). Installation, servicing and refrigerant handling must only be carried out by trained, F-Gas certified personnel. Air purging is prohibited on R32 systems: the pipework must be evacuated with a vacuum pump and tightness tested with oxygen-free nitrogen. Electrical work must comply with BS 7671, and a 30 mA RCD is strongly recommended.

Compatibility and what is not included

This is the outdoor unit only. It must be paired with one compatible 4.2 kW wall-mounted TZ super-compact indoor unit (single split). The indoor unit, liquid and gas refrigerant pipework, the indoor/outdoor connection cable and any additional drain hose are not supplied and must be purchased separately. A drain elbow is included.

Good to know

Features such as nanoe X air treatment, built-in Wi-Fi with the Panasonic Comfort Cloud app, Google Home and Alexa voice control and Aerowings airflow come from the matching TZ indoor unit, not the outdoor unit.

Key features

Panasonic R2 rotary compressor

Designed to withstand extreme conditions, giving dependable cooling and heating through the seasons.

Heating down to -15°C

Heating operation from -15°C to 24°C ambient and cooling from -10°C to 43°C suits UK winters and hot summers.

R32 refrigerant

Lower-charge R32 system with a factory charge of 0.79 kg (0.53 tCO2e), a more efficient choice than older refrigerants.

Space-saving design

Just 542 mm high, 780 mm wide and 289 mm deep at 31 kg, so it fits tight gardens, side passages and wall brackets.

Quiet operation

49 dB sound power in cooling and 51 dB in heating at high speed helps keep neighbours and bedrooms undisturbed.

Installer-friendly

3–15 m pipe run, 15 m elevation, a supplied drain elbow and flare connections keep installs quick and tidy.

Technical specification

Performance

Product code

CU-TZ42CKE

System type

Single split outdoor unit (heat pump: cooling and heating)

Nominal cooling capacity

4.2 kW

Nominal heating capacity

5.0 kW

Compressor

Panasonic R2 rotary

Compatible indoor unit

1 × wall-mounted TZ super-compact with nanoe X (4.2 kW)

Operating range and acoustics

Cooling operating temperature

-10°C to 43°C

Heating operating temperature

-15°C to 24°C

Sound power level (cooling, high)

49 dB

Sound power level (heating, high)

51 dB

Refrigerant

Refrigerant type

R32

Factory refrigerant charge

0.79 kg (0.53 tCO2e)

Maximum total refrigerant charge

0.87 kg

Room area requirement

None (total system charge below 1.84 kg)

Electrical

Electrical supply

230 V

Power supply cable

3 × 1.5 mm², type 60245 IEC 57 or heavier

Indoor/outdoor connection cable

4 × 1.5 mm² polychloroprene sheathed flexible cord, 60245 IEC 57 or heavier (no joints)

Supply protection

16 A double-pole breaker with minimum 3.0 mm contact gap, or approved 15/16 A earthed plug and socket; 30 mA RCD recommended

Pipework

Liquid pipe diameter

6.35 mm (1/4″)

Gas pipe diameter

12.7 mm (1/2″)

Pipe length range

3 m to 15 m (standard length 5 m)

Maximum elevation difference

15 m

Additional refrigerant

10 g/m for pipe runs beyond 7.5 m

Minimum copper wall thickness

0.8 mm (R32/R410A rated pipe only)

Flare nut torque

Liquid 18 N·m, gas 55 N·m

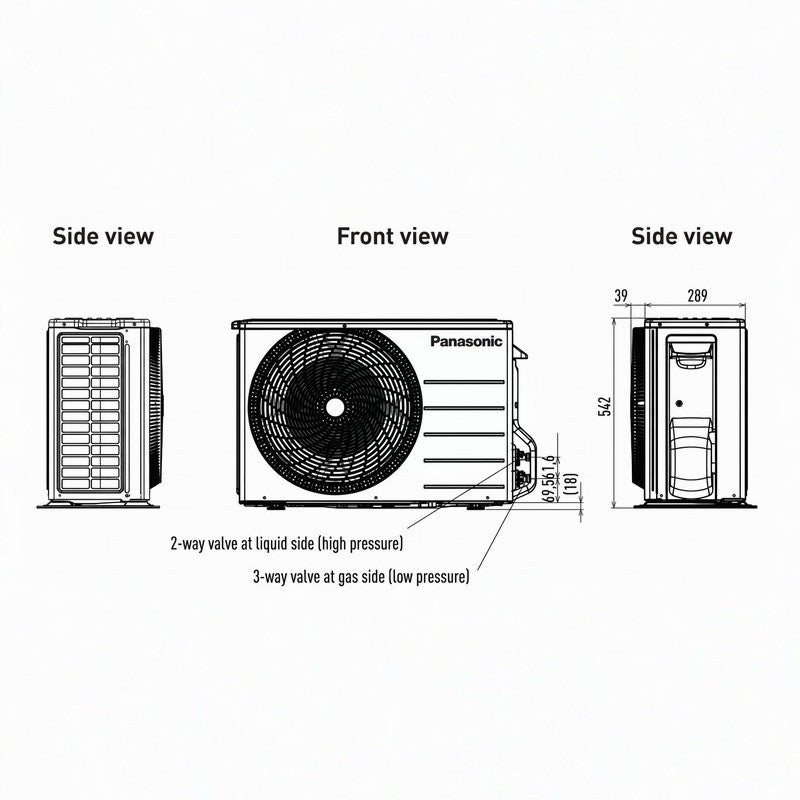

Dimensions and weight

Height

542 mm

Width

780 mm

Depth

289 mm

Weight

31 kg

Supplied accessory

Drain elbow (1)

Fixing bolts

ø10 mm onto concrete or a rigid frame

Frequently asked questions

Which indoor unit does the CU-TZ42CKE work with?

It is compatible with the 4.2 kW wall-mounted TZ super-compact indoor unit with nanoe X in a single split system, one indoor unit per outdoor unit.

What refrigerant pipe sizes and lengths can I use?

Use 6.35 mm (1/4″) for liquid and 12.7 mm (1/2″) for gas. The pipe run can be 3–15 m with up to 15 m elevation. Beyond 7.5 m, add 10 g of R32 per extra metre.

Can it heat in cold weather?

Yes. Heating operation is supported down to -15°C ambient. If the unit sees temperatures below 0°C for two or three days in a row, Panasonic recommends not fitting the drain elbow, as drain water can freeze and stop the fan.

Do I need F-Gas certification to install it?

Yes. The unit contains R32, so it must be installed and serviced by trained and certified personnel. We verify F-Gas certification before supplying, using the form linked at the top of this page.

What electrical supply and protection does it need?

A 230 V supply using 3 × 1.5 mm² cable, with a 16 A double-pole breaker (3.0 mm contact gap) or an approved 15/16 A plug. A 30 mA RCD is strongly recommended and the installation must comply with BS 7671.

Can I reuse existing refrigerant pipework?

Only if it is suitable for R32/R410A, correctly insulated on both pipes, the right diameter and thickness (0.8 mm minimum) and within length and elevation limits. Never reuse R22 pipework, always make new flares, and pump down properly first.
