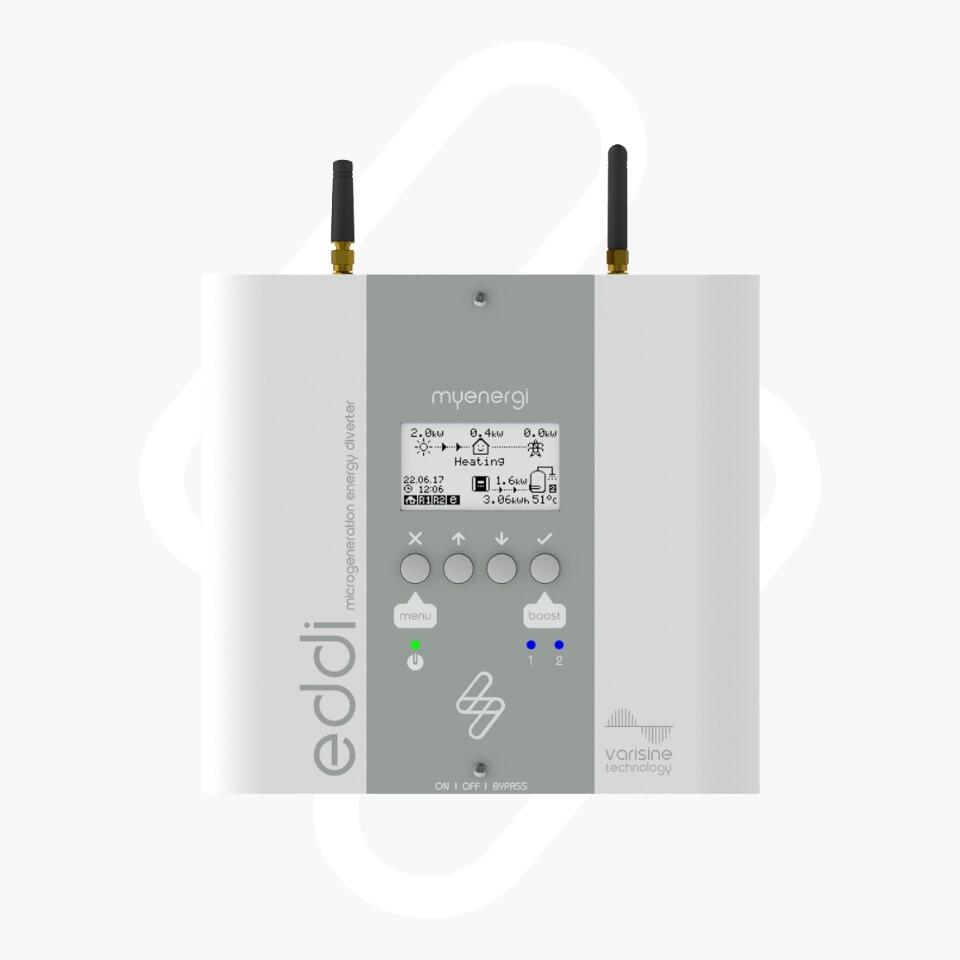

The myenergi eddi 2.1 is a single-phase solar energy diverter that captures your surplus solar PV or wind electricity and puts it to work heating water or space — instead of sending it back to the grid for little return. With built-in WiFi and Ethernet connectivity, real-time monitoring, and seamless integration with the wider myenergi ecosystem, it's one of the smartest ways to increase self-consumption at home.
Made in the UK
3-Year Warranty
WiFi + Ethernet
myenergi Ecosystem Compatible
Up to 3.68kW / 16A
How it Works
Normally, surplus solar energy is exported to the grid. The eddi 2.1 monitors your generation and consumption in real time — thousands of times per second — and automatically diverts any excess power to your immersion heater, storage heater, or other resistive load. You get free hot water or heating from electricity you'd otherwise give away. The minimum load is just 100W, so it starts making use of even modest surpluses.
ECO Mode
Diverts only surplus green energy
Boost Mode
Tops up from grid when needed
Schedule Mode
Set timers via app or device
Key Features
Intelligent Real-Time Diversion
Monitors generation and consumption thousands of times per second to divert exactly the right amount of surplus power — no wasted export, no grid import.
WiFi & Ethernet Connectivity

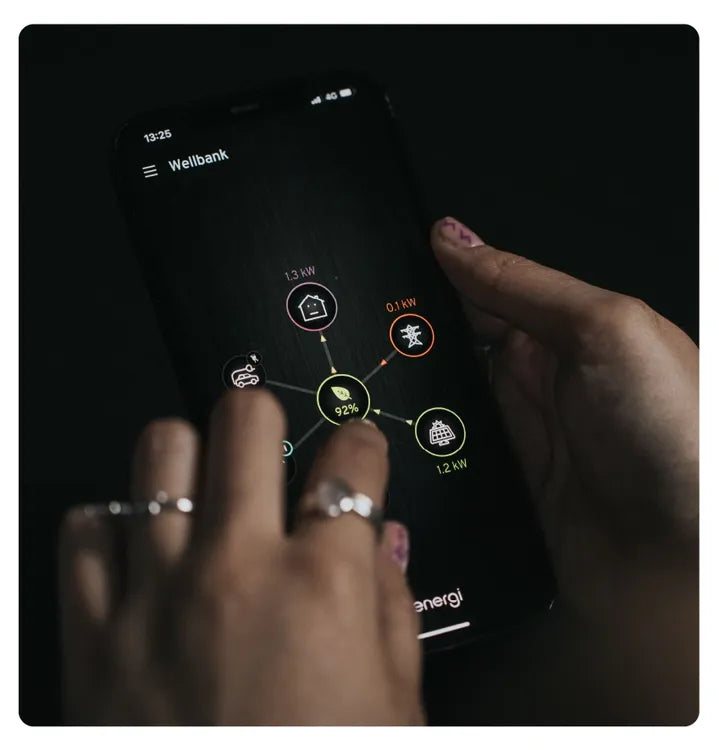

Built-in dual connectivity for reliable app control, remote access, scheduling, boost functions, and automatic firmware updates via the myenergi app.
Two Heater Support
Controls up to two resistive heaters sequentially — ideal for homes with dual immersion tanks or a mix of immersion and storage heating.
Sunamp & Ecosystem Integration
Integrates with Sunamp heat batteries for PV-charged thermal storage, and works alongside myenergi zappi chargers and harvi wireless CT sensors.

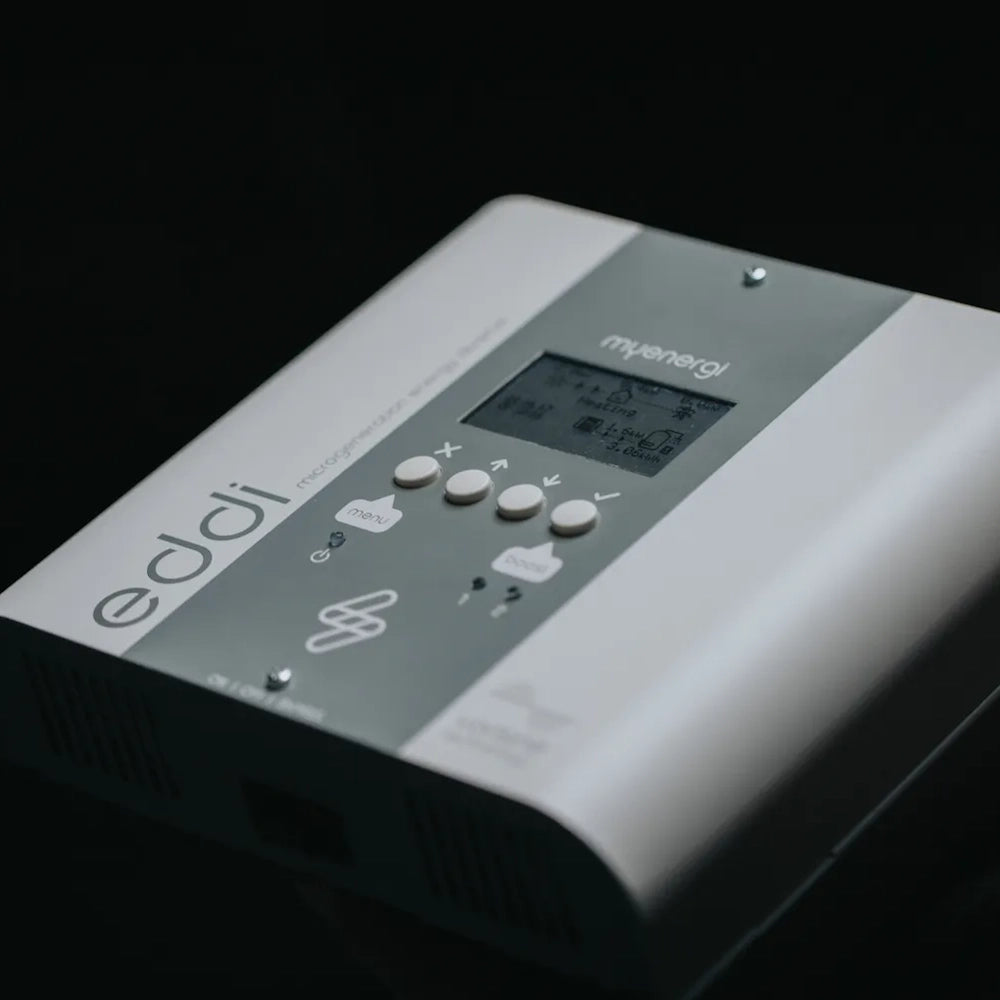

Graphical LCD Display
Clear on-unit display shows live generation, consumption, and diversion data at a glance, even without the app.
Fan-Less, Quiet Operation
No fan means completely silent running. Overload and short-circuit protection built in. Automatic Daylight Saving Time adjustment.
Low Standby Power
Just 3W standby consumption ensures the unit itself doesn't eat into your savings when there's nothing to divert.
Harvi Wireless Expansion
Add optional harvi sensors for wireless current transformer clamping in installations where running cables to the meter board isn't practical.
Technical Specifications
| Specification |
Details |
| Part Number |
EDDI-16A1P02H |
| Phase |
Single phase |
| Maximum Heater Load |
3.68kW / 16A |
| Minimum Load |
100W |
| Standby Power |
3W |
| Heaters Supported |
Up to 2 (sequential control) |
| Power Supply |
230V AC, 50Hz |
| Connectivity |
WiFi (2.4GHz) + Ethernet |
| App Control |
myenergi app (iOS & Android) |
| Display |
Graphical LCD with LED backlight |
| Bypass Switch |
Integral safety bypass |
| Protection |
Overload, short-circuit, automatic DST |
| Compatible Sensors |
CT clamp (included), optional harvi wireless sensor |
| Cooling |
Fan-less passive cooling |
| Mounting |
Wall-mounted with included bracket |
| Origin |
Made in the UK |
| Warranty |
3 years |
| Compliance |
CE / UKCA marked |
What's in the Box
- myenergi eddi 2.1 diverter unit
- CT clamp with 5m cable
- Wall-mounting bracket
- WiFi and radio antennae
- Quick-start guide
- Wiring accessories
⚡ Installation Note
The eddi 2.1 must be installed by a qualified electrician. The CT clamp is clamped around the grid import/export cable at the meter board; the eddi unit is then wall-mounted nearby. The optional harvi wireless sensor is available separately for meter boards located in difficult-to-cable positions. WiFi setup is completed via the myenergi app during commissioning.
Frequently Asked Questions
Will the eddi 2.1 work with my existing solar PV system?
Yes — the eddi 2.1 is compatible with any grid-connected solar PV or wind generation system. It uses a CT clamp on the grid connection to measure import and export, so no changes to your inverter or existing wiring are needed.
What type of heater can the eddi 2.1 control?
The eddi 2.1 is designed for resistive (purely electric) loads such as standard immersion heaters (1kW–3kW) and storage heaters. It is not suitable for heat pumps or any load that does not accept variable power input. It can control up to two such heaters sequentially.
What happens on cloudy days or when there's no surplus?
When there's no surplus to divert, the eddi 2.1 does nothing and your heater stays off in ECO mode. You can use Boost mode or set a schedule to top up from the grid at a time of your choosing — for example, overnight on a cheap tariff.
Does the eddi 2.1 work with a myenergi zappi EV charger?
Yes. When multiple myenergi devices share the same harvi or wired CT, they communicate with each other and share the available surplus intelligently. You can set priorities in the myenergi app to decide whether you want to charge your car or heat your water first.
Is the eddi 2.1 compatible with battery storage systems?
Yes — the eddi works alongside myenergi libbi battery storage. You can set it to only divert once the battery reaches a target state of charge, ensuring your battery fills first and only truly excess electricity goes to the immersion heater.
What is the difference between the eddi 2.1 and the eddi+ 3-Phase?
The eddi 2.1 (this product) is for standard single-phase UK domestic supplies (the vast majority of homes). The eddi+ 3-Phase is designed for commercial and larger residential properties with a three-phase supply, and offers up to 9kW diversion per phase.
