Mixergy Solar X 2.0 Indirect Slimline 475mm Cylinder | Embedded PV Diverter Boiler Cylinder 120-210L

Description

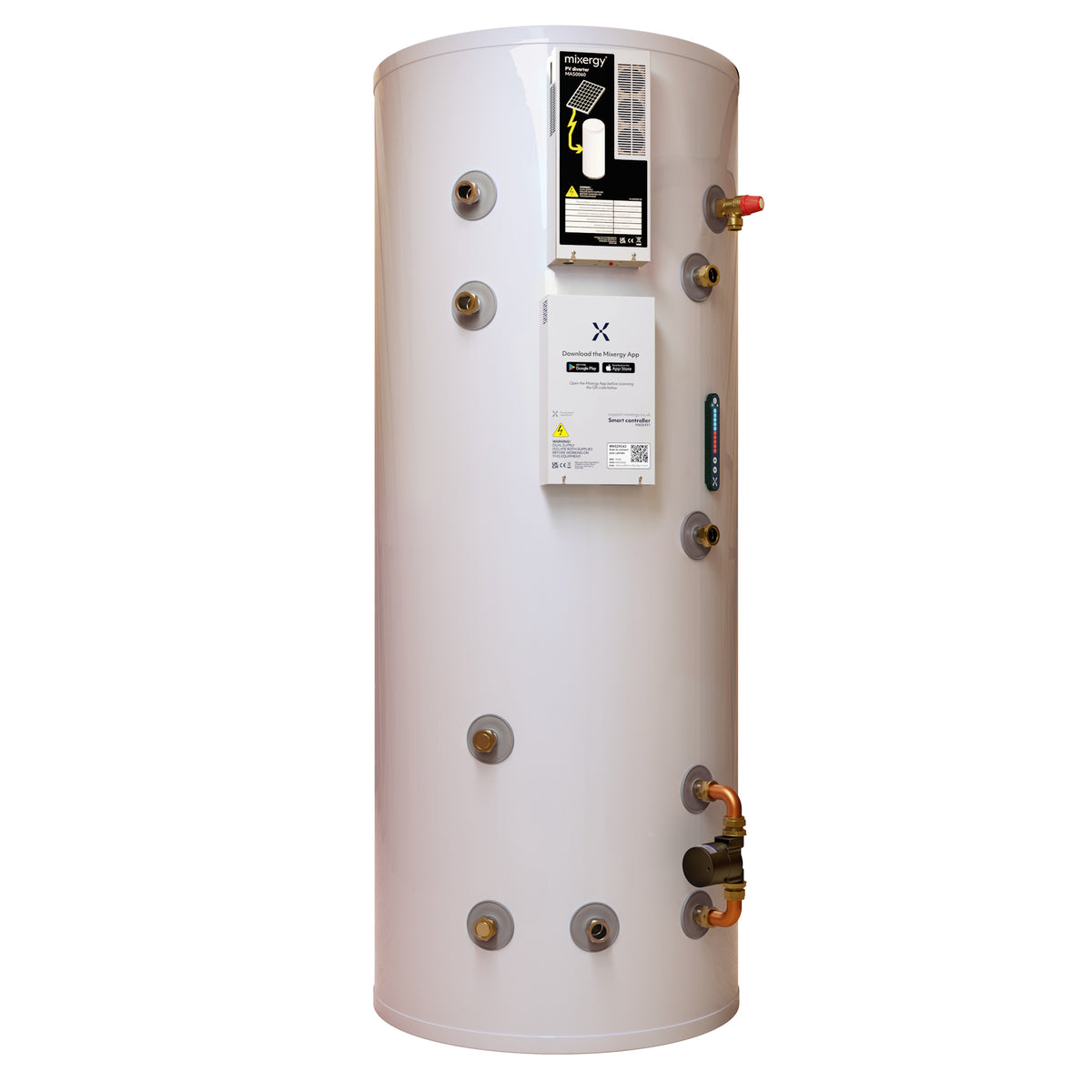

The Mixergy Solar X Indirect Slimline combines a boiler-fed primary coil with a factory-fitted embedded PV diverter, built into a narrower 475mm case for restricted cylinder cupboards and loft hatches.

Spanning 120 to 210 litres across four SKUs, this model shares the same 2.0 Controller, embedded diverter modulating between 30W and 3000W, and stratified thermocline smart charging as the standard-case Solar X Indirect.

120–210L

Capacity Range

475mm

Diameter

Embedded

PV Diverter

17.8–19.9kW

Coil Rating

30W–3000W

Modulation Range

WiFi

App Connected

Please Note: Current Lead Times

Mixergy cylinders typically ship on a 3 to 6 week lead time, depending on model and quantity ordered. Please call us to check current availability before confirming an installation date.

Good to Know: Solar Surplus, Automatically Used

The embedded diverter continuously modulates output between 30W and 3000W, matching the immersion load to whatever solar surplus is available at any given moment.

Important: Unvented Installation Requirement

This is an unvented cylinder. Installation must be carried out by a G3-competent operative and commissioned per the manufacturer's Installation & Servicing instructions. Incoming mains pressure must be less than 10 bar and at least 1 bar, with a minimum flow rate of 10 L/min. Unvented cylinders must never be used with a solid fuel heat source.

Slimline 475mm Case

Purpose-built for restricted cylinder cupboards or loft hatches, trading additional height for a narrower footprint versus the 550mm standard case.

Factory-Fitted PV Diverter

The diverter ships embedded and pre-wired at the factory, cutting installation time and eliminating a separate wall-mounted diverter unit.

Boiler-Fed with Solar-Boosted Backup

Heated primarily via the internal coil from a gas, oil or LPG boiler, with the immersion backup topped up by diverted solar surplus.

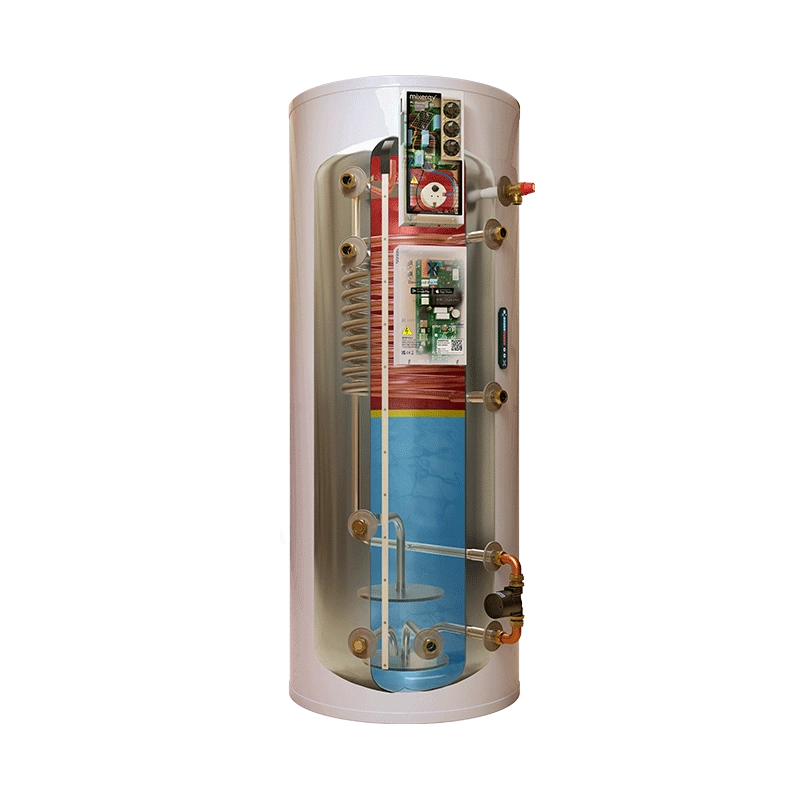

Stratified Smart Charging

Thermocline sensors mean the controller only heats the volume of water required from the boiler coil, giving minimum reheat times as fast as 11 minutes.

Coil Output for Every Size

Coil ratings from 17.8kW to 19.9kW across the range support fast boiler-fed reheats even at the taller 210L capacity.

Safety-Certified Components

Factory-fitted monobloc cold water inlet control group, T&P relief valve (7 bar/90°C), and expansion vessel charged to 3 bar.

Embedded Solar Diverter

Thermostat cut-out temperature	80°C
Immersion heater(s) rating	230–240V~, 2.7–3.0kW
Immersion heater(s) specification	EN 60335-2-73
Immersion heater(s) type	356mm Incoloy/Ti
Modulation range	30W–3000W

Controller & Electrical

Controller generation	2.0 Controller
Electrical supply	16A, dedicated MCB-protected circuit
Adjustable temperature range (digital)	50–65°C
Connectivity	WiFi dongle (supplied) or hardwired Ethernet

Unvented Safety Components

Max. supply pressure to PRV	10 bar
Operating pressure	3 bar
Expansion vessel charge pressure	3 bar
Expansion relief valve setting	6 bar
T&P relief valve setting (pressure)	7 bar
T&P relief valve setting (temperature)	90°C
Coil max. working pressure	3.5 bar

Construction

Cylinder material	Stainless steel
Insulation type	CFC/HCFC-free polyurethane foam
Insulation thickness	50mm
Connection size/type	22mm compression
Coil max. working pressure	3.5 bar
Diverter valve (>70°C boilers)	Honeywell V4043H1056 2-port, or equivalent

Model Range

Model Code	Capacity	ErP	Height	Coil Rating	Weight Full	Min Reheat
MX-120-IND-475-PVE	120L	B	1247mm	17.8kW	146.6kg	11 mins
MX-150-IND-475-PVE	150L	C	1518mm	18.3kW	180.4kg	11 mins
MX-180-IND-475-PVE	180L	C	1790mm	19.4kW	214.8kg	11 mins
MX-210-IND-475-PVE	210L	C	1962mm	19.9kW	247kg	11 mins

Please Note: Indirect Installations Over 70°C

Where the boiler or primary heat source is capable of exceeding 70°C, the supplied 2-port diverter valve (Honeywell V4043H1056 or equivalent) must be fitted, per the manufacturer's Installation & Servicing instructions.

How does the embedded PV diverter work alongside the boiler coil?

The boiler coil provides the primary heating; the embedded diverter separately routes solar surplus into the immersion element, modulating between 30W and 3000W.

What is the difference between the slimline and standard case?

Both share the same controller and diverter. The slimline case is 475mm diameter but taller at equivalent capacity; the standard case is 550mm diameter.

Can the Solar X Indirect Slimline be used with a heat pump instead of a boiler?

Yes. The controller supports a heat pump heat source setting in place of a boiler, with the PV diverter continuing to serve the immersion element.

What certification does the installer need?

Installation must be carried out by a competent operative who has completed a recognised unvented hot water systems course, with commissioning recorded per Building Regulations (G3) requirements.

What is included in the box?

Each cylinder ships with the monobloc cold water inlet control group, expansion vessel with mounting bracket, factory-fitted immersion heater(s), WiFi dongle, Ethernet cable, gauge, and user guide.

How long is the lead time and how do I check stock?

Lead times typically run 3 to 6 weeks depending on model and order quantity. Please call us to confirm current stock and expected delivery before booking an installation.
