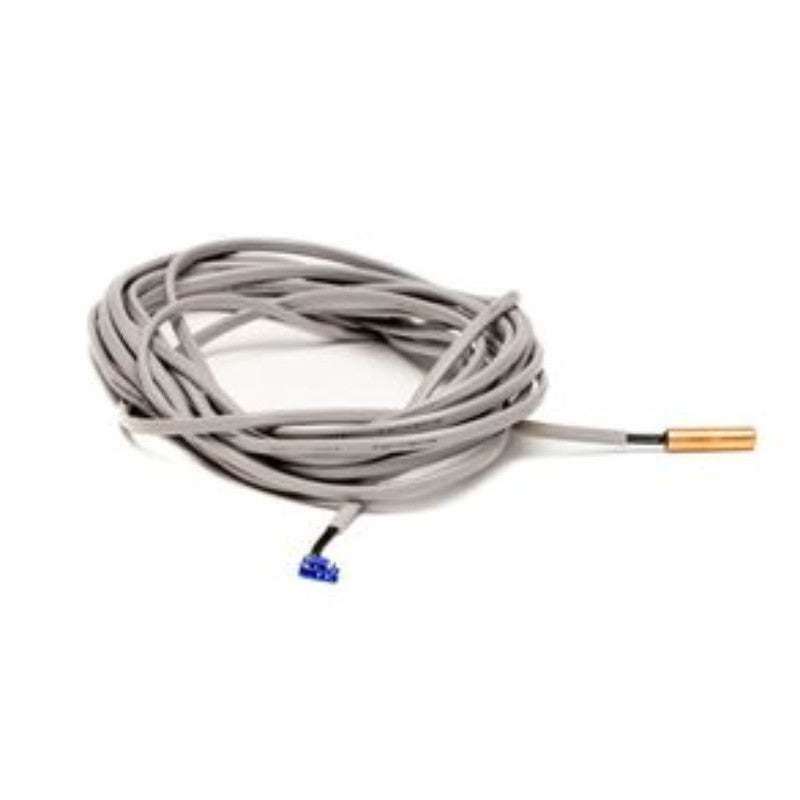

Mitsubishi FTC7 Third-Party Cylinder DHW Temperature Sensor (PAC-TH011TK2-E)

Description

The PAC-TH011TK2-E is the cylinder-side DHW temperature sensor used when pairing a Mitsubishi Ecodan with a third-party hot water cylinder. It allows the FTC7 controller to read tank temperature accurately for DHW heat-up cycles and Legionella protection sequencing.

5 m

Cable length

Pocket

Mount type

FTC7

Compatible

OEM

Mitsubishi part

Required

3rd-party cyl

Plug & Play

Setup

Required for non-Mitsubishi cylinders

This sensor is required on any Ecodan install where the cylinder is not a Mitsubishi pre-plumbed FTC7 unit. The pre-plumbed cylinders include their own integral DHW sensing.

Key features

Long Cable Run

5-metre cable allows the sensor to reach from the cylinder pocket to the FTC7 controller location without an extension.

Pocket-Mount Probe

Inserts into a standard cylinder sensor pocket for accurate stem temperature reading — preferred over strap-on for DHW sensing.

FTC7 Plug-and-Play

Connects directly to the FTC7 master controller's dedicated DHW input — no calibration or configuration required.

Genuine Mitsubishi Component

Specific resistance characteristics matched to the FTC7's expected NTC curve. Generic substitutes risk reading errors and legionella cycle failures.

Technical specification

Model code	PAC-TH011TK2-E
Mitsubishi part number	486211
Function	DHW tank temperature sensor for third-party cylinders
Cable length	5 metres
Sensor type	NTC thermistor, pocket-mount probe
Compatibility	Mitsubishi FTC7 Master Controller (PAC-IF082B-E)

Frequently Asked Questions

Can I use a generic thermistor instead?

No — the FTC7 expects specific resistance/temperature characteristics. Use the genuine Mitsubishi sensor to avoid temperature reading errors and possible Legionella cycle failures.

Where does the sensor go on the cylinder?

Most third-party cylinders include sensor pockets at the middle and lower thirds of the tank — fit the PAC-TH011TK2-E in whichever pocket matches the FTC7's expected sensing location, typically the lower-middle pocket for heat pump operation.

What if my cylinder doesn't have a pocket?

Some older cylinders use strap-on sensors only. Mitsubishi don't recommend strap-on for DHW sensing — accuracy is insufficient for proper legionella cycling. If your cylinder has no pocket, consider replacing with an FTC7 pre-plumbed cylinder instead.

Do I need this for a Mitsubishi pre-plumbed cylinder?

No — Mitsubishi pre-plumbed cylinders include integral DHW sensing. This sensor is only required for third-party cylinder installations using the standalone FTC7 Master Controller.
