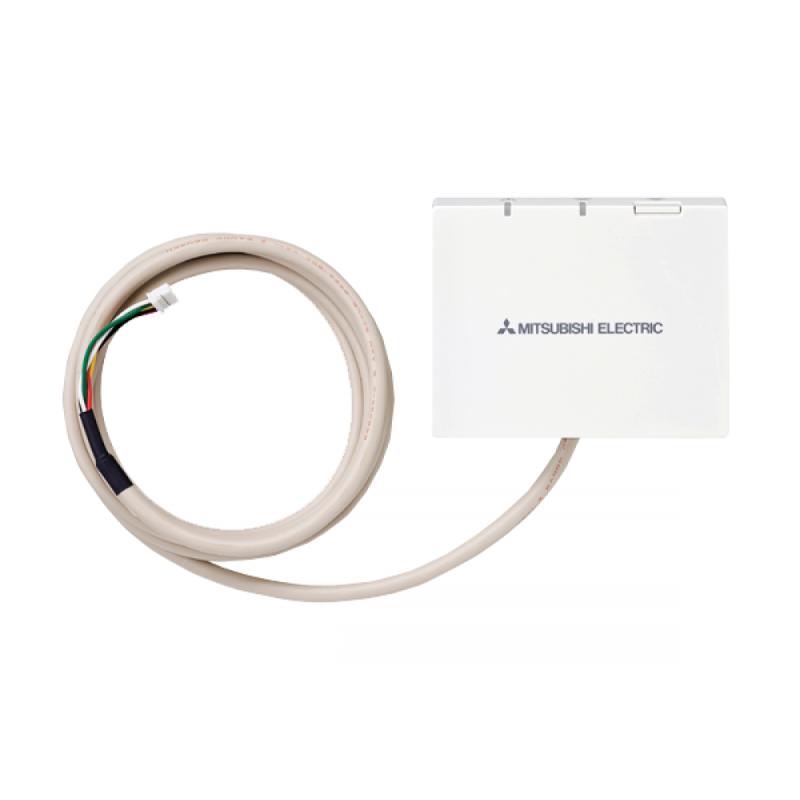

Mitsubishi FTC Wireless Controller Receiver (PAR-WR61R-E) — Cylinder-Side Unit

Description

The PAR-WR61R-E is the cylinder-side wireless receiver that pairs with the Mitsubishi PAR-WT60R-E room transmitter. It wires into the FTC controller in the cylinder cabinet and provides the link between the wireless room unit and the heat pump's control logic.

Wireless RX

Function

2 m

Cable to FTC

Wired link

To controller

FTC6/FTC7

Compatible

Pairs WT60R

Transmitter req

Cabinet-mount

Format

Transmitter sold separately

The receiver only works as a pair — you'll also need the matching PAR-WT60R-E Wireless Transmitter, sold separately. The transmitter sits in the living area as the room interface.

Key features

Cylinder-Cabinet Mount

Mounts inside the cylinder cabinet next to the FTC controller. 2-metre cable for flexible routing within the enclosure.

Direct FTC Connection

Wires straight to the FTC controller's wireless input — no extra interface boards or relays needed.

Auto-Reconnect

Re-establishes the wireless link automatically when the transmitter returns to range — no manual repair required.

Universal FTC Compatibility

Works with both current FTC7 and previous FTC6 generation systems.

Technical specification

Model code	PAR-WR61R-E
Mitsubishi part number	678211
Function	Wireless receiver for Mitsubishi FTC wireless control
Cable length	2 metres
Mounting	Inside the cylinder cabinet near the FTC controller
Pairs with	PAR-WT60R-E Wireless Transmitter (sold separately)
Compatibility	Mitsubishi FTC6 and FTC7 controllers

Frequently Asked Questions

Can I add a second wireless transmitter for a second zone?

The FTC7 supports two-zone control. For each zone you'd need a transmitter+receiver pair, though some commercial wireless multi-zone configurations use a single receiver with multiple transmitters — check the Mitsubishi compatibility matrix or speak to our team.

What if the wireless link is lost?

The FTC controller falls back to its last-known setpoint and continues running — the heating/DHW won't stop. The receiver indicates loss of link and will re-establish automatically when the transmitter is back in range.

Can I buy this separately from the transmitter?

You can buy them individually if you're replacing a faulty half of a pair — but for a new install you'll need both the receiver and transmitter for the wireless pair to function.

Where does this fit in the cabinet?

Mount the receiver inside the cylinder cabinet near the FTC controller. The 2-metre cable connects to the wireless input on the FTC controller PCB — refer to the Mitsubishi installation manual for the exact terminal.
