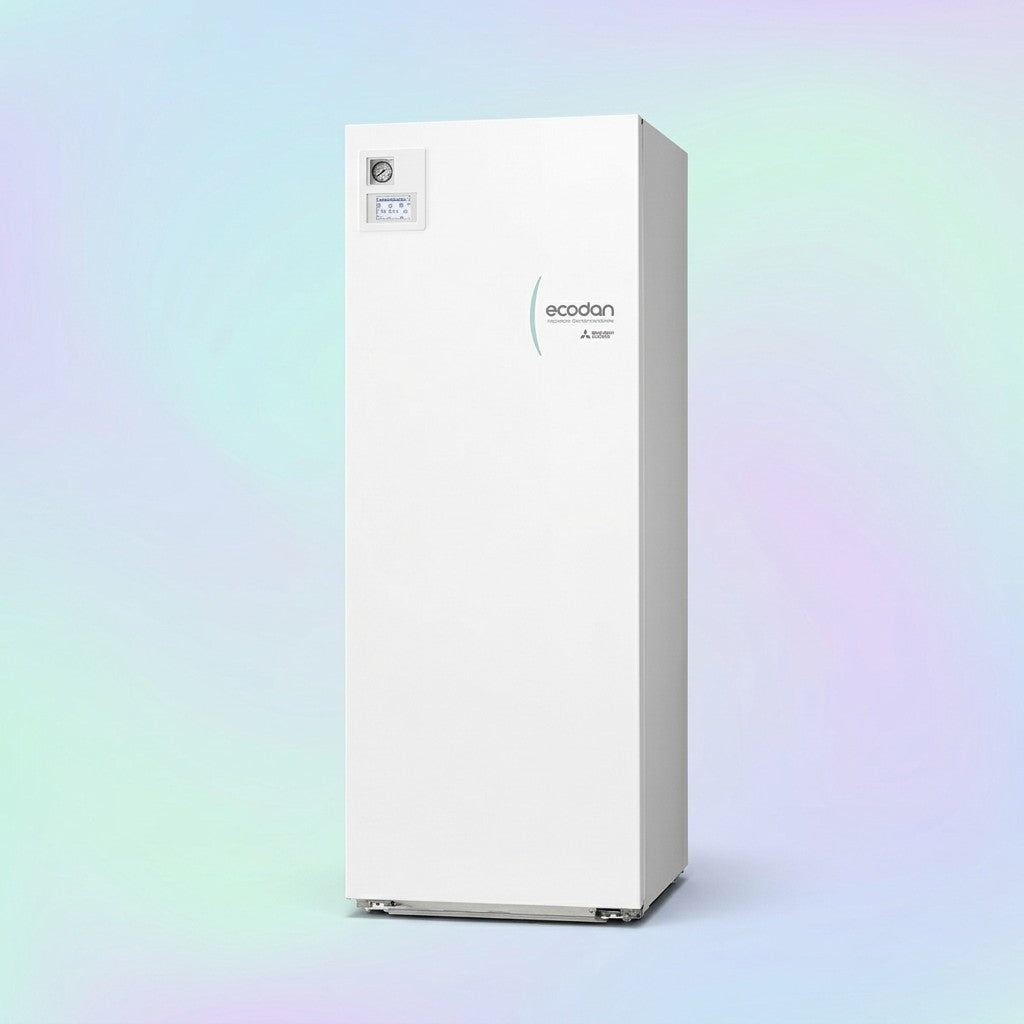

Mitsubishi Ecodan FTC7 Packaged Cylinder 200L (EHPT20X-MEHEW)

Description

The Mitsubishi Ecodan FTC7 Packaged Cylinder (EHPT20X-MEHEW) is a 200 litre factory-assembled indoor unit for Ecodan monobloc heat pumps. It arrives with the FTC7 Flow Temperature Controller, main controller and temperature sensors, primary and DHW pumps, zone and DHW valves, flow sensor, plate heat exchanger, scale trap and a 3 kW immersion heater all packaged and pre-plumbed into a single floor-standing cabinet — the installer connects flow/return, DHW, cold feed and electrics, with no on-site hydraulic assembly required.

200 L

Nominal hot water volume

A+

ErP rating (range A+ to F)

FTC7

Control platform

Colour Touchscreen

User interface

MELCloud

Wi-Fi enabled

3 kW

Immersion heater

BUS grant eligible

Part of a complete Mitsubishi Ecodan system eligible for the UK Boiler Upgrade Scheme grant when installed by an MCS-certified installer in an eligible property.

G3-qualified installer required

This is an unvented hot water cylinder. UK Building Regulations require the DHW side to be commissioned by a G3-qualified installer. Failure to install and commission per Mitsubishi's instructions may invalidate the warranty.

MCS-certified installer required

To claim the BUS grant and validate full Mitsubishi manufacturer warranty, this cylinder must be installed and commissioned by an MCS-certified heat pump installer.

Key features

Fully packaged hot water, heating and controls

Combines the DHW cylinder, primary heating circuit and FTC7 controls into one factory-assembled unit — plug-and-play installation with minimal on-site pipework.

Colour touchscreen control

Intuitive colour touch screen for day-to-day operation, scheduling and system status at a glance.

MELCloud enabled

Built-in MELCloud connectivity for remote control, monitoring, maintenance and technical support from a smartphone or the installer's diagnostic platform.

A+ hot water efficiency

Rated A+ under the ErP hot water combination heater scale (range A+ to F) for a large-profile average climate cylinder — minimised energy consumption for typical UK households.

Flexible product placement

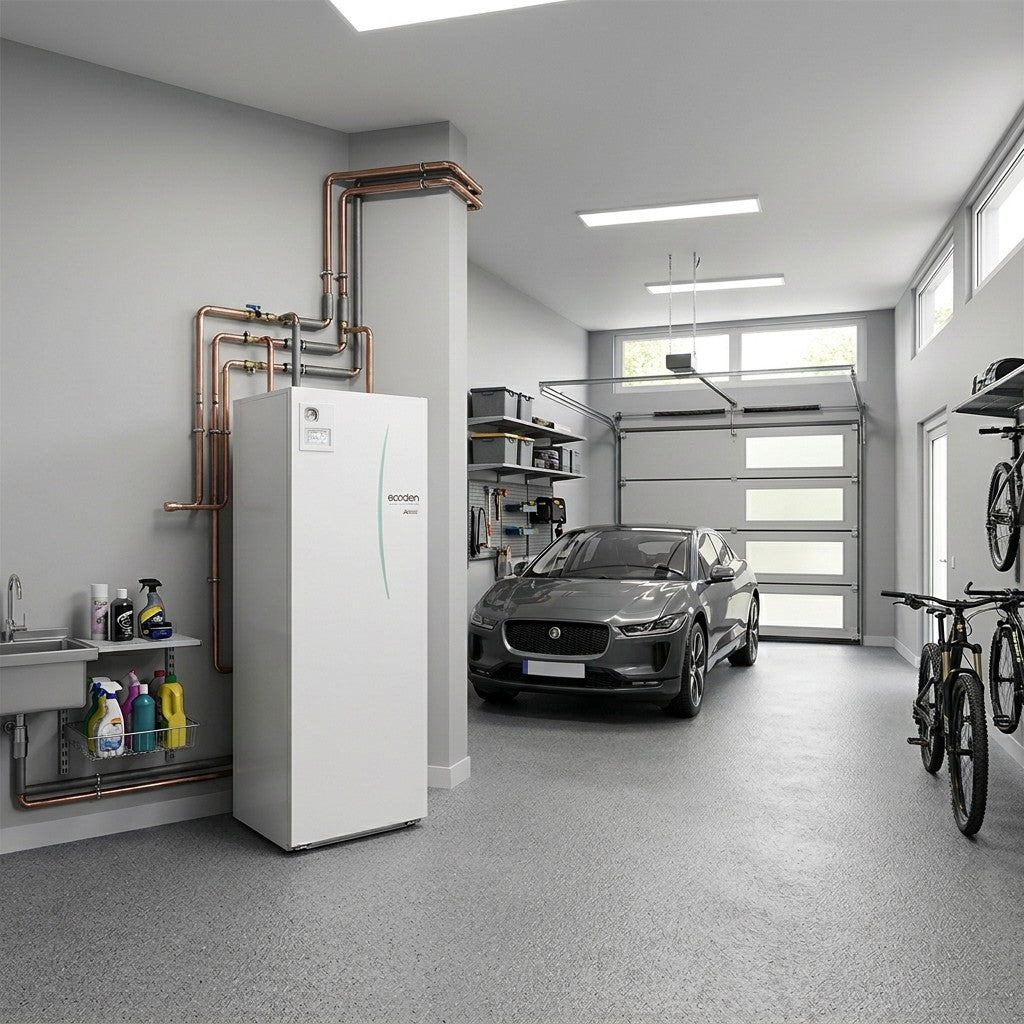

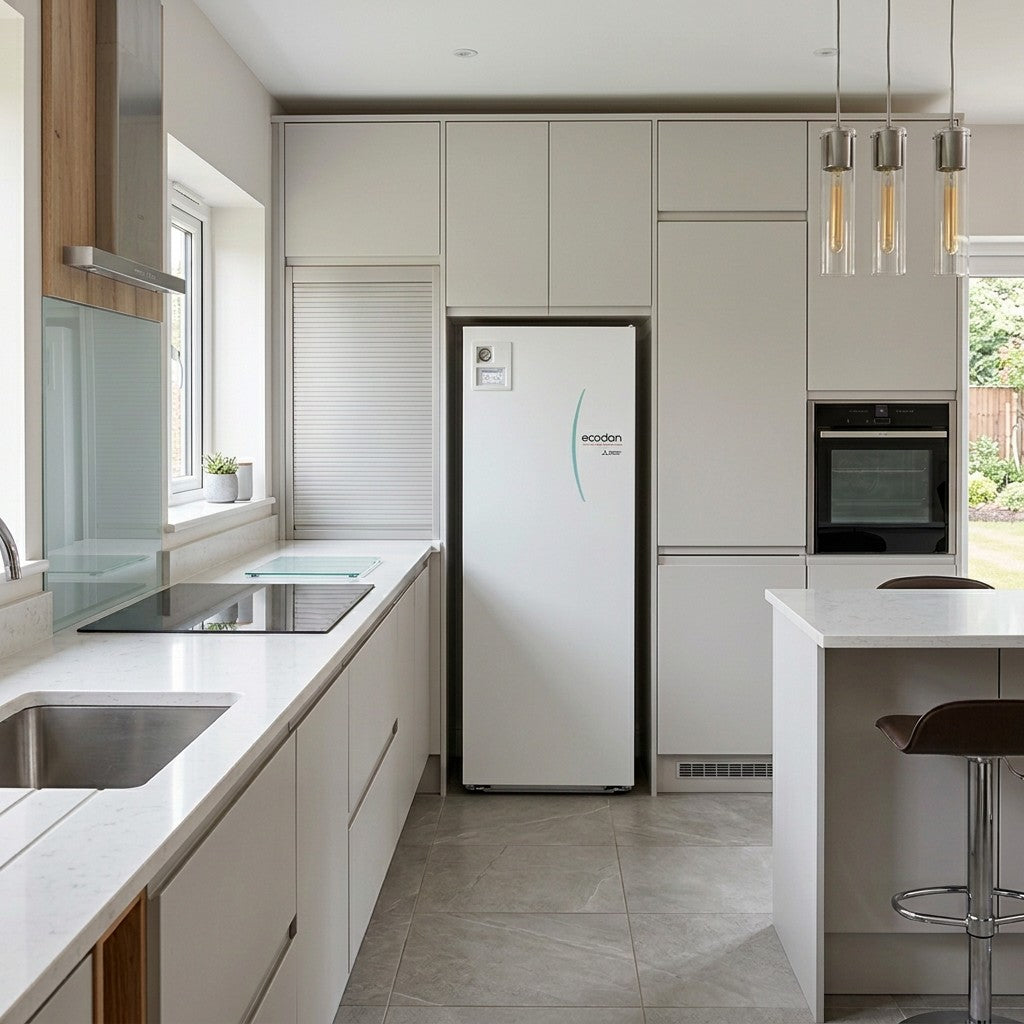

A self-contained package with a compact 595 × 680 mm footprint — flexible siting in an airing cupboard, utility room or plant space.

Optional wireless room control

Compatible with the optional PAR-WT60R-E wireless controller and PAR-WR61R-E receiver for a wire-free room thermostat setup.

Technical specification

Model code	EHPT20X-MEHEW
Nominal hot water volume	200 litres
ErP rating (large profile, average climate)	A+ (range A+ to F)
Operating ambient temperature	0 to +35°C (RH < 80%)
Sound pressure level at 1m	28 dBA
Flow rate — (H)WM 50 / 60 / 80 / 85 / 112 / 140	14 / 17 / 23 / 24 / 32 / 40 l/min
Primary circuit pump	Grundfos UPM3 15-75 130
Sanitary hot water pump	Grundfos UPSO 15-60 130
Connection size — heating / DHW	G1" / G3/4"
Heating water circuit control thermistor	80°C
Flow sensor (minimum flow)	Supplied — 5 L/min minimum
DHW cylinder control thermistor	75°C
Temp and pressure relief valve	90°C / 0.7 MPa (7 bar)
Dimensions (W × D × H)	595 × 680 × 1600 mm
Weight — empty / full	81 kg / 287 kg
Control board electrical supply	220–240V, 50Hz, single phase (optionally powered by outdoor unit)
Control board fuse rating (MCB)	10 A
Immersion heater electrical supply	220–240V, 50Hz, single phase
Immersion heater capacity	3 kW
Immersion heater max running current	13 A
Immersion heater fuse rating (MCB)	16 A
Mechanical zones	DHW and 1 heating zone (optional 2-zone accessory pack available)
Optional wireless room control	PAR-WT60R-E wireless controller and PAR-WR61R-E receiver
Country of manufacture	United Kingdom

What's included in the package

• Flow Temperature Controller (FTC7) with main controller and temperature sensors
• Pumps and valves for Zone 1 and DHW use
• Flow sensor
• Plate heat exchanger
• Scale trap
• 3 kW immersion heater

What you'll also need (sold separately)

• Compatible Mitsubishi Ecodan outdoor monobloc unit
• Optional 2-zone accessory pack, if a second heating zone is required
• PAR-WT60R-E wireless controller and PAR-WR61R-E receiver, if wireless room control is preferred over wired
• Anti-freeze valves on primary flow and return
• Magnetic system filter on the primary return
• Condensate drain kit for the outdoor unit

Frequently Asked Questions

What does "packaged" mean for this cylinder?

The FTC7 controller, pumps, valves, flow sensor, plate heat exchanger, scale trap and immersion heater are all factory-fitted and pressure-tested inside the cabinet before it leaves Mitsubishi's UK factory. The installer connects primary flow/return, DHW, cold feed and electrics — no on-site assembly of these internal components is needed.

Is this cylinder suitable for an unvented setup?

Yes — the EHPT20X-MEHEW is unvented and includes a pressure and temperature relief valve rated to 90°C / 0.7 MPa (7 bar). A G3-qualified installer is required to commission the unvented hot water side per UK Building Regulations.

Can this run two heating zones?

As standard the cylinder is configured for DHW and 1 heating zone. An optional 2-zone accessory pack is available if your system needs independent control of two heating circuits — for example underfloor heating and radiators.

Which outdoor units is this compatible with?

The EHPT20X-MEHEW pairs with Mitsubishi Ecodan monobloc outdoor units running the FTC7 control platform. Confirm your specific outdoor unit generation and capacity with our team if you're unsure of compatibility.

Does this cylinder need MELCloud set up separately?

No separate Wi-Fi interface is needed — MELCloud connectivity is built in to the FTC7 controller inside this cylinder, ready to pair with the free MELCloud app.

How heavy is this cylinder once installed?

81 kg empty, 287 kg full of water. Ensure the floor at the installation location can support the full weight, and plan access routes accordingly given the 1600 mm height.
