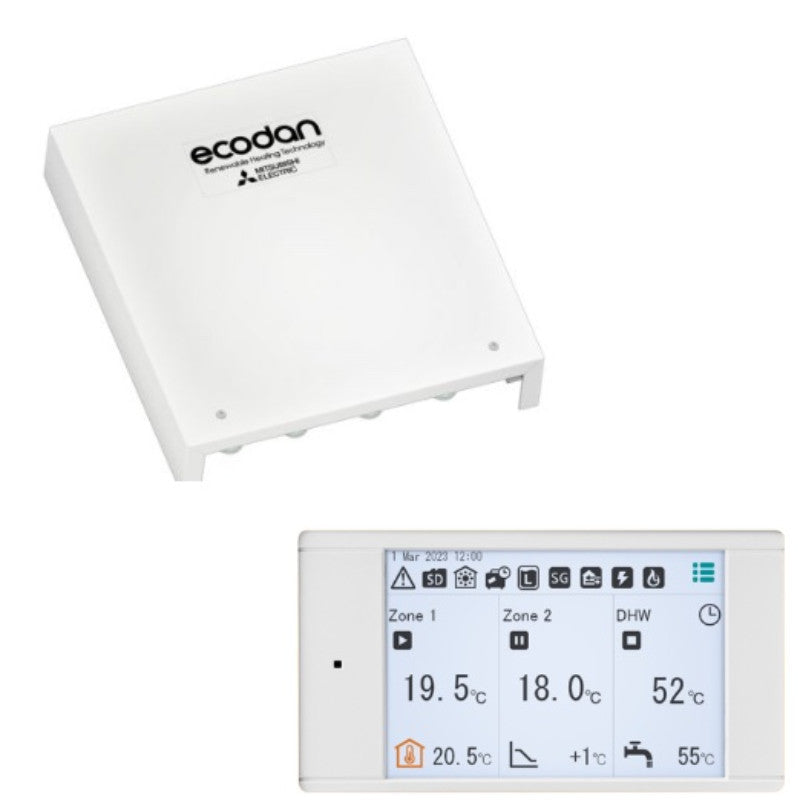

Mitsubishi Ecodan FTC7 Master Controller (PAC-IF082B-E) for Third-Party Indoor Units

Description

The Mitsubishi PAC-IF082B-E is the standalone FTC7 master controller for integrating a Mitsubishi Ecodan outdoor unit with a third-party hydraulic indoor kit, custom cylinder configuration, or commercial system. It contains the full FTC7 control logic, scheduling, weather compensation, energy metering and two-zone control — packaged for separate wall-mounting rather than embedded inside a pre-plumbed cylinder.

FTC7

Control logic

Wall-mount

Format

2-zone

Capability

MELCloud

Wi-Fi ready

Modbus

BMS ready

R32 + R290

Compatibility

When to specify this controller

Use it when pairing a Mitsubishi Ecodan outdoor unit with a non-Mitsubishi cylinder (e.g. Cordivari, OSO, Vaillant), in multi-zone bespoke systems, or as part of a commercial install with custom buffer/cylinder configuration.

Not needed with pre-plumbed FTC7 cylinder

If you're choosing the standard Mitsubishi FTC7 pre-plumbed cylinder, you don't need this controller — it comes pre-built into the cylinder. This is for third-party indoor configurations only.

Key features

Full FTC7 Logic

Single or two-zone control, weather compensation, scheduling, frost protection, defrost management and immersion backup control built in.

Built-In Energy Metering

Outputs measured energy data to MELCloud and via Modbus — essential for MCS compliance on third-party cylinder installs.

Wall-Mounted Enclosure

Compact enclosure for indoor location — typically inside the cylinder cupboard or adjacent plant area.

Universal Ecodan Compatibility

Pairs with every current Mitsubishi Ecodan R32 and R290 monobloc, single or three-phase.

Modbus + MELCloud

Supports both interfaces concurrently — MELCloud for homeowner app access, Modbus for BMS/EMS integration.

Mitsubishi UK Warranty

Full Mitsubishi UK manufacturer warranty when commissioned by an approved engineer.

Technical specification

Model code	PAC-IF082B-E
Mitsubishi part number	681713
Function	FTC7 master controller for third-party indoor units
Mounting	Wall-mounted enclosure
Zone capability	Single-zone or two-zone heating control
Connectivity	MELCloud-ready (Wi-Fi interface separate), Modbus RTU via CN105
Compatible outdoor units	All current Mitsubishi Ecodan R32 and R290 monobloc
Electrical supply	230V from indoor unit / FTC controller power

Required companion sensors (sold separately)

• Mitsubishi FTC7 Third Party Cylinder DHW Temp Sensor (PAC-TH011TK2-E)
• Mitsubishi FTC6 Flow & Return Temperature Sensors (PAC-TH011-E) — pair
• Mitsubishi FTC6 Third Party Indoor Unit Flow Sensor (PAC-FS01-E)

Frequently Asked Questions

Can I use this with an older Ecodan?

The FTC7 platform is the current generation. For older Mitsubishi systems running FTC4 or FTC6 firmware, this controller isn't a direct drop-in — you'd need to upgrade other system elements. Contact our team for compatibility advice on older systems.

Does this support cascade configurations?

The FTC7 supports cascade control via additional accessories. For multi-unit cascade setups, speak to our renewables team about complete system design.

What sensors do I need with this controller?

For a typical third-party cylinder install, you need: one PAC-TH011TK2-E (DHW tank sensor), a pair of PAC-TH011-E (primary flow + return), and one PAC-FS01-E (primary flow rate). All are sold separately and listed under our Mitsubishi accessories.

Is this OK for commercial/landlord use?

Yes — it's the standard choice for commercial Ecodan installs, multi-property landlords using bespoke cylinders, and any scenario where the standard pre-plumbed format doesn't fit.
