Mersen Modulostar 1000V DC Fuse Holder 10x38mm | CUS101HEL

Description

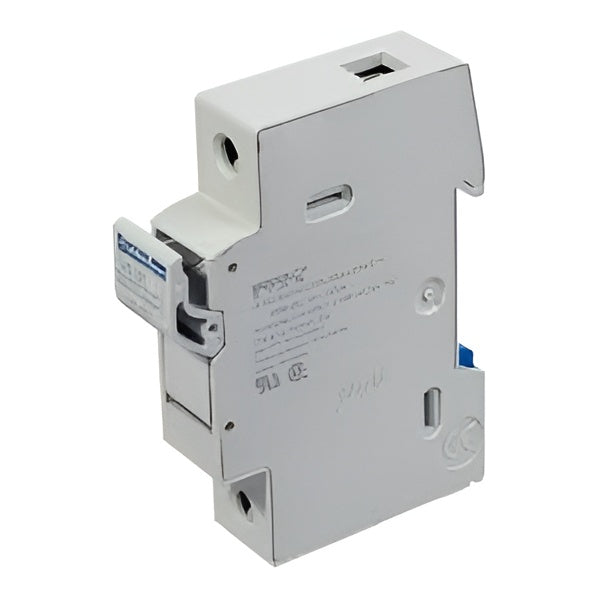

The Mersen HelioProtection Modulostar fuse holder CUS101HEL is a DIN rail mounting, single-pole fuse holder for Mersen HelioProtection 10 × 38mm PV string fuses. It is rated 1000V DC, 32A and takes rigid cable from 1 to 16mm².

Modulostar holders are widely used in low voltage distribution and are specially adapted for PV and DC applications. The plastic parts are UL94 V0 to V2 rated, the holder is RoHS compliant and has IP2X finger protection. Fit it with a Mersen HP6M or HP10M gPV fuse.

1000V DC

Rated voltage

32A

Nominal current

1 pole

Single-pole holder

DIN rail

Mounting

1 to 16mm²

Rigid wire

IP2X

Finger protection

Safety and compliance

Fuse holders must not be operated under load. Installation by a competent person in line with BS 7671. Where mounting with an SPD, check that the SPD's protection level is compatible with the holder's 6kV impulse withstand.

Polarity layout

Where possible, lay out the equipment so that positive and negative polarities are kept separate, because non-insulated conductive parts remain exposed.

Key features

DIN rail mounting

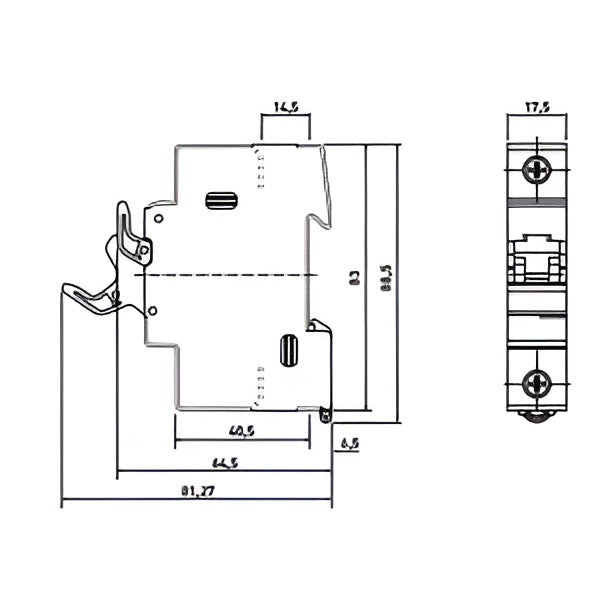

35mm DIN rail mounting, one 17.5mm module wide.

PV and DC rated

1000V DC, 32A rating specifically adapted for PV and DC circuits.

Fire-retardant plastics

Plastic parts are UL94 V0 to V2 rated and the holder is RoHS compliant.

Finger protection

IP2X protection against finger contact.

Wide wiring range

Accepts 1 to 16mm² rigid wire.

Matched to Mersen fuses

Compatible with Mersen HelioProtection 10 × 38mm fuses.

Technical specification

General

Parameter

Specification

Brand

Mersen (HelioProtection Modulostar)

Part number

CUS101HEL

Poles

1

Width

1 module (17.5mm)

Mounting

DIN rail

Compatible fuses

Mersen HelioProtection 10 × 38mm (HP6M, HP10M)

Electrical

Parameter

Specification

Nominal voltage (Ui)

1000V DC

Nominal current

32A

Isolation voltage (Uimp)

6kV

Pollution degree

2

Max. power losses in fuse link

3W

Wiring and mechanical

Parameter

Specification

Rigid wire

1 to 16mm²

Recommended screwdriver

PZ2 or flat 5.5 × 1mm (max. 6mm head)

Protection

IP2X (DC20B)

Plastic flammability

UL94 V0 to V2

Standards

Parameter

Specification

Compliance

IEC 60269-1, UL 4248, RoHS

Frequently asked questions

Which fuses fit this holder?

Mersen HelioProtection 10 × 38mm gPV fuses, including the HP6M and HP10M series.

Can I switch the circuit with the holder?

No. Do not operate the fuse holder under load. Isolate the circuit first.

What cable can I connect?

Rigid cable from 1 to 16mm². Use a PZ2 or 5.5 × 1mm flat screwdriver and do not exceed the maximum torque.

Does it have a blown fuse indicator?

The CUS101HEL listing does not include one. Mersen offers a separate version of the series with a blown fuse indicator light.

How is it mounted?

On 35mm DIN rail, taking up one 17.5mm module.
