Mersen 15A 1000V DC gPV String Fuse 10x38mm | HP10M15

Description

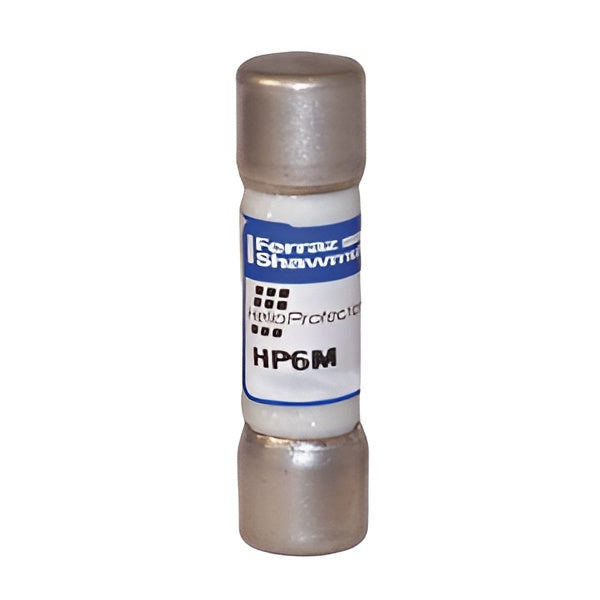

The Mersen HelioProtection HP10M15 string fuse is a 15A, 1000V DC gPV fuse in a 10 × 38mm body, designed to protect PV modules against reverse currents and ideal for managing strings in commercial PV systems. It suits a wide range of typical string configurations within the input parameters of three-phase inverters up to 50kW.

Mersen designs the HP10M series with a low minimum breaking capacity of 1.35 times the rated current so it can safely interrupt the low fault currents typical of PV arrays, while offering a 10kA maximum breaking capacity. It is UL listed, CSA certified and approved to IEC 60269-6 (gPV). Each fuse requires a suitable fuse holder.

15A

Rated current

1000V DC

Rated voltage

gPV

IEC 60269-6 fuse class

10kA

Max. breaking capacity

1.35 × In

Min. breaking capacity

10 × 38mm

Fuse size

Safety and compliance

Fuse selection and installation must be carried out by a competent person in line with the system design and BS 7671. Do not open or replace fuses under load.

Select the correct rating

The fuse rating must be lower than or equal to the module's maximum reverse current (IRM), at least 1.4 × Isc for an enclosure ambient of 45°C or less, and the rated voltage at least 1.2 × the string's open-circuit voltage. Higher enclosure temperatures need further derating. Fuses are not normally needed for one or two strings in parallel.

Fuse holder required

Pair with a Mersen HelioProtection Modulostar or UltraSafe fuse holder suitable for 10 × 38mm fuses, such as the CUS101HEL.

Key features

Reverse current protection

Designed to protect PV modules against reverse currents in multi-string arrays.

gPV class

gPV fuse approved to IEC 60269-6 for PV energy systems.

1000V DC rated

Maximum operating voltage equals the rated 1000V DC.

Low fault current interruption

1.35 × In minimum breaking capacity for safe interruption under typical PV fault conditions.

10kA breaking capacity

10kA maximum breaking capacity for robust short-circuit performance.

Global approvals

UL listed, CSA certified and IEC 60269-6 approved.

Technical specification

General

Parameter

Specification

Brand

Mersen (HelioProtection)

Part number

HP10M15

Series

HP10M, 1000V DC gPV

Rated current

15A

Rated voltage

1000V DC

Dimensions

38.1mm length, 10.4mm diameter (10 × 38mm)

Performance

Parameter

Specification

Maximum operating voltage

1000V DC (rated voltage)

Minimum breaking capacity

1.35 × In

Maximum breaking capacity

10kA

Power dissipation at 70% of rating

0.9W

Power dissipation at 80% of rating

1.3W

Power dissipation at 100% of rating

2.2W

Approvals

Parameter

Specification

Standards

UL listed, CSA certified, IEC 60269-6 (gPV)

Frequently asked questions

What is a gPV fuse?

A gPV fuse is a fuse-link designed to IEC 60269-6 for the protection of solar PV energy systems, with the low fault current breaking capability typical of PV arrays.

Do I need string fuses?

Fuses are not normally required with one or two strings in parallel. With three or more strings, check how many strings can run in parallel without protection using the module's reverse current rating.

What size fuse do I need?

The rating should be at least 1.4 × the module Isc and no higher than the module's maximum reverse current, with extra derating for hot combiner boxes.

What voltage rating is needed?

The fuse rated voltage should be at least 1.2 × the string's open-circuit voltage, to allow for cold-weather voltage rise.

Which fuse holders can I use?

Mersen Modulostar HelioProtection holders for 10 × 38mm fuses, including the US101HEL series, and the UltraSafe USGM1HEL series, which lists HP10M fuses.
