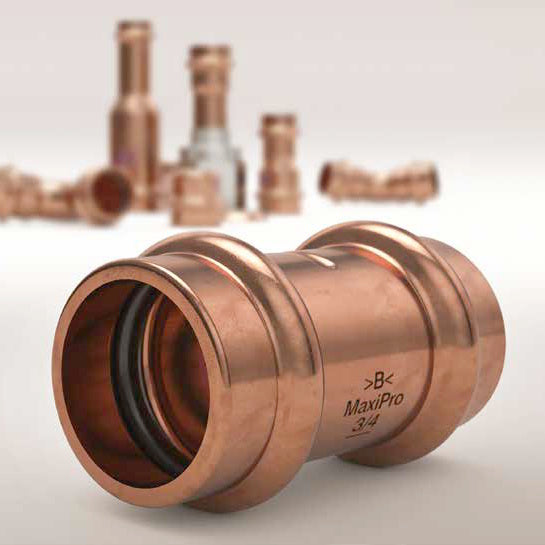

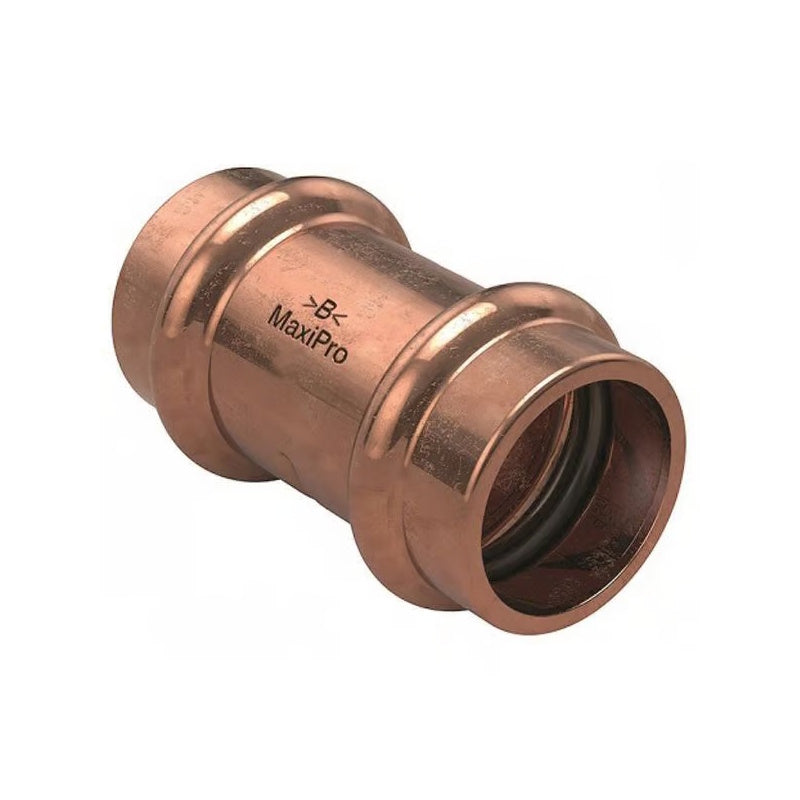

The Conex Bänninger MaxiPro straight coupler joins two lengths of copper tube with a flame-free press joint, so there is no brazing, no hot work permit and no nitrogen purge. It is made from refrigerant-grade copper with an HNBR O-ring and a 3-point press that forms a permanent, leak-tight joint on air conditioning, refrigeration and heat pump refrigerant pipework.
⚠ Trained installers only
Conex Bänninger states MaxiPro fittings must be installed by an installer who is trained and qualified to work on air conditioning and refrigeration installations and certified through the MaxiPro training course. The 10-year guarantee applies only to certified installers.
⚠ Air conditioning and refrigeration only
MaxiPro is approved for air conditioning and refrigeration use only. It is not approved for heating and hot water systems, drinking water or medical gas, and it is for copper-to-copper connections only. A pressed fitting can only be pressed once.
ℹ Press tool required
Approved 19 kN tools used with MaxiPro jaws include the Conel PM1, HILTI NPR 19-A, Klauke MAP219, ROTHENBERGER ROMAX Compact (TT), Novopress ACO102 and ACO103, Milwaukee M12, Ridgid RP 219, REMS Mini Press ACC and Roller Multi-Press Mini ACC. Check the current Conex Bänninger tool compatibility list, as use of non-listed tools may void the guarantee.
🔥
Flame-free jointing
No hot work permit, no gas bottles and no nitrogen purge. Work can be done during working hours with one engineer.
🎯
3-point press
Two presses either side of the bead and one compressing the O-ring give a permanent, tamper-proof joint.
🧪
Wide refrigerant range
Compatible with R32, R410A, R454B, R290 and many more. A2L, A2 and A3 refrigerants need additional standards to be met.
⚡
Earth continuity
Maintains electrical continuity without needing separate earth continuity straps.
🧼
Clean and bagged
Cleaned, bagged and labelled to the cleanliness requirements of EN 12735-1, EN 12735-2 and ASTM B280.
🛡️
10-year guarantee
10-year extended guarantee when installed by a trained and certified MaxiPro installer (terms apply).
Product
Range
MaxiPro press fittings
Type
Straight coupler (series MPA5270)
Sizes supplied
1/4", 3/8", 1/2", 5/8", 3/4"
Press tool
19 kN press tool with MaxiPro jaws (fittings up to 1 1/8")
Space for pressing
30 mm to wall and 60 mm clear for sizes 1/4" to 3/4"
Min. brazing distance from pressed joint
1/4": 250 mm | 3/8": 300 mm | 1/2": 350 mm | 5/8": 450 mm | 3/4": 500 mm
Performance
Maximum operating and abnormal pressure
48 bar (4800 kPa / 700 psig)
Burst pressure
> 144 bar (more than 3 x maximum operating pressure, EN 378-2)
Operating temperature
−40 °C to +121 °C continuous (UL listing); O-ring rated −40 °C to +140 °C
Leak tightness
Helium ≤ 7.5 × 10⁻⁷ Pa·m³/s at +20 °C, 10 bar
Approved oils
POE, PAO, PVE, AB and MO
Materials and tube
Fitting material
Refrigerant-grade copper (UNS C12200, min. 99.9 % pure)
Approved tube
Hard, half-hard or annealed copper tube to EN 12735-1, EN 12735-2 or ASTM B280
Connections
Copper to copper only
Applications
Air conditioning, refrigeration and heat pump (refrigerant side)
Refrigerants
Compatible refrigerants
Includes R32*, R410A, R134a, R404A, R407C, R407F, R1234yf*, R1234ze*, R290* and R454B* (full list in the Conex Bänninger technical brochure)
Not suitable for
R-22, R-717, R-723, R-764 and R-744
* A2L / A2 / A3 refrigerants
Additional or specific standards, local rules, regulations and codes of practice may apply
Standards and approvals
Compliance
EN 378-2, ISO 5149-2, EN 14276-2, ISO 14903 (tightness, pressure-temperature-vibration and freezing tests), UL listed (SA44668)
Salt spray
ASTM G85 compliant
Guarantee
10-year extended guarantee when installed by a trained and certified MaxiPro installer
Do I need a special press tool?
Yes. MaxiPro fittings must be pressed with an approved press tool and MaxiPro jaws. For inch sizes up to 1 1/8" a 19 kN press tool is suitable.
Can I press the fitting twice if the first press leaks?
No. A MaxiPro fitting must only be pressed once. If a pressed fitting leaks, cut it out and replace it. Do not braze a leaking pressed fitting.
Is it suitable for R32?
Yes, R32 is on the compatible refrigerant list. R32 is an A2L lower-flammability refrigerant, so additional or specific standards, local rules and codes of practice may apply.
Can I use it with soft copper coil?
Yes. MaxiPro works with annealed coil, half-hard and hard tube to EN 12735-1, EN 12735-2 or ASTM B280. Keep coil tube round and check the MaxiPro tube compatibility tables for wall thickness.
Can I use it on heating or hot water pipework?
No. MaxiPro is approved for air conditioning and refrigeration only, and is not approved for heating and hot water, drinking water or medical gas.
How close can I braze to a pressed joint?
Brazing near a pressed joint can damage the O-ring seal. Keep at least 250 mm for 1/4", 300 mm for 3/8", 350 mm for 1/2", 450 mm for 5/8" and 500 mm for 3/4", or use a heat barrier.
