MaxiPro 5/8" 90° Press Bend | Pack of 3

Description

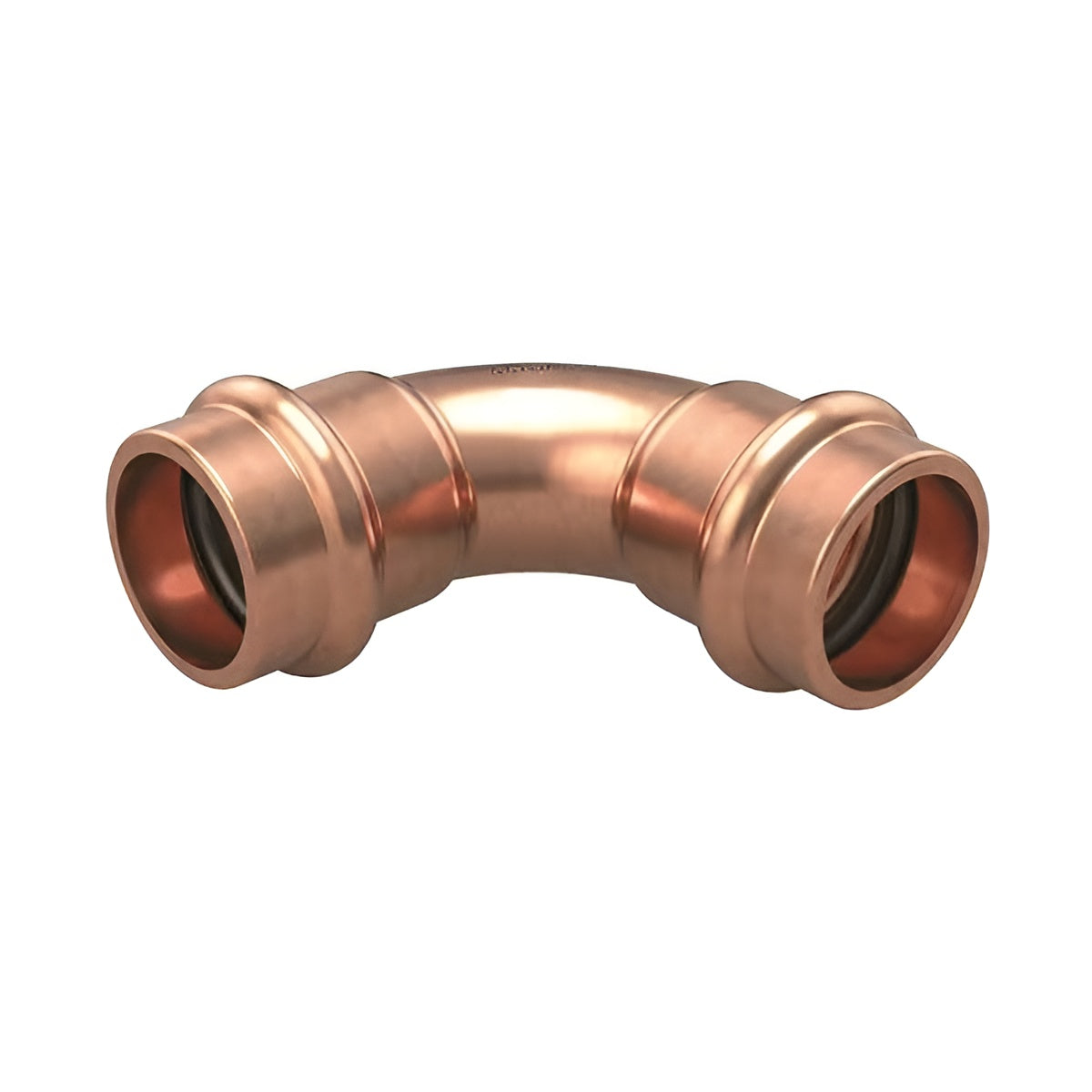

The Conex Bänninger MaxiPro 5/8" 90° bend changes the direction of copper refrigerant tube with a flame-free press joint. It is a compact, standard radius elbow for tight spots where there is no room to form a bend in the tube or handle a torch, and it joins air conditioning, refrigeration and heat pump pipework with no brazing and no nitrogen purge.

Made from refrigerant-grade copper with an HNBR O-ring, it is rated to 48 bar and is compatible with R32 and R410A. On sizes from 1/2" up, a hook feature maintains the fitting's high-pressure performance.

5/8"

Fitting size

48 bar

Max operating pressure

> 144 bar

Burst pressure

3-point

Press technology

−40 to +121 °C

Continuous operating range

10 years

Guarantee (certified installers)

⚠ Trained installers only

Conex Bänninger states MaxiPro fittings must be installed by an installer who is trained and qualified to work on air conditioning and refrigeration installations and certified through the MaxiPro training course. The 10-year guarantee applies only to certified installers.

⚠ Air conditioning and refrigeration only

MaxiPro is approved for air conditioning and refrigeration use only. It is not approved for heating and hot water systems, drinking water or medical gas, and it is for copper-to-copper connections only. A pressed fitting can only be pressed once.

ℹ Press tool required

Approved 19 kN tools used with MaxiPro jaws include the Conel PM1, HILTI NPR 19-A, Klauke MAP219, ROTHENBERGER ROMAX Compact (TT), Novopress ACO102 and ACO103, Milwaukee M12, Ridgid RP 219, REMS Mini Press ACC and Roller Multi-Press Mini ACC. Check the current Conex Bänninger tool compatibility list, as use of non-listed tools may void the guarantee.

⚠ Standard radius, not long radius

This is the standard radius MaxiPro 90° bend (series MPA5002). Conex Bänninger also makes a long radius 90° bend for applications that are sensitive to pressure loss.

Key features

↪️

Compact 90° turn

Short, standard radius body fits into tight pipe runs and congested ceiling voids.

📉

Lower pressure drop than brazed

Equivalent length of tube is 33.02 mm for the 5/8" MaxiPro 90° bend, against 40.64 mm for a brazed standard radius elbow.

🎯

3-point press

Two presses either side of the bead and one on the O-ring give a permanent, leak-tight joint.

🔥

Flame-free jointing

No hot work permit, no nitrogen purge, which suits occupied buildings.

⚡

Earth continuity

Maintains electrical continuity without separate earth straps.

🛡️

10-year guarantee

10-year extended guarantee when fitted by a trained and certified MaxiPro installer (terms apply).

Technical specification

Product

Brand

Conex Bänninger

Range

MaxiPro press fittings

Type

90° bend, standard radius (series MPA5002)

Part code

MPA5002 0050001

Size

5/8"

Dimensions

L = 39.0 mm, Z = 18.0 mm

Insertion depth

22.0 mm

Min. distance between pressings

15 mm

Equivalent length of tube

33.02 mm

Press tool

19 kN press tool with MaxiPro jaws

Space for pressing

30 mm to wall and 60 mm clear

Performance

Maximum operating and abnormal pressure

48 bar (4800 kPa / 700 psig)

Burst pressure

> 144 bar (more than 3 x maximum operating pressure, EN 378-2)

Operating temperature

−40 °C to +121 °C continuous (UL listing); O-ring rated −40 °C to +140 °C

Leak tightness

Helium ≤ 7.5 × 10⁻⁷ Pa·m³/s at +20 °C, 10 bar

Vacuum

200 microns

O-ring

HNBR

Approved oils

POE, PAO, PVE, AB and MO

Materials and tube

Fitting material

Refrigerant-grade copper (UNS C12200, min. 99.9 % pure)

Approved tube

Hard, half-hard or annealed copper tube to EN 12735-1, EN 12735-2 or ASTM B280

Connections

Copper to copper only

Applications

Air conditioning, refrigeration and heat pump (refrigerant side)

Refrigerants

Compatible refrigerants

Includes R32*, R410A, R134a, R404A, R407C, R407F, R1234yf*, R1234ze*, R290* and R454B* (full list in the Conex Bänninger technical brochure)

Not suitable for

R-22, R-717, R-723, R-764 and R-744

* A2L / A2 / A3 refrigerants

Additional or specific standards, local rules, regulations and codes of practice may apply

Standards and approvals

Compliance

EN 378-2, ISO 5149-2, EN 14276-2, ISO 14903 (tightness, pressure-temperature-vibration and freezing tests), UL listed (SA44668)

Salt spray

ASTM G85 compliant

Guarantee

10-year extended guarantee when installed by a trained and certified MaxiPro installer

Frequently asked questions

When would I use a press bend instead of bending the tube?

A press bend is useful where a tight turn is needed, where hard or half-hard straight tube is used, or where brazing is not practical. Soft coil can also be bent by hand or with a bending spring.

Do I need a special press tool?

Yes. MaxiPro fittings must be pressed with an approved press tool and MaxiPro jaws. A 19 kN tool suits inch sizes up to 1 1/8". Each fitting can only be pressed once.

Can the fitting rotate slightly after pressing?

Conex Bänninger states that some rotational movement in small pressed elbows is acceptable and does not affect the security of the joint. Do not deliberately rotate a joint after pressing.

Is it suitable for R32?

Yes. R32 is on the compatible refrigerant list. As an A2L refrigerant, additional or specific standards, local rules and codes of practice may apply.

What tube does it fit?

It fits 5/8" copper tube to EN 12735-1, EN 12735-2 or ASTM B280, in hard, half-hard or annealed condition. Check the MaxiPro tube compatibility tables for wall thickness.
