Manual Press Fit Pressing Tool Set 16-32mm | 4 Heads

Description

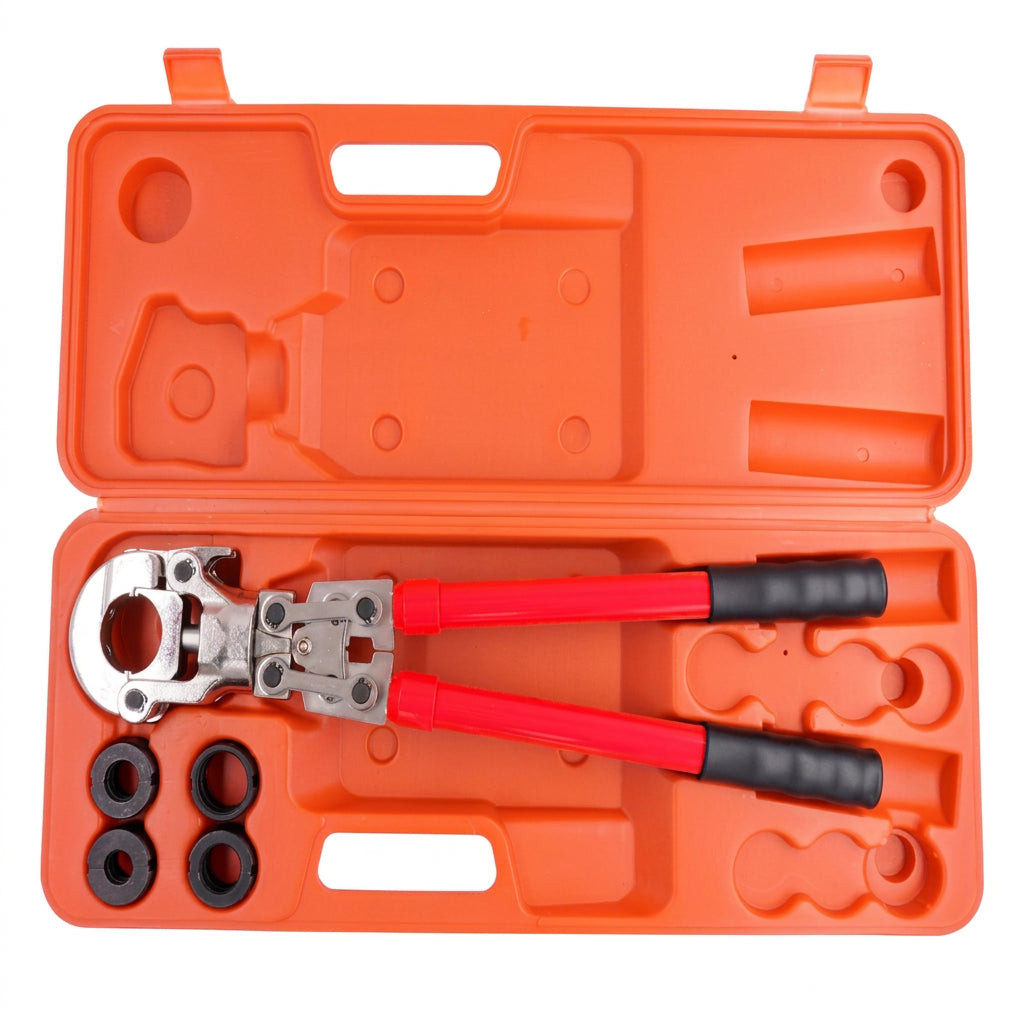

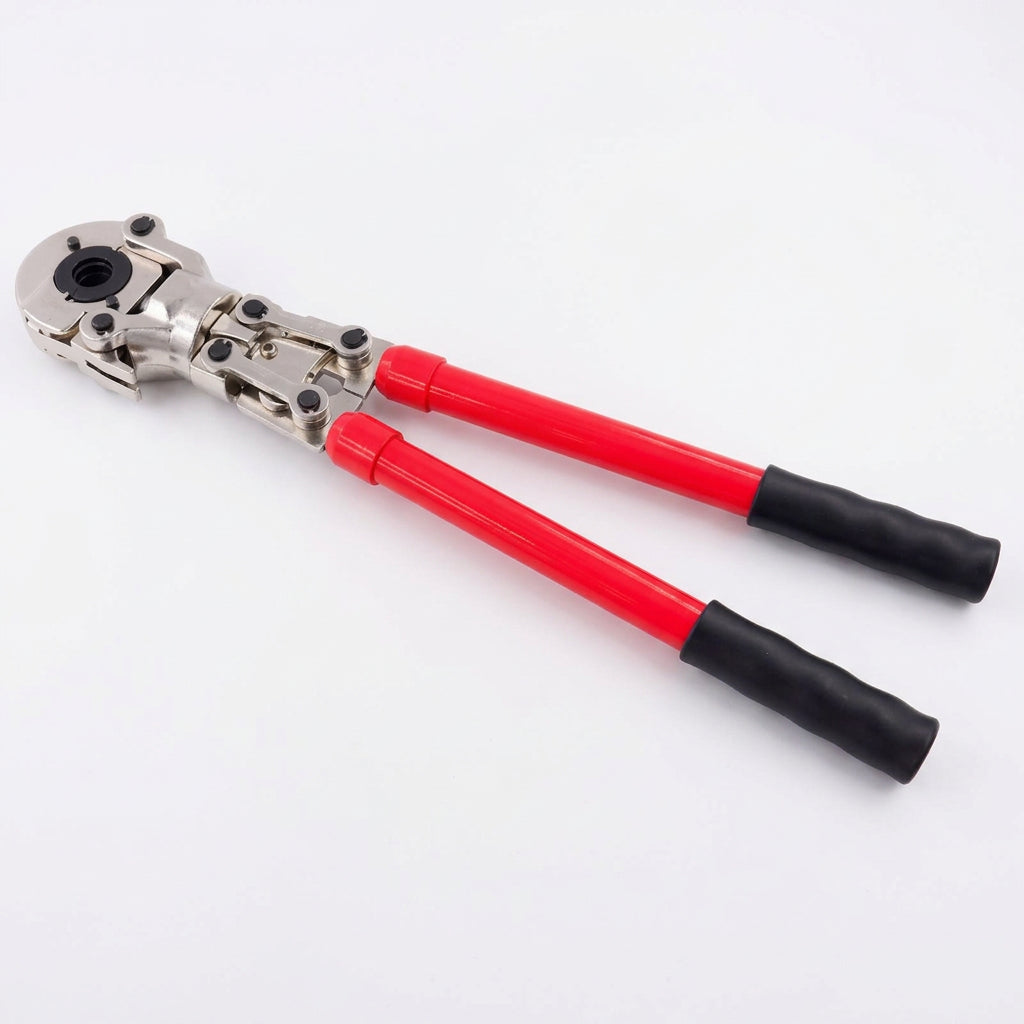

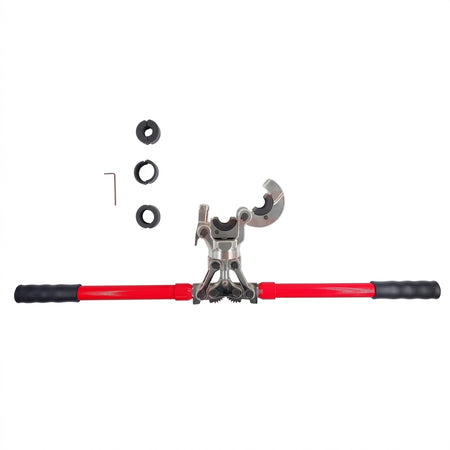

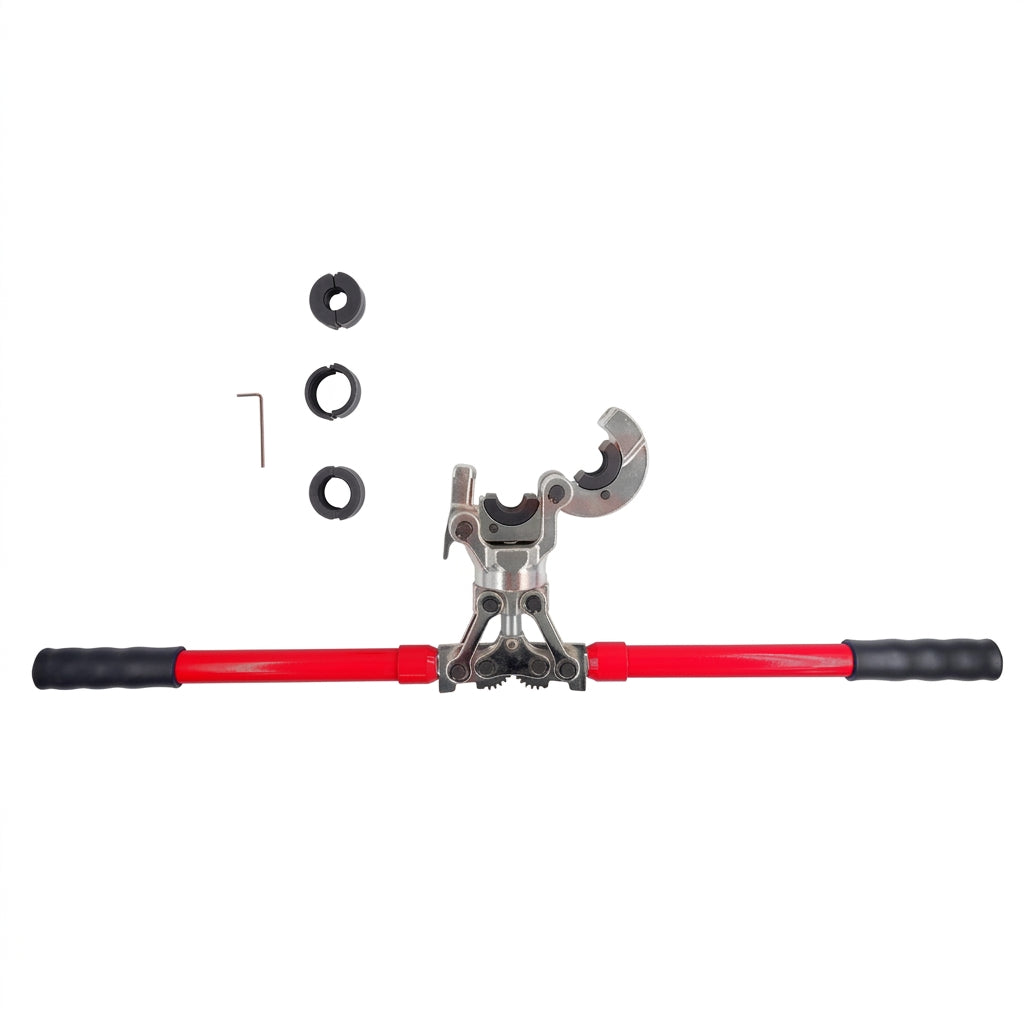

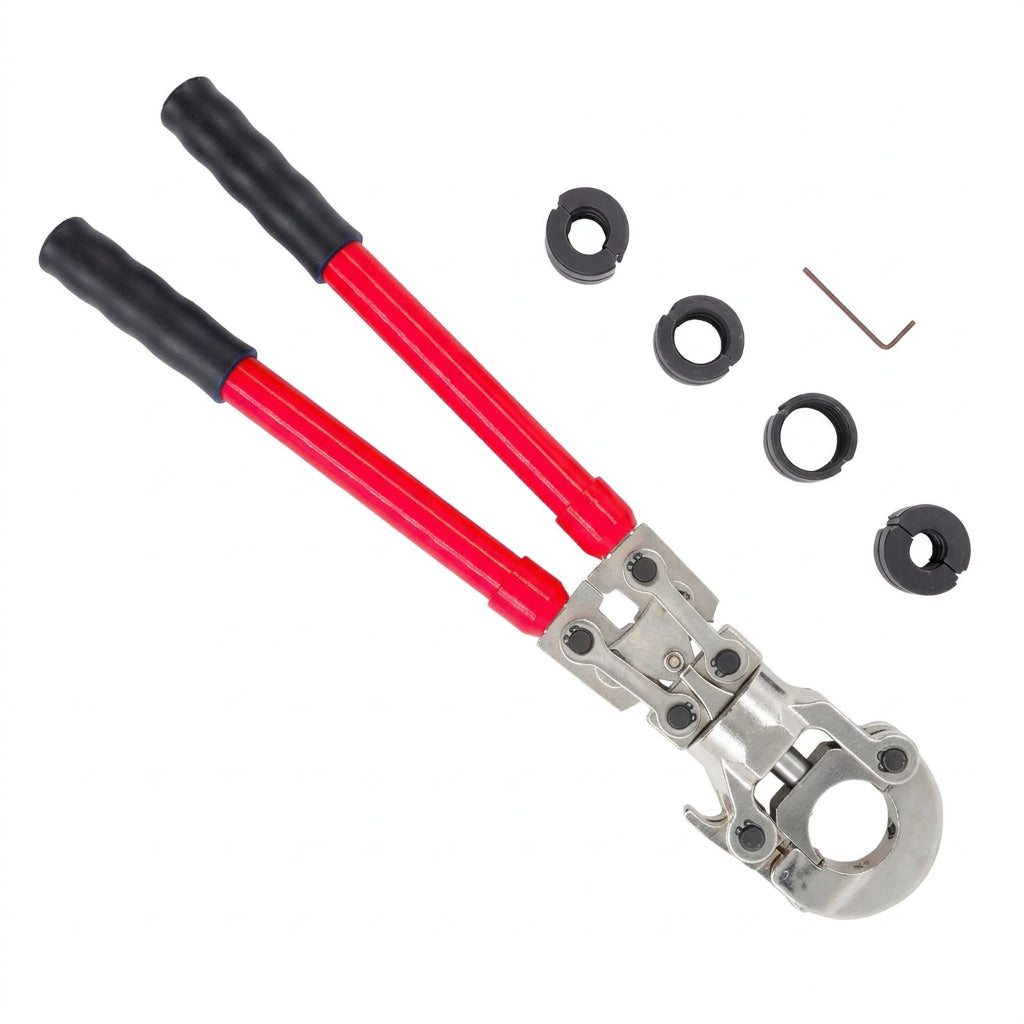

The Adjustable Manual Pressing Clamp Tool Complete Set (product code SYQ16-32-U) is a Press Fit tool set for 16mm to 32mm pipe, used for crimping Press Fit fittings onto PEX-AL-PEX pipe. It is supplied with 16, 20, 25 and 32mm clamp heads, so the set covers the full pipe range.

The tool is specifically designed to form a secure double seal on the fitting. It is only required for Press Fit fittings: it is not needed for compression fittings such as pipe connector cores fitted to manifolds.

16–32mm

Pipe range

4

Clamp heads included

16/20/25/32

Head sizes (mm)

Manual

Operation

PEX-AL-PEX

Pipe type

Double seal

Joint formed

For Press Fit fittings only

This tool is not required for compression fittings, such as pipe connector cores connecting to manifolds. Use it only with Press Fit fittings on PEX-AL-PEX pipe.

Match the clamp head to the pipe size

Fit the correct clamp head (16, 20, 25 or 32mm) for the pipe and fitting before pressing, and pressure test the completed pipework before it is covered or commissioned.

Key features

Complete set

Includes 16, 20, 25 and 32mm clamp heads for the full 16mm to 32mm range.

Double seal

Specifically designed to form a secure double seal on Press Fit fittings.

Manual and adjustable

A manual, adjustable pressing tool for on-site use with no power source needed to hold the joint.

Designed for PEX-AL-PEX

Crimps Press Fit fittings onto PEX-AL-PEX multilayer pipe.

Wide range

One set covers 16mm to 32mm pipe.

Clearly coded

Supplied under product code SYQ16-32-U.

Technical specification

Tool

Product type

Adjustable manual pressing clamp tool, complete set

Product code

SYQ16-32-U

Pipe range

16mm to 32mm

Clamp heads included

16mm, 20mm, 25mm and 32mm

Application

Fittings

Press Fit fittings

Pipe

PEX-AL-PEX

Not required for

Compression fittings, such as pipe connector cores on manifolds

Frequently asked questions

What does the Pressing Clamp Tool do?

It crimps Press Fit fittings onto PEX-AL-PEX pipe, forming a secure double seal.

Which clamp heads are included?

The complete set includes 16mm, 20mm, 25mm and 32mm clamp heads.

Do I need this tool for compression fittings?

No. It is only required for Press Fit fittings. Compression fittings, such as pipe connector cores connecting to manifolds, are not pressed with this tool.

What pipe is it designed for?

It is designed for PEX-AL-PEX pipe in the 16mm to 32mm range.

What is the product code?

The product code is SYQ16-32-U.
