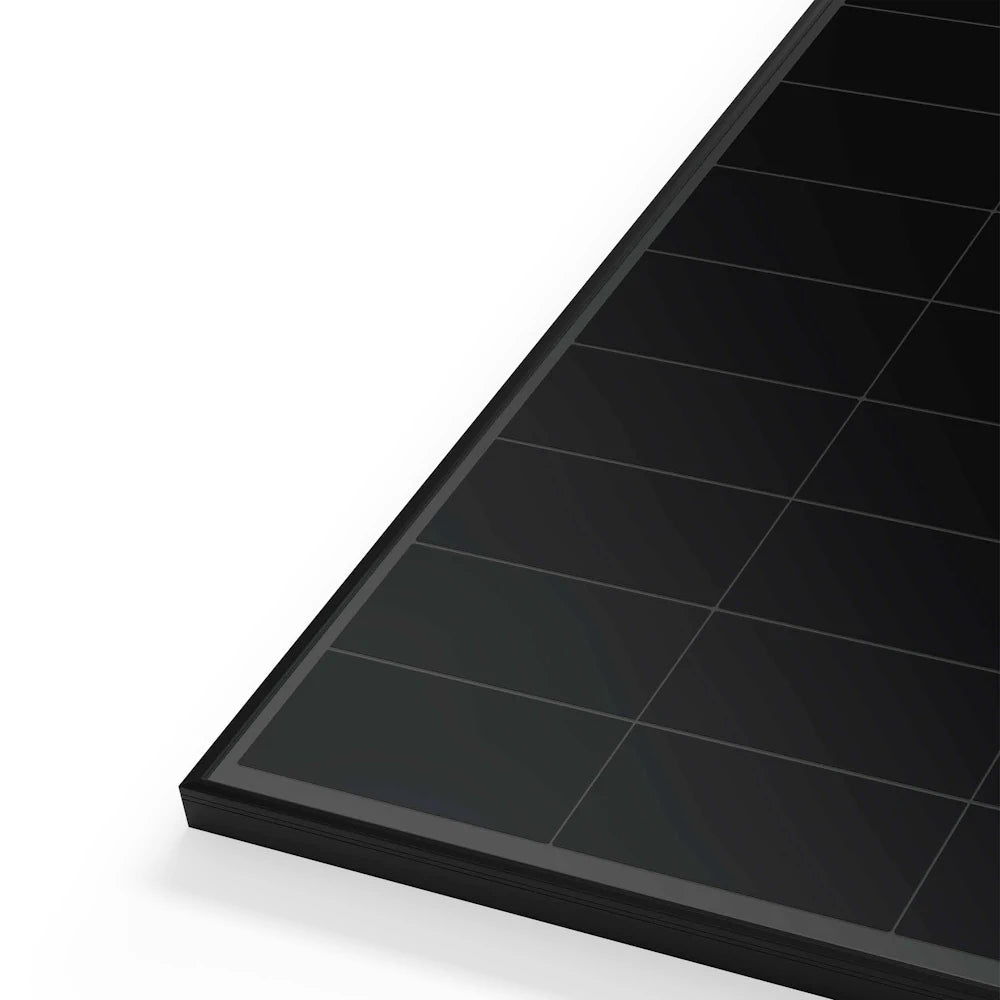

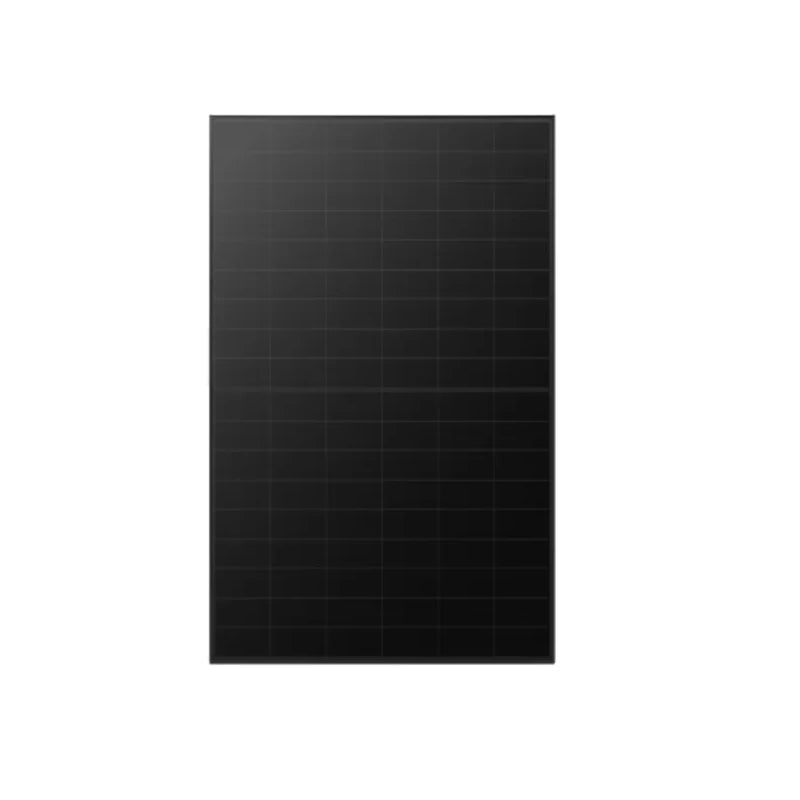

Longi 475W Hi-MO X10 Artist HP Back Contact Half Cell All Black

The Longi 475W Hi-MO X10 Artist HP Back Contact Half Cell All Black (Part No: LR7-54HVB-475M) is a high-efficiency monocrystalline solar panel designed for residential and commercial applications, featuring advanced HPBC cell technology for superior performance and an all-black aesthetic.

Product Description

The Hi-MO X10 Artist series utilizes Hybrid Passivated Back Contact (HPBC) cells to achieve up to 23.3% module efficiency, providing excellent power output in a compact form. Its all-black design ensures seamless integration with various roof types, while the half-cell configuration reduces shading losses and improves reliability. Ideal for space-constrained installations, it offers long-term energy generation with minimal degradation.

Key Features

• High efficiency: Up to 23.3% module efficiency for maximum power generation.
• HPBC cell technology: Hybrid Passivated Back Contact for improved performance and low-light response.
• All-black design: Aesthetic appeal with pure black frame and backsheet for elegant integration.
• Half-cell configuration: 108 half-cut cells reduce power loss from shading and hotspots.
• Low degradation: <1% first-year power degradation, 0.40% annual from year 2-30.
• Robust construction: Compliant with IEC 61215, IEC 61730, UL 61730 standards.
• Power tolerance: 0 to +3% for reliable output.

Technical Specifications

• Model: LR7-54HVB-475M – Hi-MO X10 Artist HPBC Half Cell All Black.
• Cell type: Monocrystalline, 108 half-cut cells.
• Maximum power (Pmax): 475 Wp.
• Voltage at Pmax (Vmpp): 33.16 V.
• Current at Pmax (Impp): 14.33 A.
• Open circuit voltage (Voc): 40.18 V.
• Short circuit current (Isc): 15.03 A.
• Module efficiency: 23.3%.
• Maximum system voltage: 1500 V DC.
• Maximum series fuse rating: 25 A.

Dimensions & Weights

• Length: 1800 mm.
• Width: 1134 mm.
• Thickness: 30 mm.
• Weight: 21.6 kg.

System & Application Notes

• Ideal for residential rooftops, commercial buildings, and ground-mounted systems where aesthetics and efficiency are key.
• Compatible with standard PV inverters and mounting systems.
• Optimized for low-light conditions and high-temperature environments.

• Installation by qualified solar professionals following LONGi guidelines and local regulations.
• Warranty: 25-year product warranty and 30-year linear power output warranty.
