Katko 200A 4-Pole AC Isolator IP65 | KEM 4200C YR MF11

Description

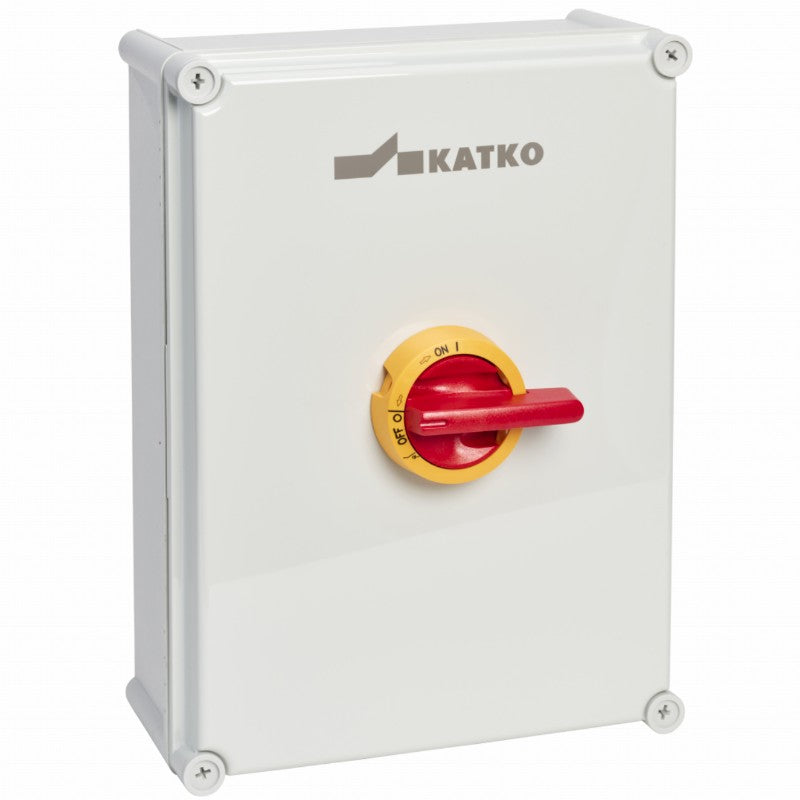

The Katko KEM 4200C YR MF11 200A 4-pole AC isolator is a front-operated load-break switch in an IP65 polycarbonate MF11 enclosure, built for large PV systems that need a high current rating. It is rated 200A at 400/415V (AC-21, AC-22) and 200A / 110kW (AC-23), with 200A AC-21 at 690V, and is tested to IEC 60947-3.

The self-extinguishing enclosure has excellent insulating properties, good UV resistance and a wide operating temperature range. The isolator is padlockable with up to 3 locks and has a door interlock with defeat mechanism, with a yellow and red handle for clear identification.

200A

Rated current

4-pole

AC load-break switch

IP65

Enclosure protection

690V

AC-21 rated voltage

110kW

AC-23 at 400/415V

3.5kg

Weight

Safety and compliance

Isolator installation must be carried out by a competent person in line with BS 7671. Always isolate and prove dead before working on the supply side.

Not supplied with terminal accessories

This isolator does not include terminal covers, phase barriers, screws, nuts or bolts. Order the required accessories separately. Aluminium cable cannot be connected directly to the switch terminals, so use a bimetal cable connector. The datasheet series heading shows IP66 for the range, while this model's product details state IP65.

Lockable

The isolator can be padlocked with up to 3 locks for safe isolation during maintenance.

Key features

High current rating

200A rating suits large PV systems and high-current AC circuits.

4-pole load-break

4-pole front-operated load-break switch isolates all live conductors and neutral.

IP65 enclosure

MF11 polycarbonate enclosure with IP65 protection and good UV resistance.

Padlockable

Lock off with up to 3 padlocks, with a door interlock and defeat mechanism.

Self-extinguishing

Self-extinguishing material with excellent insulating properties.

Tested to IEC 60947-3

Tested according to IEC 60947-3 for low-voltage switch-disconnectors.

Technical specification

General

Parameter

Specification

Brand

Katko

Model

KEM 4200C YR MF11

EAN

6419410323939

Switch type

Load break switch

Operation

Front-operated

Number of poles

4

Handle colour

Yellow / Red

Weight

3.5kg

Electrical

Parameter

Specification

Rated current

200A

AC-21 at 400/415V

200A

AC-21 at 690V

200A

AC-22 at 400/415V

200A

AC-23 at 400/415V

200A / 110kW

Terminal connection

Copper cable only, M8 bolt

Enclosure

Parameter

Specification

Enclosure type

MF11, polycarbonate

IP rating

IP65

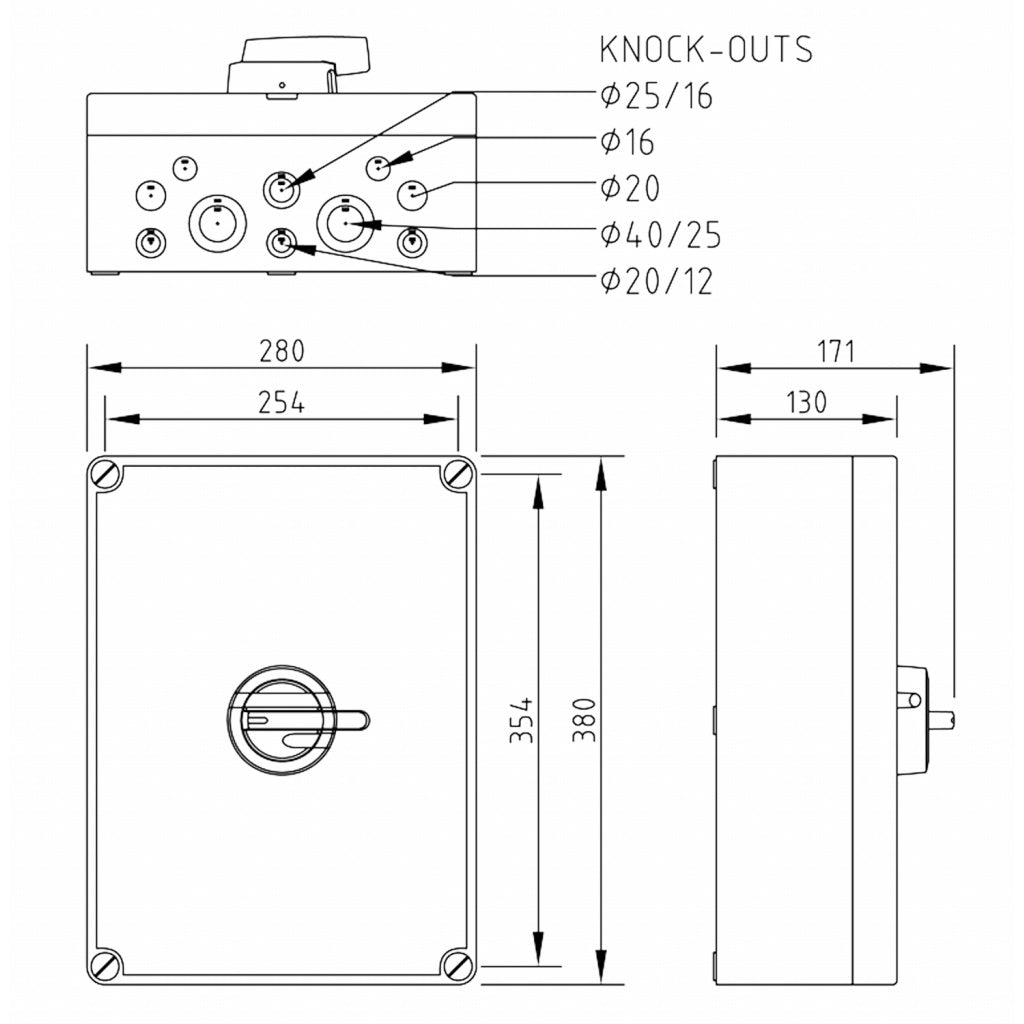

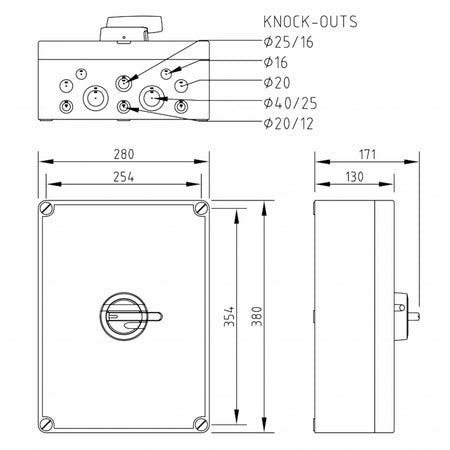

Box dimensions

380 × 280 × 130mm

Material

Self-extinguishing

Padlocking

Up to 3 locks

Standard

IEC 60947-3

Frequently asked questions

What is included with the isolator?

The isolator is supplied in its MF11 enclosure. It does not include terminal covers, phase barriers, screws, nuts or bolts.

Can I connect aluminium cable?

Not directly. Aluminium cable cannot be connected to the switch terminals, so use a bimetal cable connector.

What is the IP rating?

This model is rated IP65 for protection against dust and water jets.

Can it be padlocked?

Yes, the isolator is padlockable with up to 3 locks.

What cable connections does it accept?

The datasheet specifies copper cable only to the switch terminal, using an M8 bolt.
