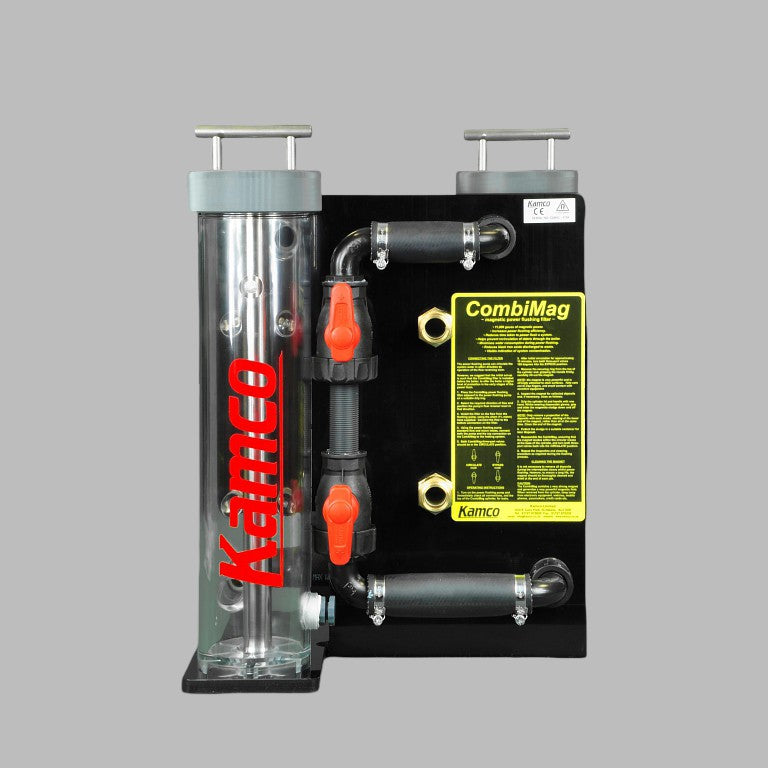

The Kamco CombiMag Split Twin is a commercial-grade magnetic power flushing filter developed from the standard CombiMag range, using two 11,000 gauss rare earth magnets to filter both the flow and return sides of the circuit at the same time. It's designed for use on commercial heating systems, typically alongside the Kamco Clearflow CF90 or CF210 power flushing pumps.
Because it captures magnetic iron oxide contamination from both flow and return simultaneously, regardless of which direction the pump's flow reverser is set to, the Split Twin removes debris faster than a single in-line filter — an important advantage on larger commercial systems where flush time and water consumption add up quickly. Two transparent cylinders with bypass valves allow each magnet to be inspected and cleaned without interrupting the power flush.
2 x 11,000 Gauss
Magnet Configuration
400 cm²
Total Magnet Surface Area
Flow + Return
Filters Simultaneously
CF90 / CF210
Designed For
Good to Know: Filters Both Flow and Return at Once
Unlike a single in-line filter, the Split Twin captures magnetic debris from both the flow and return sides of the circuit simultaneously, irrespective of which direction the power flushing pump's flow reverser is set to.
Please Note: Designed for Commercial Systems
CombiMag Split Twin is developed specifically for commercial heating systems, for use in conjunction with the Kamco Clearflow CF90 or CF210 power flushing pumps rather than smaller domestic-scale equipment.
Important: Strong Magnets — Handle With Care
Each of the two 11,000 gauss rare earth magnets is powerful and strongly attracted to steel surfaces. Take care not to trap fingers when removing them for cleaning, and keep them away from electronic equipment, watches, mobile phones and credit cards.
Twin Magnet Filtration
Two 11,000 gauss magnets spread over a combined 400 cm² surface area capture magnetic iron oxide from both sides of the circuit at once, rather than relying on a single filter point.
Filters Regardless of Flow Direction
Because both the flow and return are filtered simultaneously, debris is captured whichever way the pump's flow reverser lever is set.
Built for Commercial Flushing
Developed from the standard CombiMag specifically for commercial heating systems, matched to the higher flow rates of the Clearflow CF90 and CF210 pumps.
Bypass on Both Cylinders
Each of the two transparent cylinders has its own bypass valve, so either magnet can be removed and cleaned mid-flush without stopping the job.
Reduces Flush Time on Larger Systems
Filtering flow and return together reduces the time taken to flush a system and cuts down on the water consumed compared with single-point filtration.
Supplied Ready to Connect
The unit is supplied with two 1.5m hoses with 3/4" brass connectors at each end, plus a protective tool case, ready to install between the pump and the heating system.
| Product Details |
| Manufacturer |
Kamco |
| Product Name |
CombiMag Split Twin Power Flushing Filter |
| Manufacturer Code |
MI074 |
| Designed For Use With |
Kamco Clearflow CF90 or CF210 power flushing pumps |
| Supplied With |
2 x 1.5m hoses with 3/4" brass connectors, protective tool case |
| Magnet Specification |
| Number of Magnets |
2 x 11,000 gauss rare earth magnets |
| Combined Surface Area |
400 cm² |
| Cylinder Construction |
Twin transparent cyclone-design cylinders |
| Filtration Coverage |
Filters flow and return simultaneously |
| Installation |
| Connection |
Installed between the power flushing pump and the heating system |
| Hose Connectors |
3/4" brass connectors, 1.5m length |
| Cleaning Method |
Independent bypass valves on each cylinder |
| Application |
Commercial heating systems |
What makes the CombiMag Split Twin different from the standard CombiMag Solo?
The Split Twin uses two 11,000 gauss magnets to filter both the flow and return sides of the circuit at the same time, whereas the standard Solo filters a single line. It's built for commercial-scale systems rather than domestic ones.
Which pumps is the CombiMag Split Twin designed to work with?
It's designed for use in conjunction with the Kamco Clearflow CF90 or CF210 commercial power flushing pumps.
Does it matter which direction the flow reverser is set?
No. Because the Split Twin filters both flow and return simultaneously, magnetic debris is captured regardless of which direction the pump's flow reverser lever is set to.
Can both magnets be cleaned without stopping the power flush?
Yes. Each of the two cylinders has its own bypass valve, so either magnet can be taken out of circulation, cleaned, and put back without interrupting the flush.
What connections are supplied with the unit?
It comes with two 1.5m hoses fitted with 3/4" brass connectors at each end, along with a protective tool case, ready to install between the power flushing pump and the heating system.
