Intatec Intafil Slimline 18L Sealed System Kit | IFS18

Description

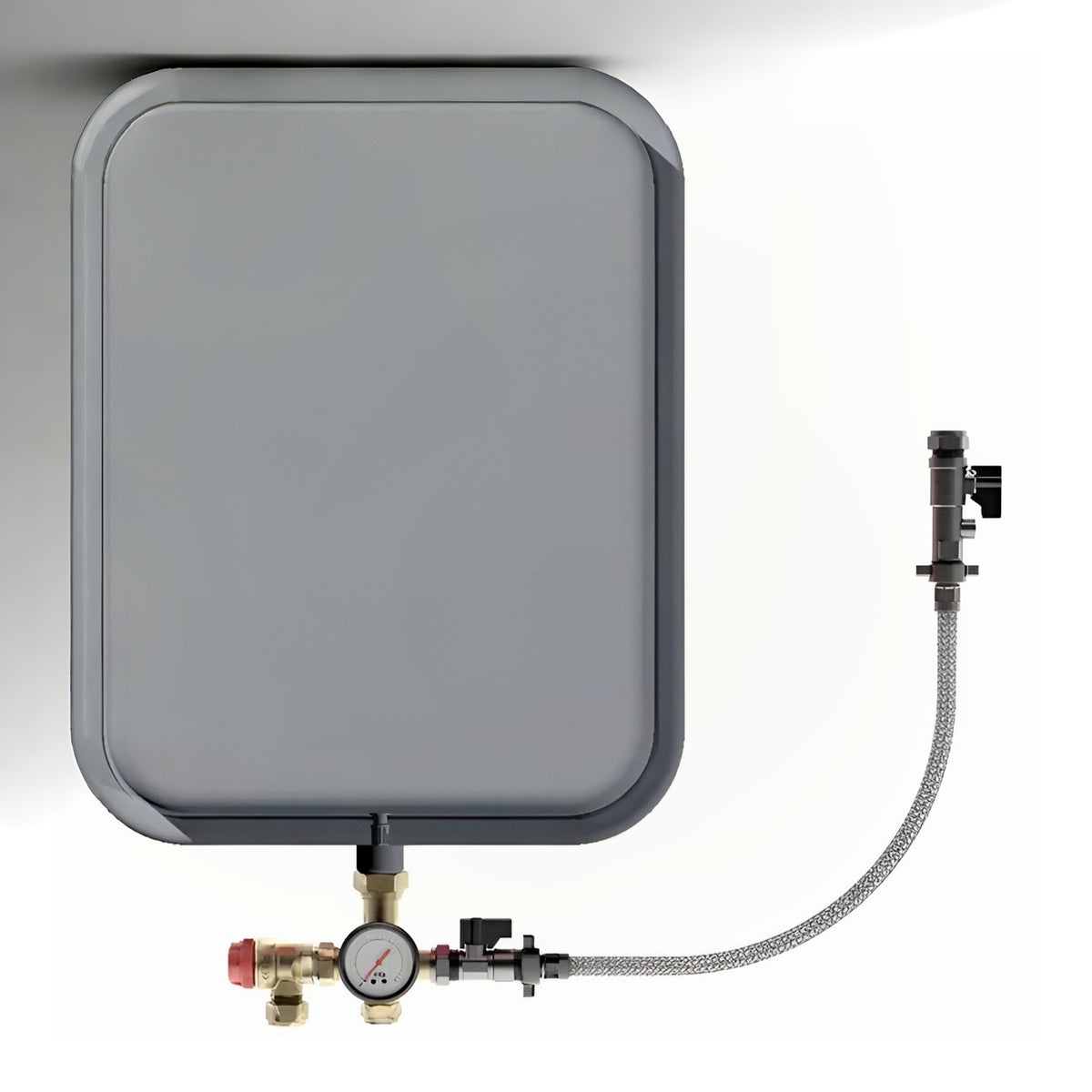

The Intatec Intafil Slimline 18L compact sealed system kit (IFS18) is an all-in-one solution for sealed heating systems where space is limited. It combines an 18 litre expansion vessel with wall bracket, an assembly connector, a safety relief valve with pressure gauge and a filling loop, and it complies fully with G24.1 and G24.2 of the water regulations.

A unique five-way connector gives the most flexible installation available, and the fixed wall bracket allows left or right-hand mounting. The 360° fully rotatable safety relief valve and compression joints connect directly to pipework, making the kit ideal for new and retro-fit installations.

18 litre

Expansion vessel

5-way

Unique connector

360°

Rotatable safety relief valve

350 × 158 × 450mm

W × D × H vessel

Left or right

Wall bracket mounting

G24.1 and G24.2

Water regulations

Safety and compliance

Sealed system installation, filling and commissioning must be carried out by a competent person. Route the safety relief valve discharge to a safe, visible point in line with the water regulations.

Sizing

This kit has an 18 litre vessel. The Intafil Slimline range is also made in 8, 12 and 24 litre capacities, so check the vessel size against your system volume before ordering.

What is in the kit

18 litre expansion vessel with mounting bracket, assembly connector, safety relief valve complete with pressure gauge, and filling loop.

Key features

Slimline compact design

Slimline vessel measuring 350mm wide, 158mm deep and 450mm high suits tight spaces.

All-in-one kit

Compact, all-in-one solution with vessel, connector, safety valve, gauge and filling loop.

Five-way connection

A unique five-way connector provides flexible pipework arrangements.

Left or right mounting

A fixed wall bracket permits left or right-hand installation.

Rotatable safety valve

360° fully rotatable safety relief valve for easy discharge routing.

Compression joints

Compression joints connect directly to pipework without extra adaptors.

Technical specification

General

Parameter

Specification

Brand

Intatec (Intafil Slimline)

Product code

IFS18

Product type

Compact sealed system kit

Vessel capacity

18 litres

Vessel dimensions (W × D × H)

350 × 158 × 450mm

Mounting

Fixed wall bracket, left or right installation

Kit contents

Parameter

Specification

Expansion vessel

18 litre, with mounting bracket

Assembly connector

Unique five-way connection

Safety relief valve

360° rotatable, complete with pressure gauge

Filling loop

Included

Compliance and connection

Parameter

Specification

Connections

Compression joints for direct pipework connection

Water regulations

Complies with G24.1 and G24.2

Installation type

New and retro-fit

Frequently asked questions

What is included in the kit?

An 18 litre expansion vessel with bracket, assembly connector, safety relief valve with pressure gauge and filling loop.

How big is the vessel?

The vessel measures 350mm wide, 158mm deep and 450mm high, making it suitable for installations where space is limited.

Can it be mounted on either side?

Yes. The fixed wall bracket permits left or right installations.

Does it comply with the water regulations?

Yes. The kit complies fully with G24.1 and G24.2 of the water regulations.

What other sizes are available?

The Intafil Slimline range is available in 8, 12, 18 and 24 litre capacity vessels. This listing is the 18 litre kit.
