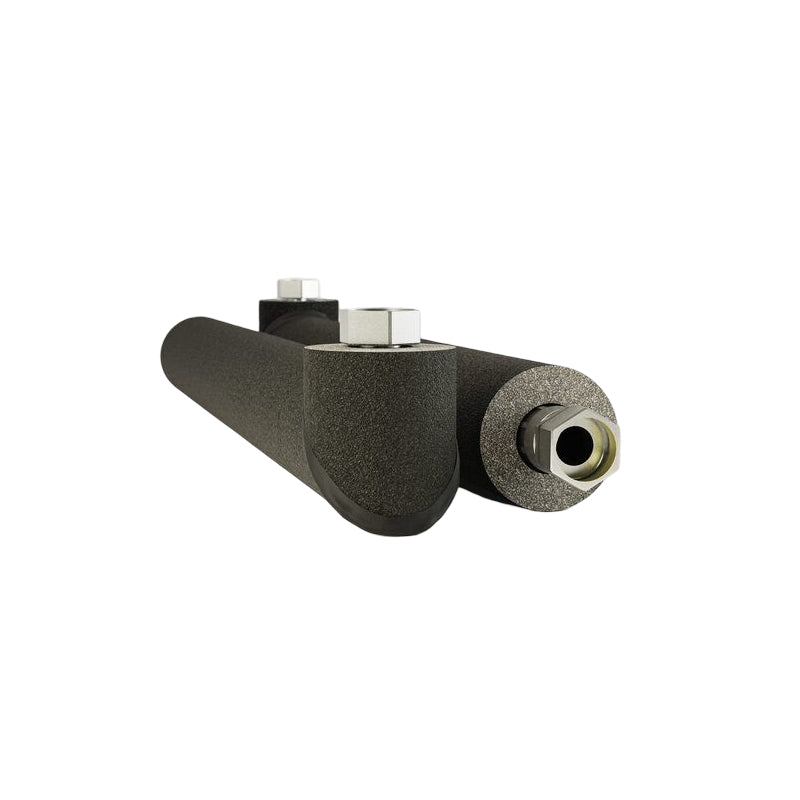

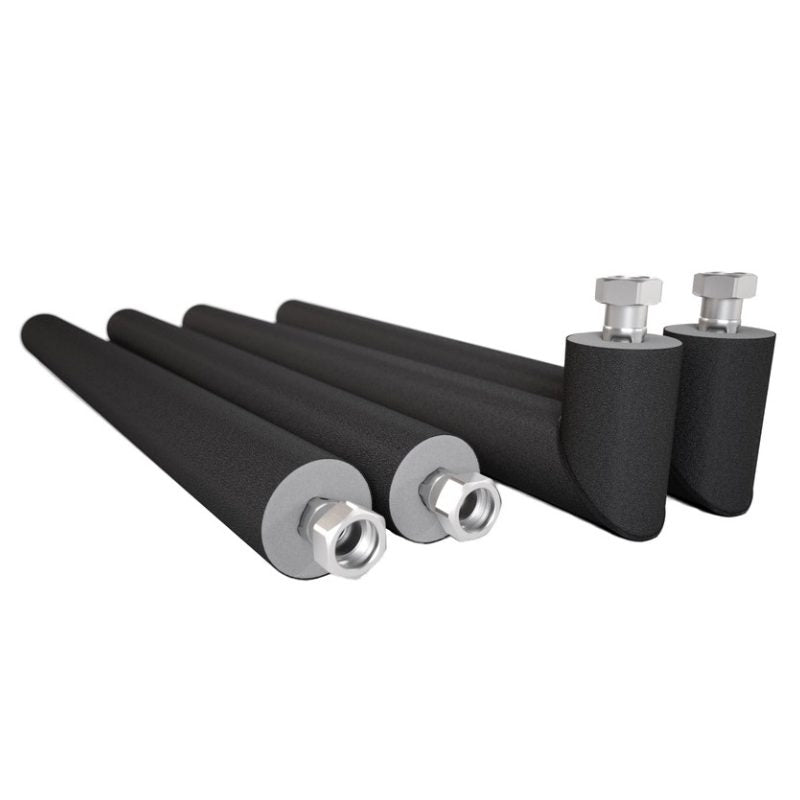

The Intaflex Heat Pump Hose Kit (Elbow, pair) is a pre-insulated flexible connection set designed to link an air source heat pump's flow and return ports to the rigid pipework of the primary heating circuit. Each hose is fitted with a 90° elbow at the pipework end, making it well suited to installations where the pipe run turns immediately away from the heat pump connection.
Manufactured by Intatec, the hoses are supplied in a matched pair to cover both the flow and return connections and arrive pre-insulated with 19mm thick Primary Pro insulation, designed to join seamlessly to rigid pipe insulation for continuous, unbroken thermal protection along the full external pipe run.
1" BSP F
Heat Pump Connection
28mm
Compression Connection
10 Bar
Max. Inlet Pressure
90°C
Max. Inlet Temperature
Key Features
90° Elbow Configuration
Each hose terminates in a 90° bend at the pipework connection, allowing the pipe run to turn immediately away from the heat pump without additional elbow fittings.
Stainless Steel Braided Hose
The flexible hose body is sleeved within stainless steel braid for mechanical protection and resistance to abrasion and vibration transfer from the heat pump.
Pre-Insulated for Continuity
Fitted with 19mm thick Primary Pro insulation, designed to connect directly to rigid pipe insulation so the whole external run stays covered, preserving system efficiency.
1" Female BSP Swivel
A 1" female BSP swivel connection at the heat pump end allows the hose to be fitted without twisting, simplifying alignment during installation.
28mm Compression Fitting
The pipework end uses a 28mm compression fitting, suitable for direct connection to standard copper pipe on the primary circuit.
MCS Installation Specification
Manufactured to meet MCS installation specification requirements for heat pump ancillary components.
Technical Specifications
General
Description
2 pack, 750mm pre-insulated hoses, 1" female swivel bent x 28mm
Configuration
90° elbow at pipework connection
Pack Quantity
2 hoses (pair)
Connections
Heat Pump End
1" female BSP swivel thread
Pipework End
28mm compression fitting
Performance
Max. Inlet Pressure (static)
10 bar
Max. Inlet Temperature
90°C
Compatible Medium
Water, Water + Glycol
Construction & Insulation
Hose Protection
Stainless steel braided sleeve
Insulation Thickness
19 mm, Primary Pro
Insulation Coverage

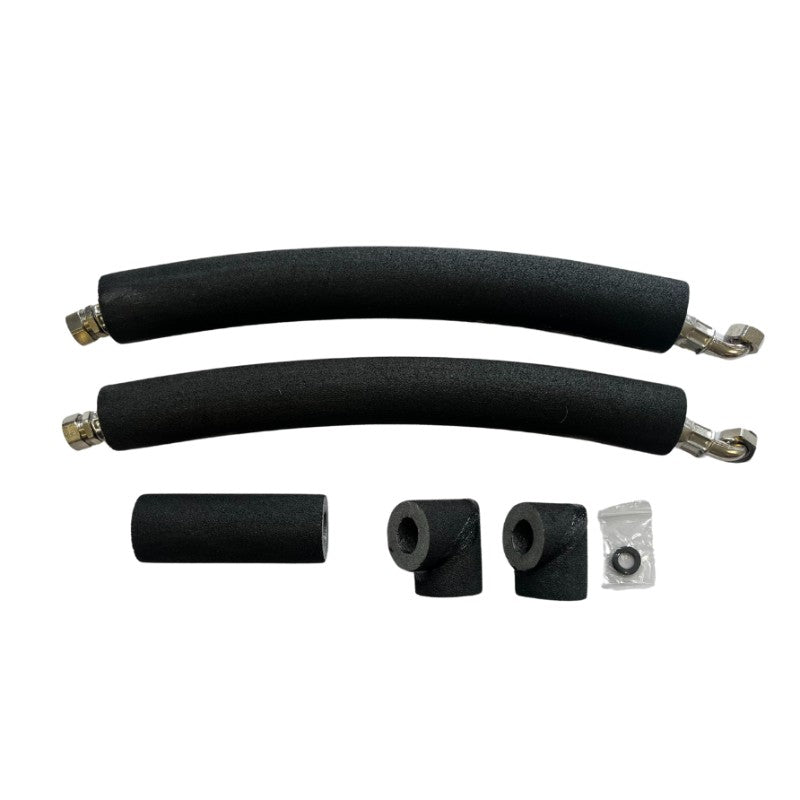

Additional insulation included to cover the connectors
Compliance
MCS installation specification
Good to Know: This is the elbow (bent) version, product code HPHOSE750B. A matching straight version (HPHOSE750) is also available where the pipe run continues in line with the heat pump connection rather than turning through 90°.
Frequently Asked Questions
What is the difference between the elbow and straight versions of this hose?
The elbow version (HPHOSE750B) has a 90° bend built into the pipework end of the hose, ideal where the pipe run turns away from the heat pump immediately. The straight version (HPHOSE750) is used where the pipework continues in a straight line from the connection.
How many hoses are included in this kit?
The kit is supplied as a pair (2 hoses), covering both the flow and return connections on the heat pump.
What size pipework does this hose connect to?
The pipework end uses a 28mm compression fitting, suitable for standard 28mm copper pipe on the primary heating circuit.
Is the hose suitable for use with glycol-based heat transfer fluid?
Yes, the hose is rated for use with water or a water and glycol mixture, commonly used as an antifreeze measure on external heat pump pipework.
Does the hose insulation match the rest of the pipe run?
Yes, the hose is pre-insulated with 19mm thick Primary Pro insulation specifically so it can be joined directly to rigid pipe insulation, maintaining continuous thermal protection along the pipe run.
