Intatec 18-Litre, Intafil Plus Sealed System Kit & Wall Mounted Heating Vessel

The Intatec 18-Litre, Intafil Plus Sealed System Kit & Wall Mounted Heating Vessel  IFP18 is a comprehensive G3-compliant sealed system kit designed for filling and maintaining pressurized heating systems, including an 18-litre expansion vessel, filling loop, and safety valves for safe and efficient operation.

Product Description

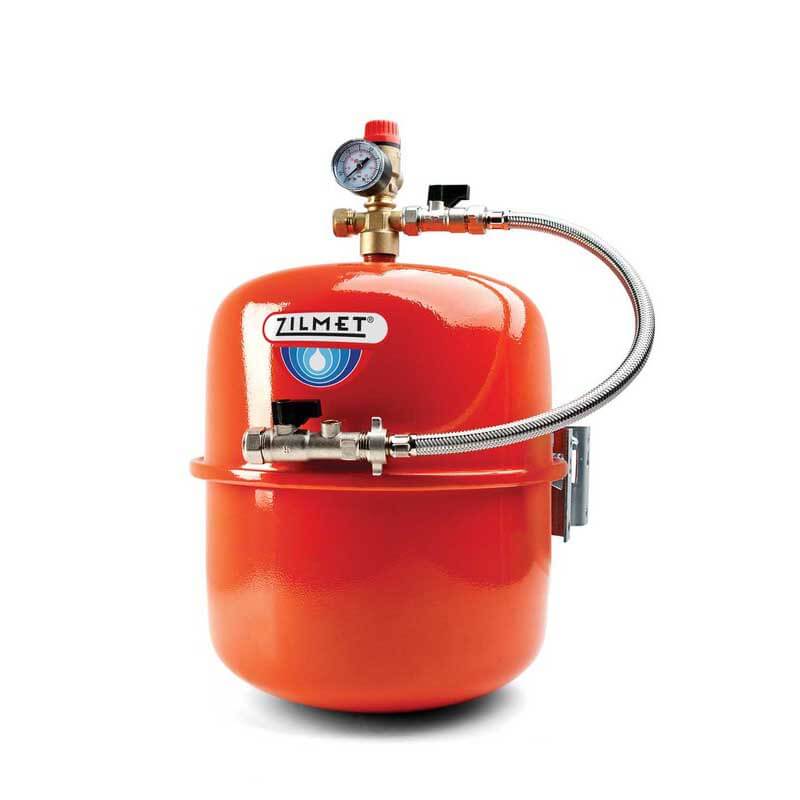

The Intafil Plus kit is a complete solution for sealed heating systems, featuring a wall-mounted 18-litre expansion vessel with bracket for easy installation. It includes a filling loop with double check valve and isolating ball assembly, a ball valve, and a safety relief valve with gauge. Suitable for retrofits and new builds, it provides flexibility in system design and ensures compliance with regulations. Ideal for central heating systems to absorb expansion and maintain pressure, preventing leaks and improving efficiency.

Key Features

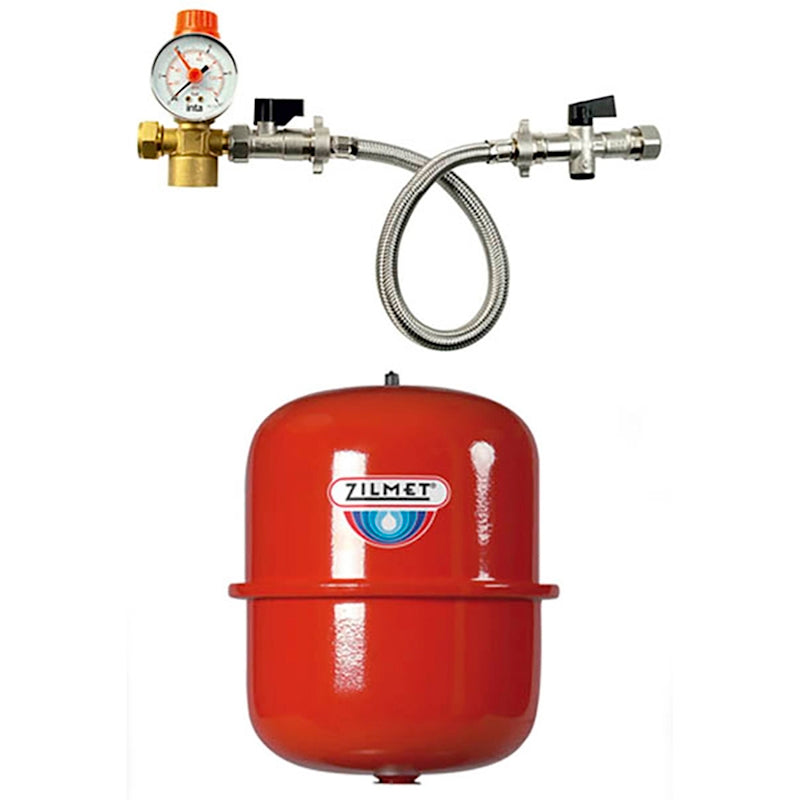

• Complete kit: Includes filling loop, double check valve, isolating ball assembly, ball valve, safety relief valve with gauge, and 18L vessel.
• Wall-mounted vessel: Supplied with bracket for secure installation.
• G3 compliant: Meets UK regulations for unvented systems.
• Flexible application: Suitable for retrofits and new build projects.
• CPR compliant: Fully certified for safety and performance.
• Easy installation: Pre-assembled components reduce setup time.
• Pressure management: Maintains system pressure to prevent damage.

Technical Specifications

• Model: IFP18 – Intafil Plus Sealed System Kit.
• Vessel capacity: 18 litres.
• Maximum working pressure: 4 bar (vessel pre-charge 1.5 bar).
• Safety relief valve: 3 bar with gauge.
• Connections: 3/4" BSP male (vessel), 15mm compression (valves).
• Material: Steel vessel with EPDM membrane.
• Certifications: CPR compliant, CE marked.

Dimensions & Weights

• Vessel diameter: 270 mm.
• Vessel height: 400 mm.
• Weight: 8 kg.

System & Application Notes

• Ideal for sealed central heating systems in homes and small commercial properties.
• Compatible with boilers, heat pumps, and underfloor heating.
• Suitable for systems up to 180 litres total volume (calculate based on expansion).
• Installation by qualified heating engineers; mount vessel vertically.
• Supports system filling and pressure maintenance.
• Warranty: Standard manufacturer warranty.
