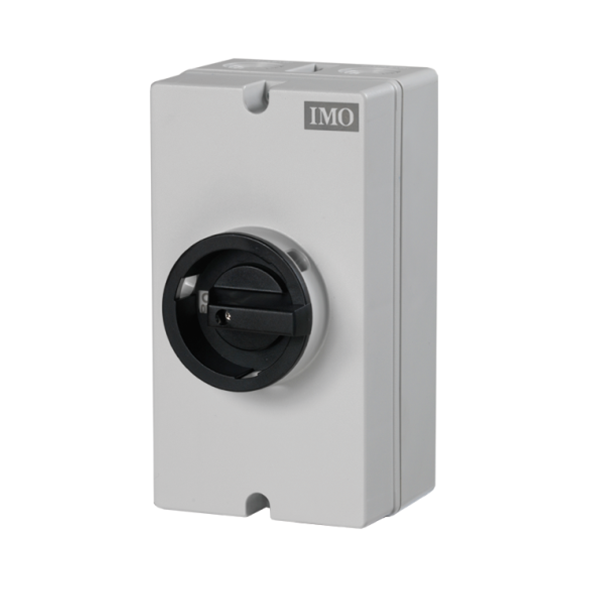

IMO Stag DC Isolators

The IMO Stag DC Isolator range is engineered specifically for safe and effective isolation within solar PV DC circuits. Featuring robust IP66-rated enclosures and two- or four-pole configurations, these isolators provide high resistance to dust and water ingress for outdoor renewable energy applications.

Available DC Variants & Technical Specifications

Variant (Type Number) Poles Rated Current Max Voltage Protection Application MPN EAN
IMO-SI16-PEL64R-2 2 16A 800V IP66 DC Isolation IMO-SI16-PEL64R-2
IMO-SI16-PEL64R-4 4 16A 800V IP66 DC Isolation IMO-SI16-PEL64R-4
IMO-SI25-PEL64R-2 2 25A 800V IP66 DC Isolation IMO-SI25-PEL64R-2
IMO-SI25-PEL64R-4 4 25A 800V IP66 DC Isolation IMO-SI25-PEL64R-4
IMO-SI32-PEL64R-2 2 32A 600V IP66 DC Isolation IMO-SI32-PEL64R-2
IMO-SI32-PEL64R-4 4 32A 600V IP66 DC Isolation IMO-SI32-PEL64R-4

Key Features

  • High IP66 ingress protection ensures durability in harsh outdoor environments.
  • Designed for solar PV DC circuit isolation with 2- and 4-pole options.
  • Rugged enclosures for superior water and dust resistance.
  • Compact and easy to install in rooftop or ground-mount solar systems.

Why Buy IMO Stag DC Isolators?

IMO Stag DC Isolators provide professional-grade isolation solutions specifically for renewable energy systems that demand robust protection and safety. These isolators help safeguard solar PV installations with dependable switching performance and weatherproof design.

  • Comprehensive range of current ratings for varied solar PV system sizes.
  • Designed to withstand environmental challenges and maintain operational safety.
  • Simple installation with flexible pole design to suit system configurations.
  • Type DC Isolators
  • Vendor IMO
  • SKU IMO-SI16-PEL64R-2
