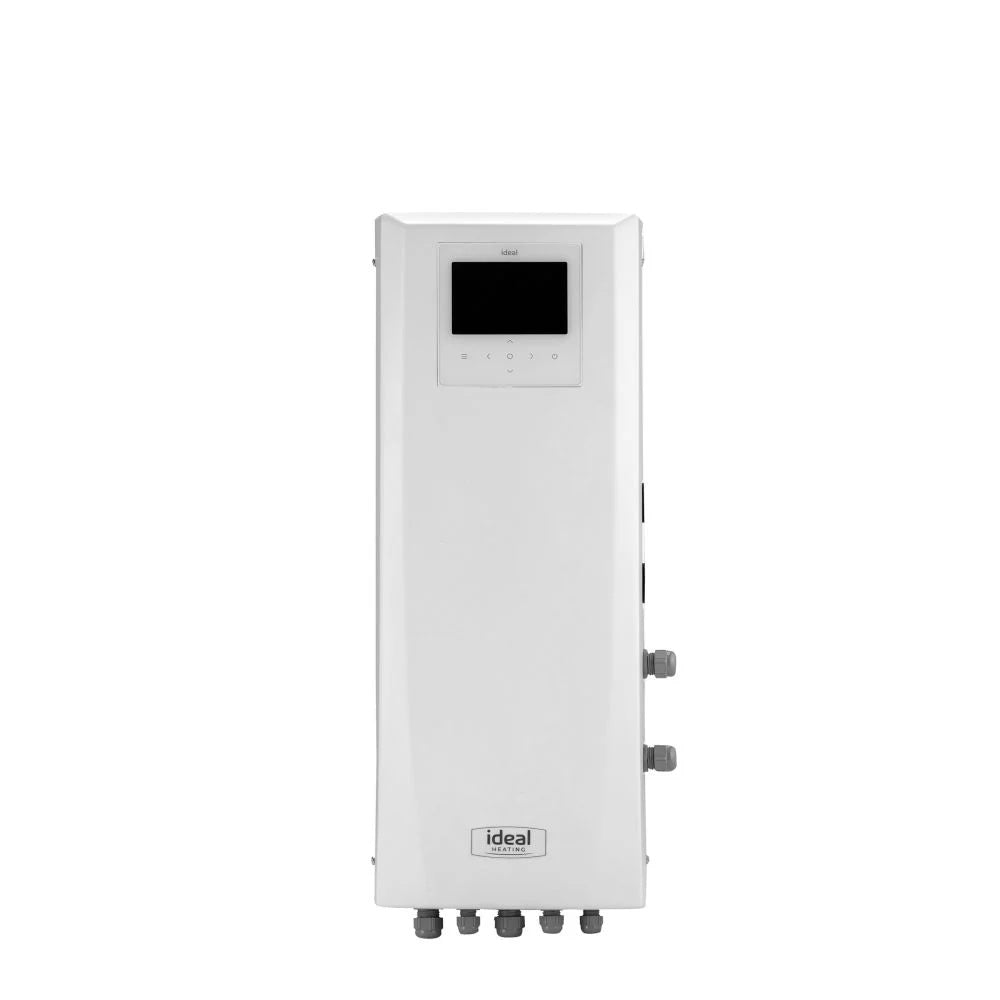

The Ideal Heating Wall Mounted HP290 Control Box is the central electrical hub for an HP290 air source heat pump system. It brings every electrical connection for the heat pump, heating circuits and hot water cylinder into a single, wall-mounted enclosure, cutting installation time and reducing the number of separate junctions an installer needs to wire on site. Built around Ideal's proven heat pump controller, it provides in-depth scheduling, connectivity and performance diagnostics, and is suited to standalone HP290 systems as well as hybrid and cascade air source heat pump installations.
16A
Max Contactor Current
3000W
Contactor Power Input
Important: Installation by a competent electrician only
All electrical work on the HP290 Control Box must be carried out by a competent electrician. The electrical supply must be isolated with appropriate safety measures before work begins, and the heat pump's own electrical installation must be completed and made live before the supply connection to the Control Box, to reduce the risk of electric shock.
Please Note: Configure the heat pump for this controller before first power-up
Before the HP290 Monobloc is powered up for the first time, the outdoor unit's DIP switch configuration must be set to match the Control Box as the connected controller type. Using the wrong DIP switch setting for the controller in use will prevent correct operation.
Single hub for every electrical connection
By consolidating heat pump, heating circuit and cylinder wiring into one centralised enclosure, the Control Box removes the need for multiple separate junction points, reducing on-site wiring time and the potential for connection errors.
Suited to hybrid and cascade systems
As well as standalone HP290 installations, the Control Box is suitable for hybrid boiler and air source heat pump systems and for cascade heat pump arrangements, giving installers a consistent control hub across different system designs.
Fast, guided commissioning
A built-in quick start menu steps through commissioning so the heat pump can be up and running and tuned to its most efficient operating parameters in a small number of guided steps, rather than manual parameter-by-parameter setup.
Flexible heat emitter compatibility
The Control Box's inbuilt controller is designed to work with all common UK heat emitter types, including radiators and underfloor heating, and supports multi-zone configurations.
Performance diagnostics and scheduling
Beyond basic on/off control, the controller provides scheduling, connectivity and diagnostic feedback, giving homeowners and installers visibility of how efficiently the heat pump system is running.
Wall-mounted for flexible siting
This wall-mounted version of the Control Box can be sited away from the heat pump and cylinder as needed, simplifying installations where the electrical hub needs to sit in a utility space or plant room.
General
| Product Number |
239386 |
| Description |
HP290 Control Box (Wall Mounted) |
| Compatibility |
Ideal Heating HP290 Air to Water Heat Pumps |
| System Suitability |
Standalone HP290, hybrid boiler + heat pump, and cascade heat pump installations |
| Heat Emitter Suitability |
Radiators and underfloor heating; suitable for renewable energy systems |
| Manufacturer Warranty |
2 years, when registered within 30 days of installation and serviced annually |
Electrical
| IP Rating |
IP20 |
| Rated Voltage |
200-240 VAC |
| Minimum Rated Current (control box) |
1 A |
| Maximum Rated Current (contactor) |
16 A |
| Rated Power Input (control box) |
100 W |
| Rated Power Input (contactor) |
3000 W |
Physical
| Height |
627 mm |
| Width |
254 mm |
| Depth |
147 mm |
| Weight |
5 kg |
| Mounting Type |
Wall mounted |
What does the HP290 Control Box actually do?
It's the central electrical hub for an HP290 heat pump system — bringing together the wiring for the heat pump, heating zones and hot water cylinder in one enclosure, and housing the controller that manages scheduling, diagnostics and heat pump performance.
Can this be used with a hybrid boiler and heat pump system?
Yes. The Control Box is suitable for hybrid boiler air source heat pump installations as well as cascade heat pump systems, in addition to standalone HP290 setups.
Does the Control Box need to be configured before the heat pump is switched on?
Yes. Before the HP290 Monobloc is first powered up, the outdoor unit's DIP switch must be set to match the connected controller type (Control Box, Cylinder, or standalone Controller) — refer to the Installation & Maintenance manual for the exact procedure.
What's the maximum electrical load the Control Box can switch?
The internal contactor is rated for a maximum of 16A, with a rated power input of 3000W, while the control electronics itself draws a minimum of 1A at 100W.
Who can install and wire the HP290 Control Box?
All electrical work must be carried out by a competent electrician, with the supply isolated beforehand and the heat pump's own wiring completed before the Control Box is connected to the electrical supply.
