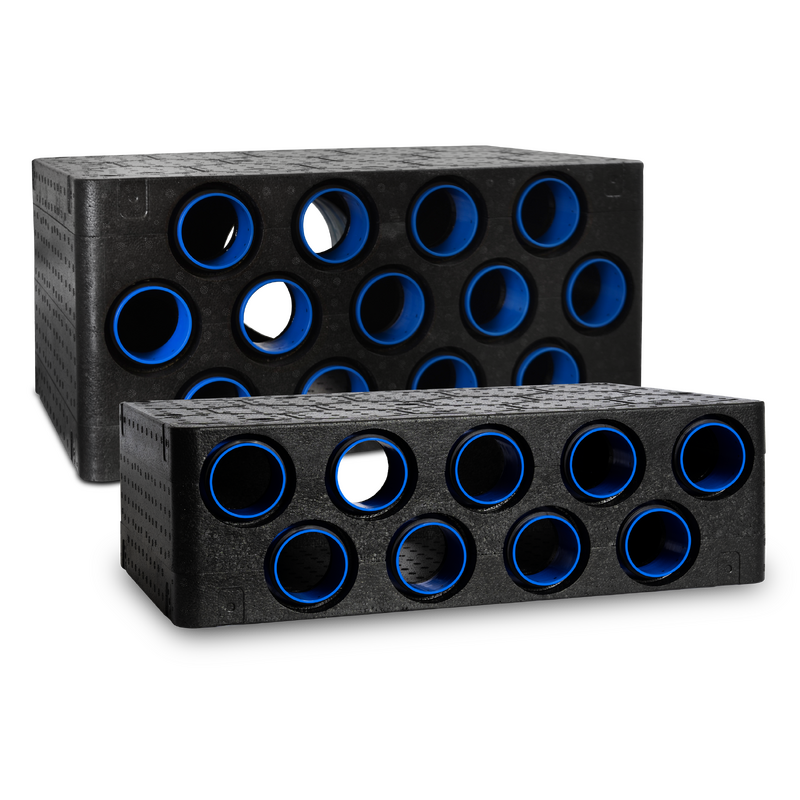

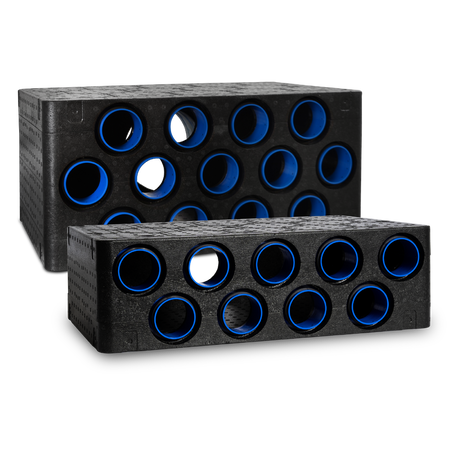

The Casavent MAN-200-75-10-H-EPP is an EPP horizontal pass-through distribution manifold that connects a 200mm inlet to ten 75mm radial semi-rigid ducts. Unlike the vertical manifold range, this pass-through design arranges its spigots along a single horizontal row, suited to shallow ceiling voids or installations where a low-profile manifold housing is required.
Moulded from Expanded Polypropylene, the manifold shares the same insulating, lightweight, and corrosion-free construction as the rest of the Casavent EPP distribution range, sized for the larger airflow volumes a 200mm inlet supports.
200mm
Inlet Diameter
10 x 75mm
Duct Spigots
EPP
Material
Horizontal
Pass-Through Format
λ 0.0038
Thermal Conductivity
-25 to +80°C
Service Temperature
System Component
This manifold is a system component — it connects a 200mm MVHR/MEV inlet to ten 75mm radial ducts and does not include the ducting, air handling unit, or plenum boxes. These are sold separately.
Horizontal Pass-Through Layout
Spigots are arranged along a single horizontal row rather than a compact block, giving a lower-profile housing that suits shallow ceiling voids where headroom for a vertical manifold is limited.
Ten-Way Distribution
With ten 75mm duct spigots from a single 200mm inlet, this manifold serves larger properties or higher room counts, positioned between the 8-way and 12-way vertical manifolds in the range.
Sized for 200mm Inlet Airflow
The 200mm inlet supports higher total airflow into the manifold than the 125mm or 160mm versions, matched to MVHR/MEV units serving larger floor areas.
Insulating EPP Construction
The Expanded Polypropylene body (λ = 0.0038 W/(m·K)) provides thermal insulation around the ductwork hub, reducing condensation risk.
Good Acoustic Properties
The closed-cell EPP structure offers useful sound-deadening properties, helping reduce fan noise transmission along the ductwork.
Corrosion-Free
Unlike galvanised steel manifolds, the EPP body is immune to corrosion, giving long service life in loft installations.
Product Overview
Brand
Casavent
Product Code
MAN-200-75-10-H-EPP
Description
Horizontal Pass-Through Distribution Manifold, 200mm Inlet x 10 Spigot 75mm, EPP
Orientation
Horizontal (pass-through layout)
Dimensions
Inlet Diameter
200mm
Duct Spigot Diameter
75mm (x10)
Length (A)
514mm
Width (B)
320mm
Height (C)
230mm
Spigot Length (L)
36mm
Technical Data
Material
Expanded Polypropylene (EPP)
Thermal Conductivity
λ = 0.0038 W/(m·K)
Service Temperature
-25°C to +80°C
Reaction to Fire
Class E (EN 13501-1)
Microbial Resistance
Rating 1a, Method A (EN ISO 846:2019)
Air-Tightness
Suitable for ATC2 (D) air-tightness class systems (EN 17192:2018)
Airflow & Pressure Performance
Approximate system performance for this spigot configuration (based on the manufacturer's equivalent pass-through manifold family): around 7 Pa pressure drop at 300 m³/h total airflow.
What does this manifold connect?
It connects a 200mm inlet from the MVHR or MEV unit to ten individual 75mm radial ducts, each running to a room's air valve plenum box.
What does 'horizontal pass-through' mean?
Rather than a compact block with spigots on multiple faces, this manifold arranges its spigots along a single row, giving a shallower, lower-profile housing suited to tight ceiling voids.
Why choose the 200mm inlet over 125mm or 160mm?
The 200mm inlet supports higher total airflow, suiting larger properties or higher-capacity MVHR/MEV units where more air needs to pass through a single manifold.
What is the manifold made from and why?
Expanded Polypropylene (EPP) — insulating, lightweight with strong stiffness, good acoustic properties, and corrosion-resistant.
