Honeywell VTL15 15mm Angled TRV & Lockshield | VTL15-15A
Regular price
£17.50
Inc. VAT
£14.58
Exc. VAT
FREE Express Delivery (1-3 days) in UK Mainland on most orders*
Excluding: Solar Panels (£170 delivery / free above £2,500), Batteries (£39 delivery), Small Items (£4.95/5.95 delivery / free above £500)
Contact Us to check for Next Working Day Delivery or Same-day Delivery options
Contact Us for Click & Collect options
Custom quote available on request
*See checkout or shipping policy for full details
Payment options
Tools & Kits
Build your kit
Need a full system?
Design your complete solution in minutes with our kit builders.
Do you have a question
about this product?
One of our expert advisors will be happy to help you!
Contact Us

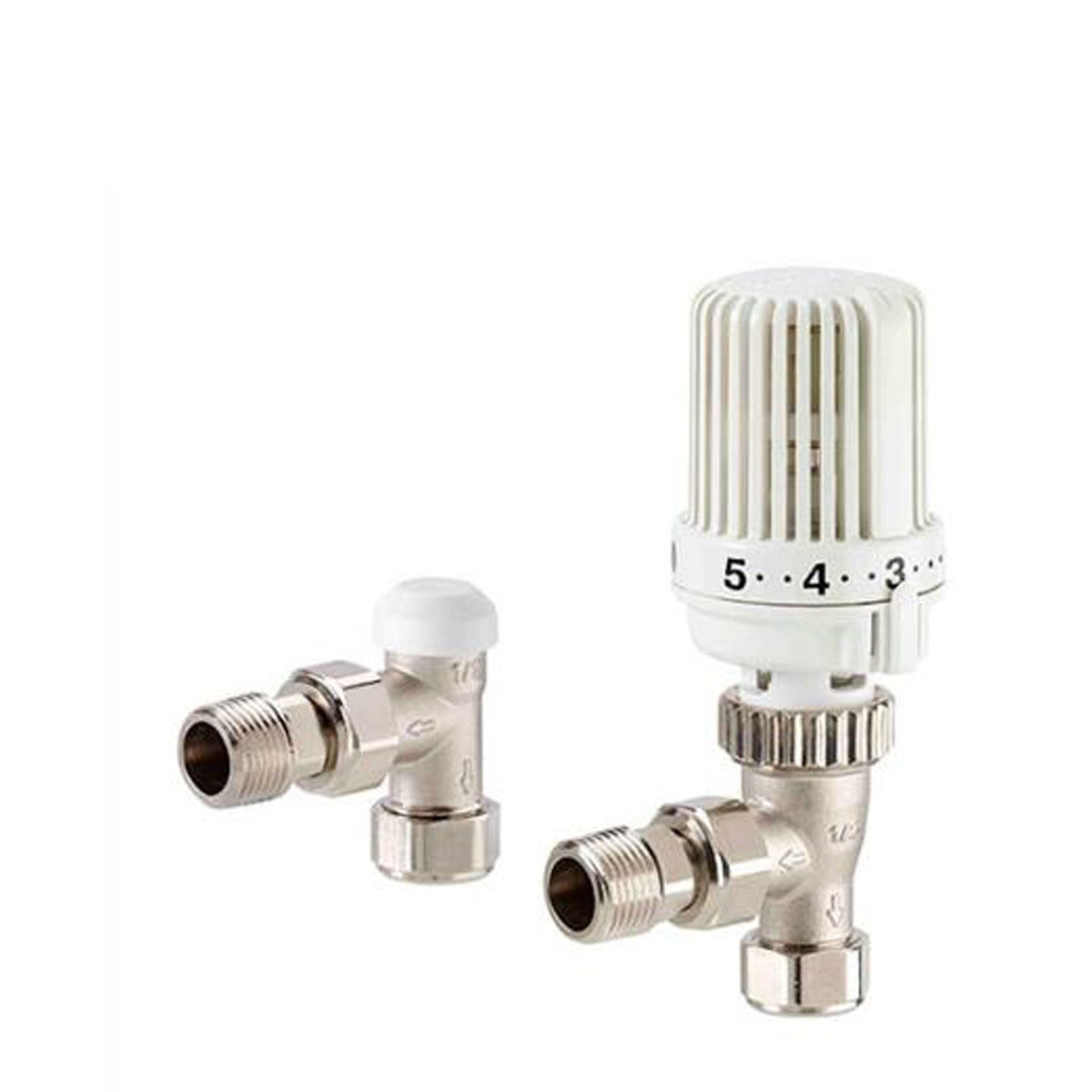

The Honeywell Home VTL15 Essential (MPN VTL15-15A) is a matching 15 mm angled thermostatic radiator valve and lockshield set with modern matt silver nickel-plated brass bodies and a white easy-grip, non-slip head. The valve is approved to EN 215 and listed for Keymark, with A-rated energy-saving performance, and a modulating insert in the body that gives the heating system just the flow needed to hold the set temperature.
The bodies are bi-directional and tested for quiet operation in both flow directions, so the TRV can go on the flow or return end of the radiator. The integrated balancing insert offers six flow presets for quick commissioning of a balanced system, and the concealed temperature range limit on the head cannot be easily unlocked once the memory clip is removed, which suits rented, shared and public-facing properties.
The head can be mounted vertically or horizontally by swapping the tailpiece and pipe fittings, the radiator tailpiece has 6 mm of play for variation in radiator distance, and the standard M30 × 1.5 connection lets you retrofit other Honeywell Home heads or evohome electronic TRV heads later. Rated PN10 (10 bar) with 15 mm compression connections.
15 mm
Compression, ½″ radiator tail
PN10
10 bar max operating pressure
6 presets
Integrated balancing insert
1 - 26°C
Set-point range
0.70 m³/h
Maximum kvs
EN 215
Keymark listed
Do not leave the head on position 0 in freezing weather
Honeywell advises that heating can freeze when a radiator thermostat is set to position 0. The zero position is still thermostatically controlled, so the valve may reopen as the temperature falls, but it should not be relied on as frost protection for an unheated property.
Two-pipe systems and installation conditions
The VTL15 is suitable for two-pipe systems only. Do not cover the head with a curtain or place furniture in front of it. The system water should meet VDI 2035 (pH 8 - 9.5), additives must suit EPDM seals (avoid mineral oils), heavily polluted systems must be flushed, and the system must be fully deaerated. Honeywell notes the valve is not for installations with extreme pump heads.
What's in the box
1 × VTL15 TRV with thermostatic head and 1 × matching 15 mm lockshield, with tailpieces, nuts and compression olives for 15 mm copper pipe. The TRV is supplied with a protection cap that can positively shut off the valve. The lockshield can be throttled or shut off with a 4 mm Allen key.
Key Features
Matt Silver Nickel Bodies
Modern matt silver nickel-plated brass TRV and lockshield bodies with white heads suit contemporary radiators and pipework.
Bi-Directional and Quiet
Bidirectional flow lets you fit the TRV to either end of the radiator, and the valve is designed and tested for noise-free operation in both flow directions.
Integrated Balancing Insert
Six presets from 20 to 170 l/h (factory setting 6) limit the valve's maximum capacity. Balancing keeps the boiler condensing and helps stop it switching on and off frequently.
Concealed Range Limiting
Slide out the range-locking pins with the memory clip to limit the temperature setting range. Without the clip, the limit cannot easily be undone.
Flexible Fitting
Angled bodies flip to point the head upwards or sideways, the head can be mounted vertically or horizontally, and the 6 mm tailpiece play absorbs radiator spacing variation.
Maintenance-Free and Serviceable
A double O-ring seal keeps the spindle maintenance-free, and the insert can be replaced without draining down with service tool VA8200A001.
Suitable For
Everyday Radiator Upgrades
Replacing manual valves with room-by-room thermostatic control on 15 mm copper pipework.
New Two-Pipe Installations
New heating systems where each radiator needs a TRV and lockshield for control and balancing.
Rented and Shared Properties
Use the concealed range limit to restrict how high or low occupants can set the head.
Heating Systems with Condensing Boilers
Preset balancing helps keep the boiler in condensing mode through the heating cycle.
Technical Specifications
