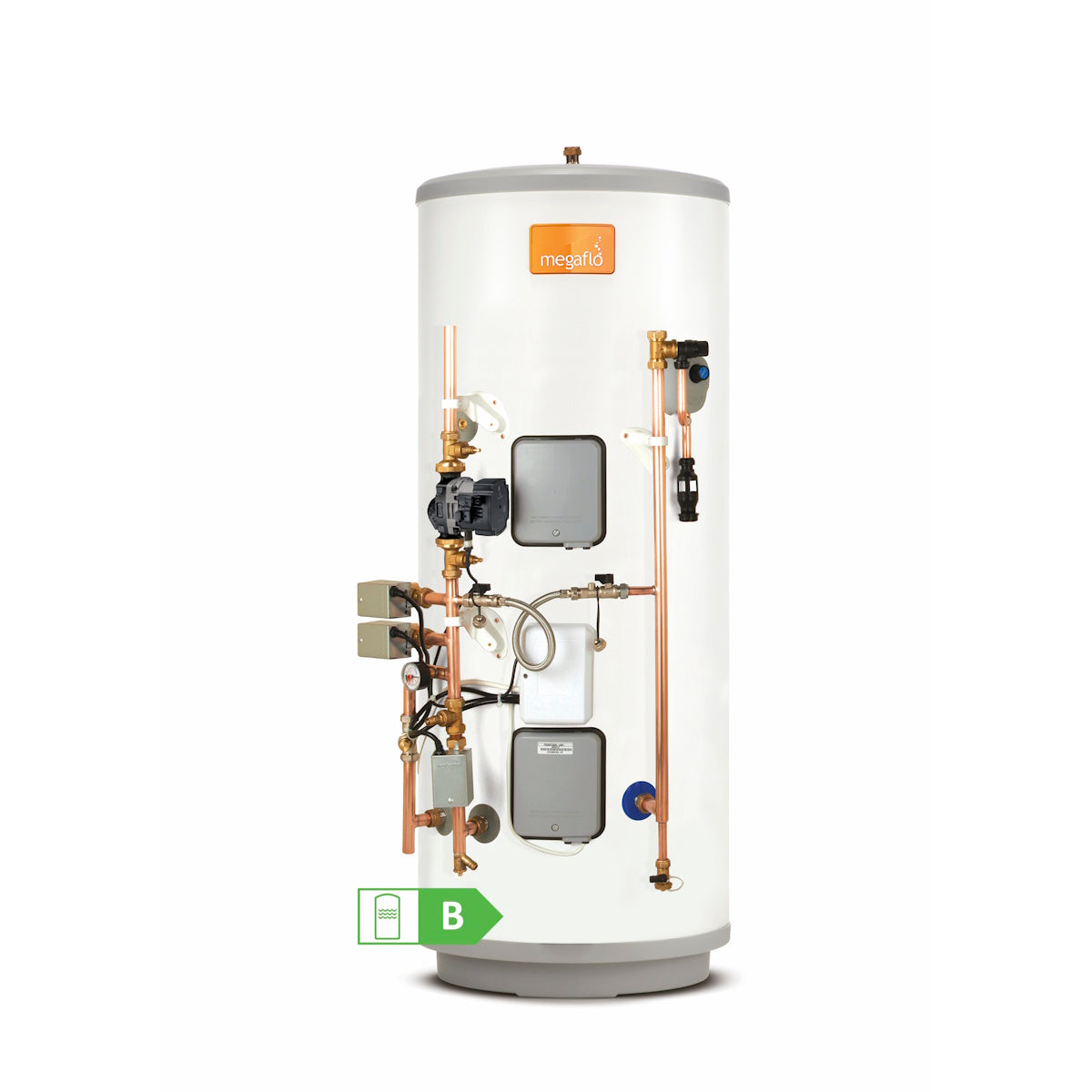

The Megaflo Eco SystemFit is a factory pre-plumbed and pre-wired indirect unvented cylinder, purpose-built for use with a heat-only (regular) boiler. The pipework and control components are fitted and wired at the factory before the cylinder leaves Heatrae Sadia — reducing on-site installation time and delivering a consistently neat, tidy finish every time. Available in six sizes from 125 to 300 litres, it uses the same high-grade duplex stainless steel construction, internal expansion system, and coil-in-coil heat exchanger as the standard Megaflo Eco Indirect, backed by a 30-year warranty on the inner stainless-steel tank.
Pre-plumbed
Factory fitted & wired
Heat-only
Boiler compatible
⚠ G3 Competent Person & Qualified Electrician Required
SystemFit cylinders must be installed and commissioned by a G3 accredited competent person. All electrical connections must be made by a qualified electrician to current IET Wiring Regulations, and the Benchmark commissioning checklist must be completed at handover.
ℹ Designed for heat-only (regular) boilers — not system boilers
SystemFit is specifically pre-configured for a heat-only (regular) boiler, which does not have its own integral pump or expansion vessel. If you're working with a system boiler instead — which has its own integral pump, expansion vessel, and controls — see the Megaflo Eco SystemReady range, which is pre-configured specifically for that application.
ℹ Indirect only — boiler-fed with electric backup
SystemFit is available as an indirect cylinder only, heated primarily by the connected heat-only boiler via the internal coil, with a single 3 kW backup immersion heater for off-peak charging or when the boiler is unavailable.
KEY FEATURES
Pre-Plumbed & Pre-Wired at the Factory
All pipework and control wiring for the heat-only boiler connection is fitted and tested at the factory before dispatch. This significantly reduces on-site installation time compared to fitting these components on site, and removes a common source of wiring errors and inconsistent finish quality between installers.
Consistent, Tidy Finish Every Time
Because the plumbing and wiring layout is standardised at the factory, every SystemFit installation delivers the same neat, professional finish — useful for developers and housing associations specifying multiple identical units across a development, where installation consistency and speed both matter.
Coil-in-Coil Heat Exchanger
The same high-performance coil-in-coil heat exchanger used across the Megaflo Eco Indirect range delivers full coil heat-up in 22–42 minutes depending on cylinder size — fast recovery for a heat-only boiler configuration without requiring an oversized boiler output.
Internal Expansion — No External DHW Vessel
The internal floating-baffle expansion system accommodates domestic hot water thermal expansion within the cylinder itself — no external DHW expansion vessel is required, keeping the plant room installation compact and reducing the number of components an installer needs to source.
Duplex Stainless Steel — 30-Year Warranty
Fabricated from high-grade duplex stainless steel for excellent corrosion resistance, the SystemFit inner tank carries a 30-year warranty. The range is KIWA approved, complying with Water Regulation 4 and Building Regulations Part G3.
Secondary Return Included on All Models
Every SystemFit model, from 125L to 300L, includes a secondary return connection as standard — useful for properties with longer pipe runs to the outlet, where a secondary circulation loop helps maintain consistent hot water temperature at the tap.
TECHNICAL SPECIFICATIONS
| Parameter |
125sf |
145sf |
170sf |
210sf |
250sf |
300sf |
| Product code |
95050450 |
95050451 |
95050452 |
95050453 |
95050454 |
95050455 |
| Volume (L) |
137 |
155 |
178 |
195 |
233 |
283 |
| Height (mm) |
1102 |
1229 |
1384 |
1486 |
1738 |
2053 |
| Diameter (mm) |
579 |
579 |
579 |
579 |
579 |
579 |
| Empty weight (kg) |
43 |
48 |
52 |
55 |
61 |
69 |
| Full weight (kg) |
180 |
203 |
230 |
250 |
294 |
235* |
| ErP rating |
B |
B |
B |
B |
C |
C |
| Standing heat loss (kWh/24h) |
1.05 |
1.18 |
1.20 |
1.42 |
1.61 |
1.69 |
| Hot water volume >40 °C (L) |
139 |
159 |
197 |
200 |
240 |
284 |
| Coil heat-up time (min) |
21.9 |
23.2 |
31.5 |
32.0 |
40.1 |
42.3 |
| Coil rating (kW) |
19.5 |
20.9 |
19.4 |
19.4 |
19.5 |
20.5 |
| Coil surface area (m²) |
0.58 |
0.72 |
0.79 |
0.79 |
0.79 |
0.79 |
| Coil pressure drop (bar) |
0.05 |
0.05 |
0.05 |
0.05 |
0.05 |
0.05 |
| Immersion (No. × kW) |
1 × 3 |
1 × 3 |
1 × 3 |
1 × 3 |
1 × 3 |
1 × 3 |
| Heat-up — bottom immersion (min) |
139 |
167 |
179 |
208 |
252 |
294 |
| Secondary return |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Connections: all cylinder connections 22 mm; heating connections 22 mm (125–210L) or 28 mm (250–300L). *Full weight for 300sf as published by Heatrae Sadia — confirm with your installer if this figure looks inconsistent with the empty weight and volume for this model.
FREQUENTLY ASKED QUESTIONS
What is the difference between SystemFit and SystemReady?
Both are factory pre-plumbed and pre-wired cylinders, but they are configured for different boiler types. SystemFit is designed for a heat-only (regular) boiler, which lacks its own integral pump and expansion vessel. SystemReady is designed for a system boiler, which has its own integral pump and expansion vessel built in. Choosing the wrong one for your boiler type will mean the pre-fitted components don't match your system requirements.
Is SystemFit available as a Direct (electric-only) cylinder?
No — SystemFit is available as an indirect (boiler-fed) cylinder only. If you need an electric-only unvented cylinder, see the standard Megaflo Eco Direct range instead.
Why choose SystemFit over the standard Megaflo Eco Indirect?
SystemFit's factory pre-plumbing and pre-wiring saves on-site labour time compared to a standard Eco Indirect, which requires the installer to fit and wire the boiler connection components on site. For developers or installers fitting many identical cylinders across multiple properties, this consistency and time saving can be significant.
What warranty does SystemFit carry?
Heatrae Sadia provide a 30-year warranty on the inner stainless-steel tank. All other components carry a standard component warranty. Warranty validity requires correct G3 installation, annual servicing, and a completed Benchmark commissioning checklist.
