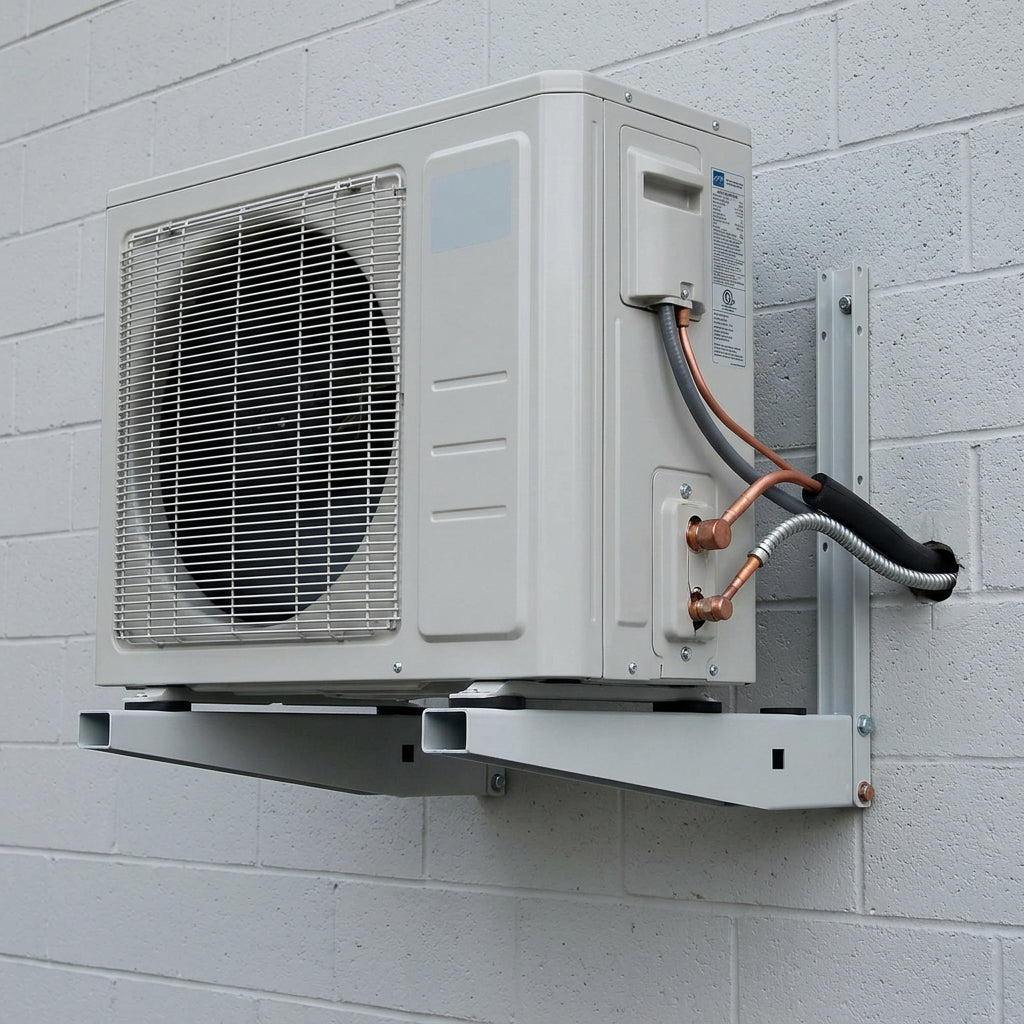

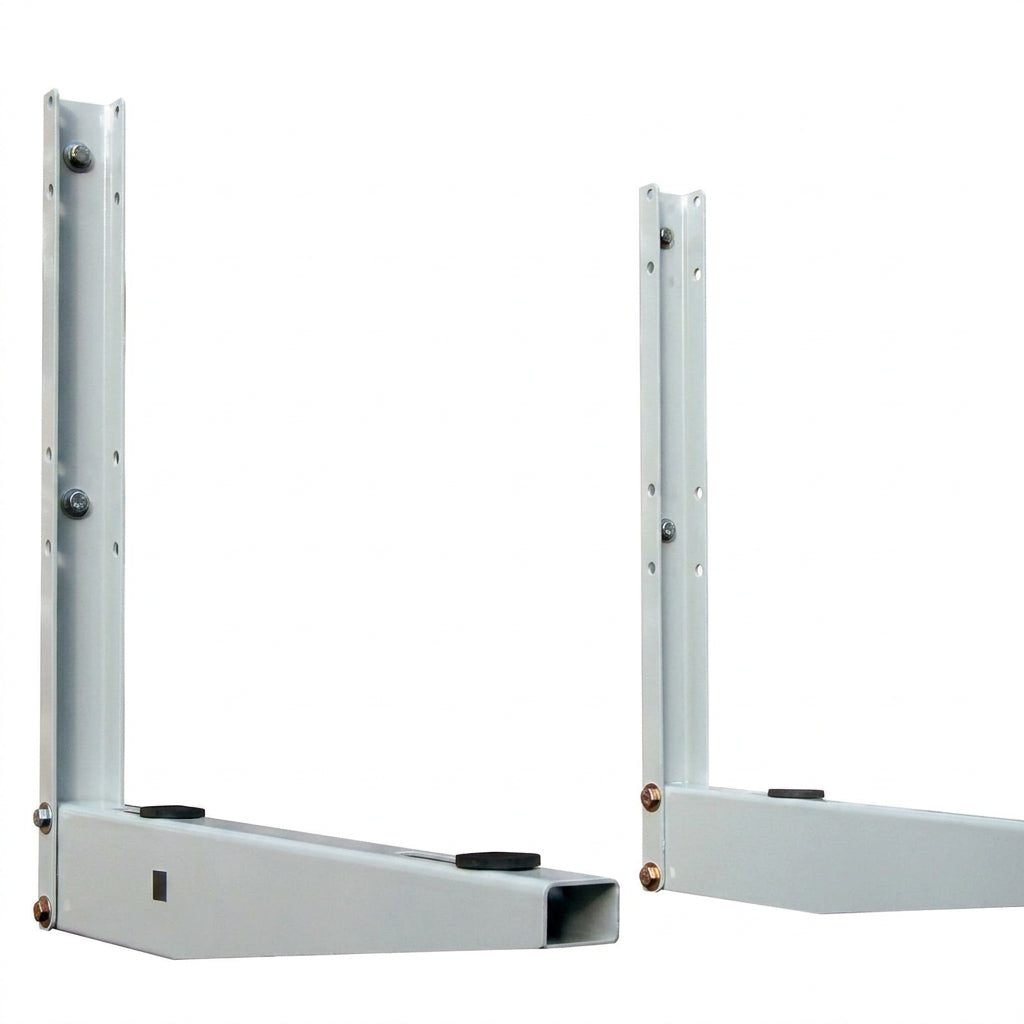

The Heat Pump Wall Bracket XXL Type 1 - 250kg, 1000mm (CBR1-XXL) is a heavy-duty, flat-packed wall mounting bracket for outdoor condensing units and air source heat pumps, manufactured by DiversiTech. This is a Type 1 direct-fix bracket: each upright mounts directly onto the wall via six supplied shell anchor bolts, maximising the rigidity of the installation compared with a crossbar-style design. All components are finished with a scratch-resistant, textured RAL 7032 powder coating designed to match most heat pump and condensing unit casings.
Manufacturer part code: CBR1-XXL (Type 1 Bracket - 2 x Extra Large). Rated to a safe working load of 250kg, with a support arm length of 1000mm to suit larger outdoor units.
250kg
Safe Working Load
500kg
Tested Max Load
1000mm
Support Arm Length
550mm
Upright Height
11kg
Bracket Weight
RAL 7032
Powder Coat Finish
Important Safety Information
Heat pumps mounted on a wall bracket may not be MCS-compliant. Always check the minimum rear clearance required behind the heat pump is met before specifying a wall-mounted installation.
Direct-to-Wall Fixing
Uprights bolt straight onto the wall using six shell anchor bolts, giving a rigid, crossbar-free installation.
Extra-Long 1000mm Arms
Support arms extend to a full 1 metre (1000mm) — the longest arm length in the Type 1 range, built for the largest condensing units and heat pumps.
Highest Rated Load in the Range
Rated to a 250kg safe working load, tested to 500kg — the highest rating of any Type 1 bracket size.
Enhanced Zinc Plating
This bracket receives 100% zinc plating followed by a hard ED coating, ahead of the external-grade RAL 7032 powder coat, for improved corrosion resistance.
Four-Stage Weather Protection
Every bracket passes through four finishing stages: Zintec corrosion-resistant steel, a zinc phosphating dip, an ED (electrophoretic deposition) coating, and a final epoxy polyester powder coat for long-term weather resistance.
RAL 7032 Textured Finish
Finished in RAL 7032 with a scratch-resistant textured coating, chosen to match the casings of most condensing units and domestic air source heat pumps.
Independently Load-Tested
All brackets are tested to twice their stated safe working load at an independent UK testing facility.
Technical Specification
General
Manufacturer
DiversiTech
Part Code
CBR1-XXL
Description
Type 1 Bracket - 2 x Extra Large
Mounting Type
This is a Type 1 direct-fix bracket: each upright mounts directly onto the wall via six supplied shell anchor bolts, maximising the rigidity of the installation compared with a crossbar-style design.
Tested to 2x safe working load at an independent UK facility
MCS Note
Wall-mounted heat pump installations may not be MCS-compliant — check rear clearance
Please Note
Sea salt is highly corrosive to both ferrous and non-ferrous metals. In coastal locations, the repeated wet/dry cycling from salt-laden air creates an especially aggressive environment — DiversiTech recommends stainless steel brackets for installations near the coast.
Frequently Asked Questions
What is the safe working load of the Heat Pump Wall Bracket XXL Type 1 - 250kg, 1000mm (CBR1-XXL)?
The bracket has a safe working load of 250kg, and has been independently tested to a destructive load of 500kg — twice the rated safe working load.
Is this bracket suitable for my heat pump or condensing unit?
The bracket is designed to suit most brands of condensing unit and domestic air source heat pump. Always check your unit's weight and footprint against the bracket's safe working load and arm dimensions before ordering.
Will mounting my heat pump on this bracket affect MCS compliance?
Wall-mounted installations may not be MCS-compliant depending on the manufacturer's installation instructions. Always confirm the required rear clearance behind the unit is achievable before specifying a wall bracket.
What's included in the box?
Each bracket is supplied flat-packed for self-assembly, complete with fixings, guards, collection trays, and installation instructions.
Is this bracket suitable for coastal installations?
Standard powder-coated brackets are not recommended for coastal sites. Sea salt exposure creates a corrosive wet/dry cycle, and stainless steel brackets are recommended instead for installations near the coast.
