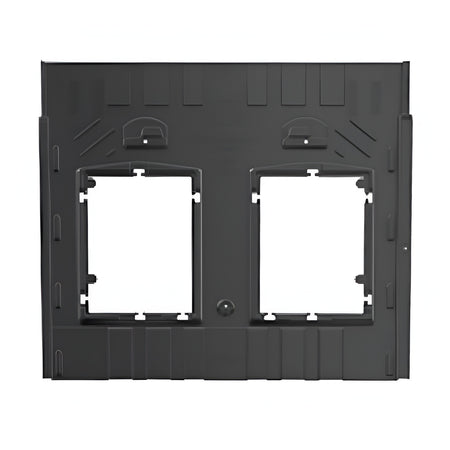

The GSE XXL Frame Portrait DPO 2030-1135 is GSE's extended-format in-roof half-frame, purpose-built for the XXL generation of high-power portrait PV modules (up to 600 Wp) now entering the UK market. GSE's Portrait Evolution range officially covers XXL modules from 1990 mm to 2180 mm in length and 990 mm to 1305 mm in width — this frame, at 2030 x 1135 mm, sits within that confirmed XXL range and uses the same interlocking tray, clip, and flashing system as GSE's standard-size half-frames.
As with all GSE half-frames, two half-frames are required per PV module — an upper and lower half that interlock at the panel's midpoint. Manufacturer reference: ART105792.
2
Half-Frames Per Panel
2030mm
Frame Length
1135mm
Frame Width
Up to 600Wp
XXL Module Rating
12°-50°
Roof Pitch Range
10 Yrs
System Warranty
Please Note
Always cross-check the module's confirmed length and width in millimetres against the frame reference size before ordering — half-frame sizing is module-specific and non-interchangeable between frame references.
Interlocking Tray Design
Half-frames clip together row by row using GSE's landscape/portrait interlock, removing the need for separate rails between modules within a row.
Recyclable Polypropylene Construction
Moulded from regenerated polypropylene, fully recyclable at end of life, supporting the system's sustainability credentials.
BIPV Roof Replacement

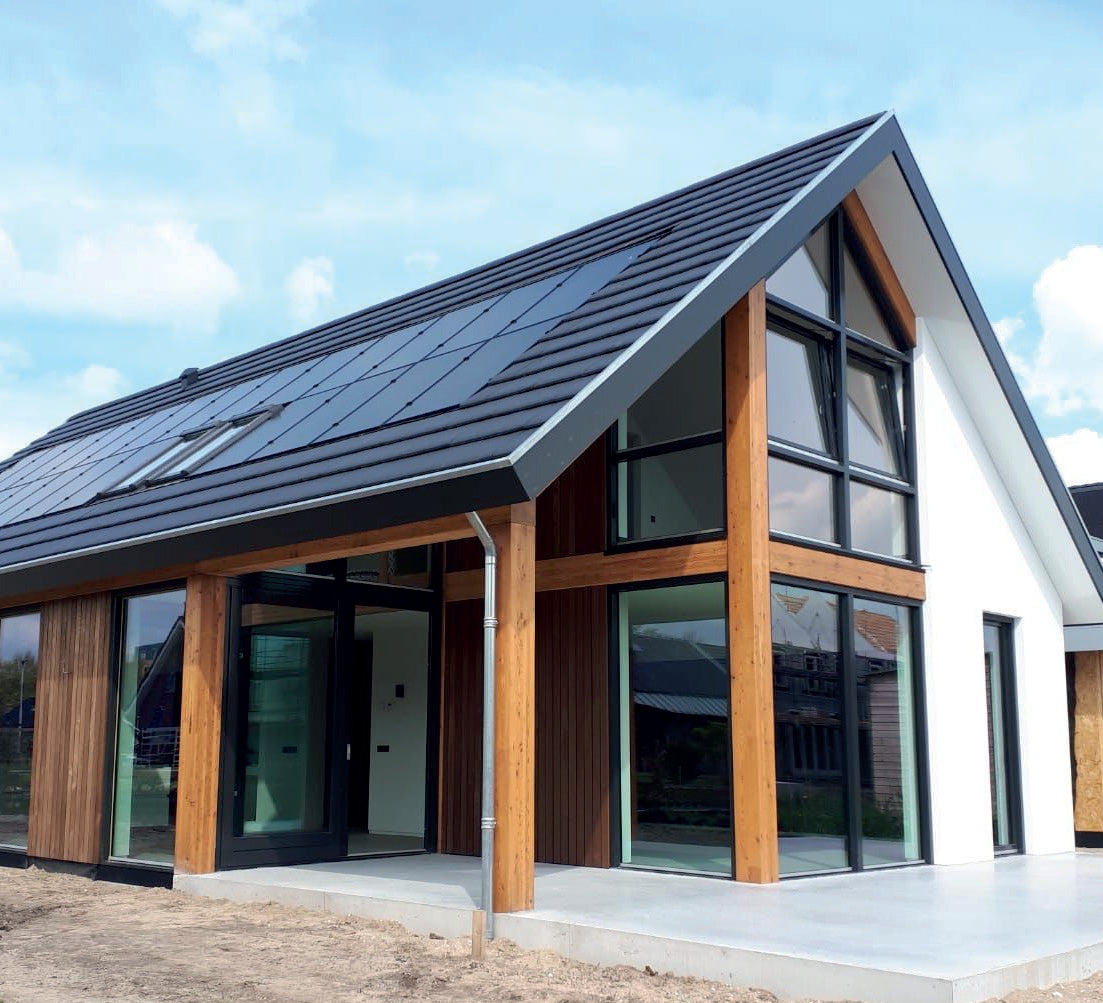

Functions as a building-integrated photovoltaic (BIPV) system, replacing the section of tiles or slates under the array rather than sitting on top of them.
XXL Module Support
Purpose-built for GSE's XXL portrait module range (up to 600 Wp), extending the interlocking tray system to modules from 1990–2180 mm long and 990–1305 mm wide.
Fast On-Site Installation
GSE state that a trained installation team can fit 10 to 16 panels in around 6 hours, with 116 half-frames per pallet for efficient site logistics.
MCS 012 & BS 5534 Compliant
Wind uplift resistance of 2.25 kN/m² under MCS 012, wind-load tested to Eurocode 1 and BS 5534 UK wind-zone tables.
Fire-Rated Roof Covering
Rated BRoof(t4) for external fire performance, suitable for use on domestic and small commercial roofs across the UK.
10-Year System Warranty
Backed by a 10-year GSE system warranty when the half-frames, flashings, and clamps are installed together per the official installation manual.
Technical Specification
General
System Type
Building-integrated photovoltaic (BIPV) in-roof mounting system
Orientation
Portrait
Frame Series
XXL / DPO — extended-length frames for XXL modules
Frame Format
Half-frame — 2 required per PV module
Nominal Frame Length
2030 mm (XXL range: 1990–2180 mm)
Nominal Frame Width
1135 mm (XXL range: 990–1305 mm)
Supports Modules Up To
600 Wp
Construction
Half-Frame Material
PP (polypropylene), aluminium and stainless steel components — 100% recyclable
10 years, subject to compliance with installation recommendations
Installation
Typical Install Rate
10 to 16 panels in approx. 6 hours (trained installer)
Pallet Quantity
116 half-frames per pallet
Reference
Manufacturer
GSE Intégration
Manufacturer Part Reference
ART105792
Good to Know
This frame falls within GSE's officially confirmed XXL module range (1990–2180 mm length, 990–1305 mm width), introduced alongside the standard Portrait Evolution range (1610–1990 mm) to support modules up to 600 Wp. Always confirm your exact module length and width against GSE's current reference list before ordering.
Good to Know
Half-frames are supplied without clamps, rails, or flashings. These are ordered separately according to module frame thickness (30–35 mm) and roof covering type — see GSE's clamp and flashing compatibility tables.
Important Safety Information
In-roof installation involves working with roof structure, weatherproofing, and electrical connections. Installation must follow GSE's official installation manual and comply with MCS, local building regulations, and electrical safety standards. Use a qualified, trained installer.
Frequently Asked Questions
How many XXL half-frames do I need per panel?
As with GSE's standard range, two half-frames are required per module — an upper and lower half that interlock at the panel's midpoint.
What makes this an 'XXL' frame?
GSE introduced the XXL frame series specifically for the newer generation of high-power portrait modules up to 600 Wp, which are longer and wider than the modules covered by GSE's standard Portrait Evolution range (up to 450 Wp).
What panel sizes is this frame designed for?
This frame is sized for portrait PV modules around 2030 mm long and 1135 mm wide, within GSE's confirmed XXL module range of 1990–2180 mm length and 990–1305 mm width.
Is this frame compatible with standard GSE clamps and flashings?
The XXL/DPO series is part of the same GSE In-Roof System family and uses the standard clamp and flashing kits, sized to the module's frame thickness — always confirm clamp size against your specific module before ordering.
Does this frame carry the same certifications as the standard range?
Yes — the XXL range shares the same MCS 012 (KIWA00041), ETN (Alpes Contrôle A27T2109), and DIBt (Z-14.4-817) certifications as GSE's standard Portrait Evolution half-frames.
