GSE Top Centre Flashing Universal 1500mm - Black - ART101041

Description

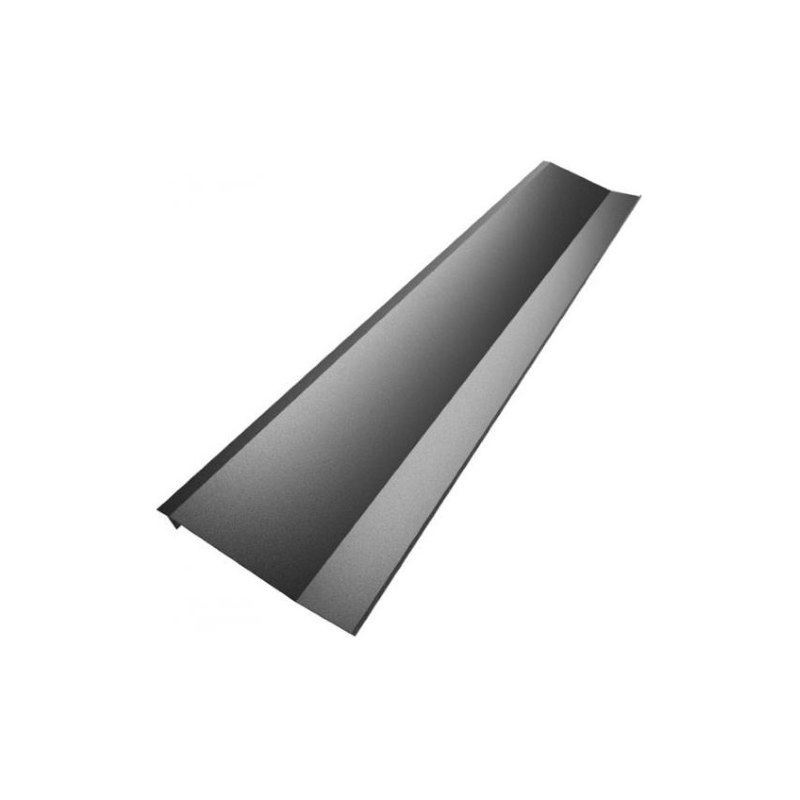

The GSE Top Centre Flashing forms the main run of top flashing along the upper edge of a GSE In-Roof System array, shedding water away from the top row of PV modules and onto the surrounding roof covering.

Supplied at 1500mm long in black, it is fitted with an attach angle using pop rivets, positioned so the module frame thickness sits between the attach angle and the flashing, then joined to adjacent sections using top junction flashings.

1500mm

Length

Black

Finish

14°

Flashing Slope

2 Hooks Min.

Fixing Points

Universal

Kit Compatibility

In-Roof

System

Important Safety Information

GSE's top flashing is designed with a 14° slope to shed water above the top row of modules. The installer must confirm the roof pitch is steep enough to prevent water retention; on borderline slopes, GSE recommends using a thicker support lath or substituting a flexible flashing strip.

Primary Top-of-Array Flashing

Runs along the top edge of the PV field, directing water away from the uppermost row of modules.

Matched Black Finish

Finished in black to match the GSE In-Roof frame, clamps and flashing kit.

Engineered Water-Shedding Slope

Manufactured with a built-in 14° slope to actively shed water clear of the top row of modules.

Attach Angle Fixing

Joined to the attach angle using pop rivets, positioned so the module frame thickness sits correctly between the two parts.

Connects to Junction and Corner Pieces

Designed to link with top junction flashings (100mm minimum overlap) and corner flashings at each end of the run.

Secured with Flashing Hooks

Fixed to the roof battens using flashing hooks, at least two per piece, with a precompressed seal applied over the joint.

Product Details

Product Type

Top centre flashing

Length

1500mm

Colour / Finish

Black

Kit

Universal

Design Slope

14°

Installation

Fitting Position

Top edge of the PV array, above the uppermost row of modules

Fixing to Attach Angle

Pop rivets, with module frame thickness set between attach angle and flashing

Fixing to Roof

Flashing hooks, minimum 2 per piece

Junction Overlap

Minimum 100mm to adjoining top junction flashing

Minimum Roof Pitch

Sufficient slope required to prevent water retention against the 14° flashing angle — refer to GSE installation manual

System

GSE In-Roof System

What is the top centre flashing used for?

It's the main flashing run along the top of the PV array, shedding water clear of the uppermost row of modules and onto the surrounding roof covering.

Why does the flashing have a 14° slope?

The slope is built in to actively direct water away from the top row of modules rather than allowing it to pool.

How is the top flashing fixed to the module frame?

It's joined to an attach angle using pop rivets, with the assembly positioned so the module frame thickness sits between the two pieces.

What happens on a shallow roof pitch?

On borderline slopes, GSE recommends using a thicker support lath to reduce the counter-slope, or replacing the top flashing with a flexible flashing strip instead.

How does this connect to the corner flashings?

The top centre flashing meets the corner flashings at each end of the array, with a minimum 100mm overlap and a PU glue joint at the junction.
