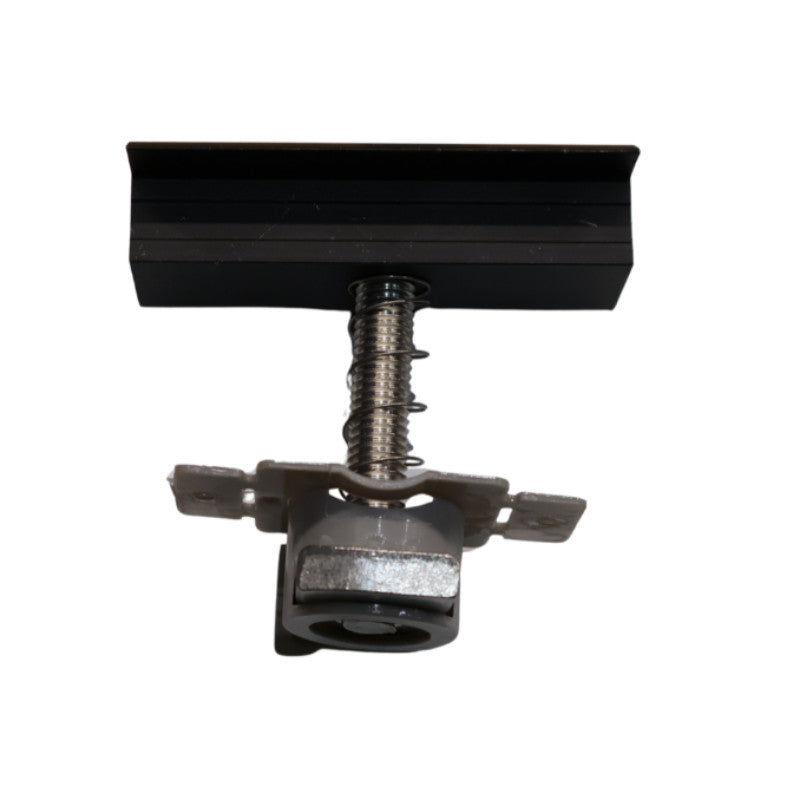

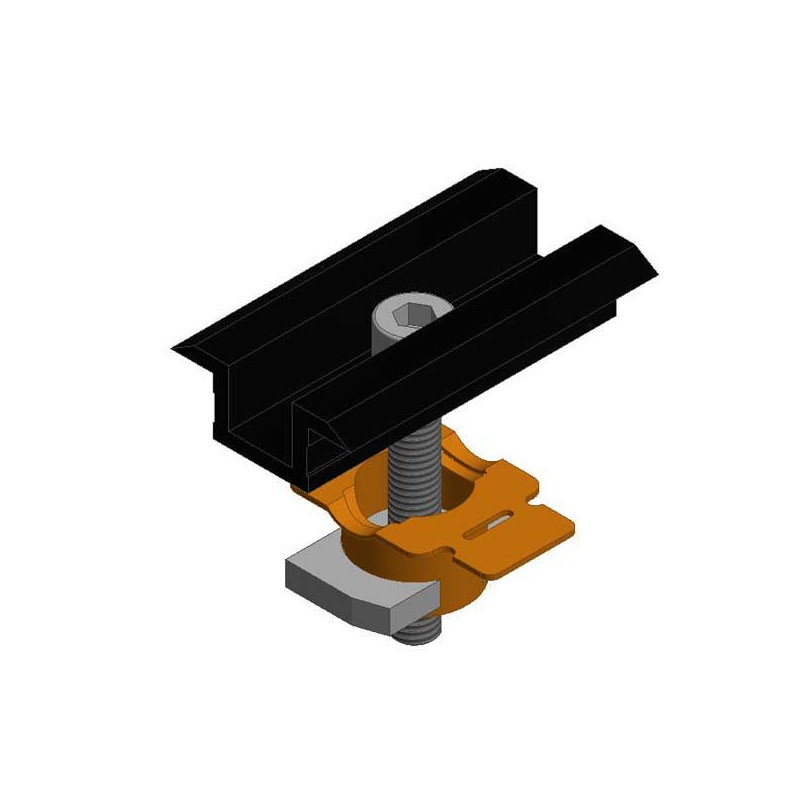

Secure your solar panels with confidence using the GSE Ground Mount EVOLUTION Mid Clamp 30/40mm. This precision engineered black mid clamp is designed specifically for the GSE EVO ground mount system, ensuring stable, safe, and professional PV module installation. Compatible with solar panels featuring a frame depth between 30mm and 40mm, it delivers reliable performance for both residential and commercial ground mounted solar projects.
Made from high quality metal with a sleek black finish, this mid clamp maintains visual consistency with black framed modules while providing robust structural integrity against wind, weather, and environmental stress. It's an essential component for achieving compliant, long lasting solar installations.
Why Buy This Product?
-
Perfect Compatibility: Specifically designed for the GSE Ground Mount EVOLUTION system, ensuring seamless integration and warranty compliance.
-
Wide Panel Range: Accommodates solar panels with 30 - 40mm frame depth, offering flexibility across multiple module brands.
-
Superior Durability: Constructed from high grade metal for long term resistance to corrosion, UV exposure, and mechanical loads.
-
Aesthetic Appeal: Black finish blends seamlessly with black framed panels for a clean, professional appearance.
-
Secure Fixing: Holds adjacent panels firmly in place, maintaining consistent spacing and alignment under wind loads up to 31 m/s.
-
Easy Installation: Designed for quick assembly with standard tools, reducing installation time and labour costs.
-
Warranty Protection: Using genuine GSE components ensures your mounting system warranty remains valid.
Suitable For
- Homeowners installing ground mounted solar PV systems on gardens, fields, or open land.
- Trade professionals and solar installers working on residential or commercial ground mount projects.
- Portrait installation configurations requiring reduced ground footprint.
- Projects demanding adjustable tilt angles between 7° and 40°.
- Ballasted ground mount systems requiring no concrete or expensive groundwork.
Key Features
- Compatible with GSE Ground Mount EVOLUTION ballasted system.
- Accepts panel frame depths from 30mm to 40mm.
- Black powder coated finish for aesthetic consistency and corrosion resistance.
- Robust metal construction for structural integrity.
- Ensures secure panel alignment and consistent spacing.
- Withstands wind loads up to 31 m/s when properly ballasted.
- Part of GSE's modular, intuitive installation system.
- Requires minimum 16 Nm tightening torque for M8 bolts.
- Must be used exclusively with GSE mounting components to maintain warranty.
Technical Specifications
| Specification |
Detail |
| Product Name |
GSE Ground Mount EVOLUTION Mid Clamp |
| MPN (Manufacturer Part Number) |
ART101240 |
| Colour |
Black |
| Panel Frame Depth Compatibility |
30mm - 40mm |
| Material |
High quality metal (powder coated) |
| Compatible System |
GSE Ground Mount EVOLUTION |
| Installation Orientation |
Portrait (for reduced ground footprint) |
| Adjustable Tilt Angle |
7° - 40° (7 angle settings) |
| Maximum Wind Load |
31 m/s (with sufficient ballasting) |
| Minimum Ballast per Box |
100 kg |
| Ballast Box Volume |
0.227 m³ |
| Tightening Torque (M8 Bolt) |
Minimum 16 Nm |
| Certifications |
Complies with GSE mounting system standards |
| Warranty |
Covered under GSE mounting system warranty when used with genuine GSE components |
| What's Included |
1× GSE Ground Mount EVOLUTION Mid Clamp 30/40mm - Black |
Important: GSE mounting equipment must not be used with components from other suppliers. Doing so will void the mounting system warranty. Always refer to the manufacturer's installation manual and confirm all critical details before purchasing or installation.
