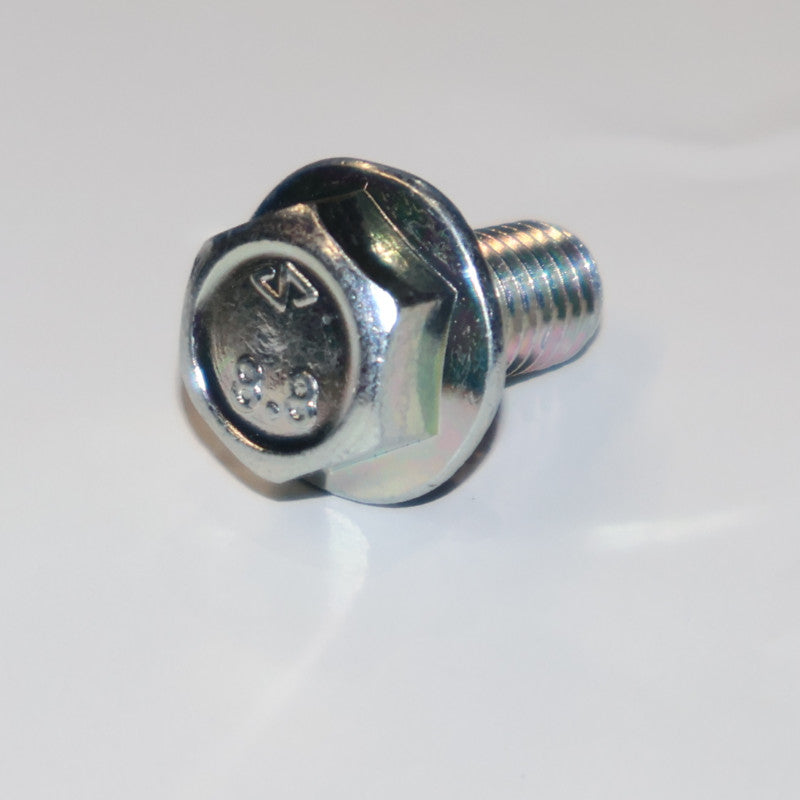

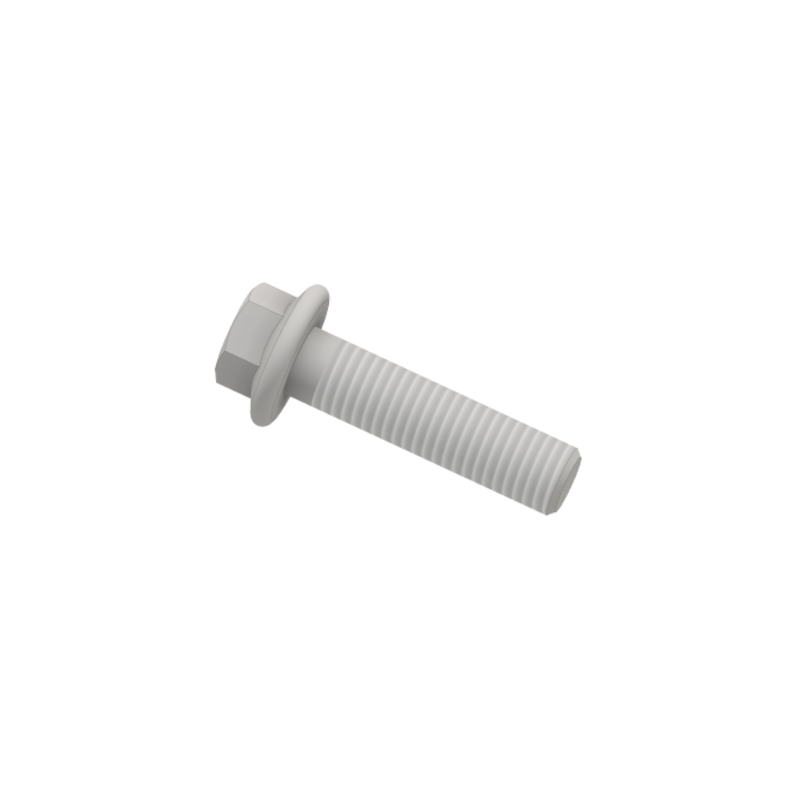

The GSE Ground Mount EVOLUTION M8x20 Screw is a high quality, galvanised steel fastener designed specifically for assembling the GSE Ground Mount EVOLUTION ballasted box frame. Essential for secure, durable construction of ground mounted solar panel systems, this M8 screw ensures reliable connection of the EVOLUTION box components for long lasting performance in outdoor renewable energy installations.
Corrosion resistant and engineered for professional grade solar mounting applications, this screw is a critical component for homeowners and trade professionals installing portrait PV module ground mount systems across the UK.
Why Buy This Product?
-
Essential for Assembly: Required to construct the GSE Ground Mount EVOLUTION ballast box – every complete ground mount system needs these screws
-
Exceptional Durability: Made from galvanised steel with corrosion resistant coating for decades of outdoor performance
-
Professional Grade: Trusted by trade installers across the UK for reliable, code compliant solar mounting installations
-
Perfect Compatibility: Designed specifically to work with the GSE Ground Mount EVOLUTION system - no guesswork, perfect fit every time
-
Quick Installation: M8x20mm specification enables fast, secure assembly without specialised tools
-
Cost Effective: Affordable replacement or additional screws for expanding your solar array
Suitable For
- Homeowners installing ground mounted solar panel systems in gardens, grounds, or open land
- Trade professionals and solar installers completing GSE Ground Mount EVOLUTION installations
- DIY enthusiasts assembling ballasted ground mount systems for portrait PV modules
- Replacement or spare fasteners for existing GSE EVOLUTION ground mount installations
- Commercial and residential solar projects requiring code compliant, durable mounting hardware
Key Features
-
Precise Specification: M8x20mm thread size optimised for GSE Ground Mount EVOLUTION box assembly
-
Corrosion Resistance: Galvanised steel construction withstands harsh UK weather conditions
-
System Integration: Works seamlessly with M8 nuts for complete secure fastening
-
Heavy Duty Performance: Engineered to support ballasted box frames holding up to 400kg of sand ballast
-
Wind Resistance: Contributes to system's proven mechanical resistance against winds exceeding 150 km/h
-
Recyclable Material: Steel construction aligns with sustainable, eco friendly solar energy values
-
Trade Verified: Used in professional installations tested against Euro code wind zone standards
Technical Specifications
| Specification |
Detail |
| Product Type |
M8 x 20mm Screw for Ground Mount Assembly |
| Part Code / SKU |
ART106569 |
| Thread Size |
M8 |
| Screw Length |
20mm |
| Material |
Galvanised Steel |
| Coating |
Galvanised (corrosion resistant) |
| Compatible System |
GSE Ground Mount EVOLUTION Box Frame |
| Compatible Nut |
M8 Nut (ART100743) |
| Application |
Ballasted ground mounting system for portrait PV modules |
| Module Orientation |
Portrait installation (in multiples of 2 modules) |
| Max Panel Size Compatible |
Length < 2.40m, Width < 1.35m |
| Wind Zone Rating |
Up to 31 m/s (with sufficient ballast, Euro code tested) |
| Wind Resistance |
Proven up to 150 km/h |
| System Warranty |
20 years (subject to installation recommendations) |
| Installation Type |
Ground installation on level surface only |
| Exclusions |
Not for terraces, roofing, mounds, coastal areas (Category 0), or altitude > 900m |
| Recyclable |
Yes |
| Country of Manufacture |
France (GSE Integration) |
Installation Notes
This screw is used to assemble the GSE Ground Mount EVOLUTION box frame. For a complete ground mount installation, you will need multiple screws along with the corresponding M8 nuts, ballast box components, rails, brackets, and solar panels. The system requires a box frame for every 2 portrait panels and is designed for level ground installation only.
Always refer to the official GSE Ground Mount EVOLUTION configurator and installation guide for precise ballast calculations based on your location, terrain category, and wind zone. Professional installation is recommended for optimal performance and warranty compliance.
Order with Confidence
As an essential component of the award winning GSE Ground Mount EVOLUTION system, this M8x20 screw delivers the reliability and durability you need for long term solar energy generation. Whether you're a trade professional completing multiple installations or a homeowner building your own ground mounted solar array, this fastener ensures your system is built to last.
