GSE EPDM Wedge For Clamps - In Roof (25x21mm, 5mm Thick) - ART105708

Description

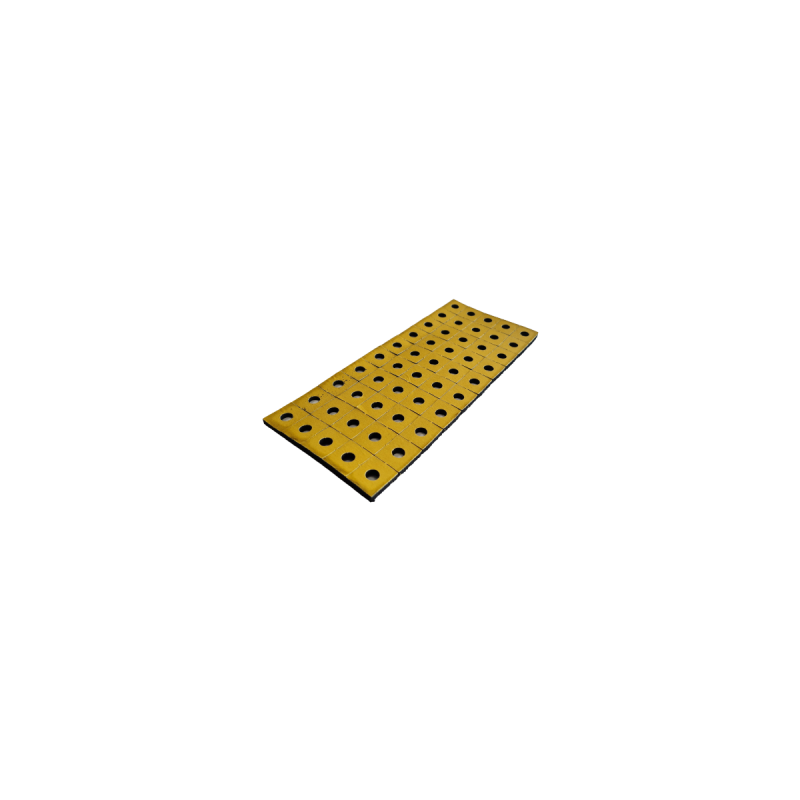

The GSE EPDM Wedge is the sealing pad that sits beneath every end and middle clamp on a GSE In-Roof System installation, closing the gap between the clamp and the frame corrugation so that no water can track back under the fixing point.

Supplied as a 25 x 21mm, 5mm-thick section, this is the current-design wedge and directly replaces the earlier ART101138 EPDM cell. It is fitted at every clamp position specified by the GSE In-Roof installation manual and is not intended as a general-purpose seal outside the GSE system.

25 x 21mm

Wedge Size

5mm

Thickness

EPDM

Material

50

Pieces / Sheet

1 per Clamp

Fitting Rate

In-Roof

System Compatibility

Please Note

ART105708 is the current EPDM wedge design and supersedes the older ART101138 reference. If replacing a small number of modules on an existing installation, ART105708 can be used in place of ART101138 without affecting the watertightness of the assembly.

Watertight Clamp Seal

Made from ethylene propylene diene monomer (EPDM) rubber, providing a durable, weather-resistant seal beneath GSE end and middle clamps.

Purpose-Matched Fit

Sized specifically at 25 x 21mm with a 5mm thickness to sit correctly under the corrugation of GSE In-Roof frames.

Sheet-Supplied Convenience

Delivered as a sheet of 50 pieces, allowing wedges to be punched or cut out as needed for the installation.

Direct Replacement Reference

Supersedes ART101138, so existing GSE In-Roof arrays can be serviced or extended using the current part.

Fitted Beneath Every Clamp

Used to hold down the end clamps that secure PV panels to the GSE roof-integrated mounting frame.

Simple Panel Replacement

Referenced in the GSE maintenance procedure for module replacement, where a fresh wedge is fitted under the corrugation each time a clamp is refitted.

Product Details

Product Type

EPDM sealing wedge for GSE In-Roof clamps

Dimensions

25 x 21mm

Thickness

5mm

Material

EPDM (ethylene propylene diene monomer rubber)

Supply Format

Sheet of 50 pieces

Supersedes

ART101138 EPDM

Compatibility

System

GSE In-Roof System (Universal Kit)

Fitting Position

Beneath end clamps at panel array edges, and middle clamps as specified

Fitting Rate

One wedge per clamp position

What is the GSE EPDM Wedge used for?

It is a rubber sealing pad fitted underneath the end and middle clamps of a GSE In-Roof System, closing the gap between the clamp and the frame corrugation to keep the fixing point watertight.

Is this the same part as ART101138?

ART105708 is the updated design that replaces ART101138. It performs the same sealing function and fits the same clamp positions.

How many wedges come in a pack?

Each sheet contains 50 individual wedge pieces, sized 25 x 21mm at 5mm thick.

Can this wedge be used with any solar mounting system?

No. It is purpose-made for the GSE In-Roof System and is sized to match GSE frame corrugations and clamps.

Do I need a new wedge every time I remove a panel?

Yes. GSE's module replacement procedure specifies fitting a new EPDM wedge under the corrugation whenever an edge clamp is refitted.
