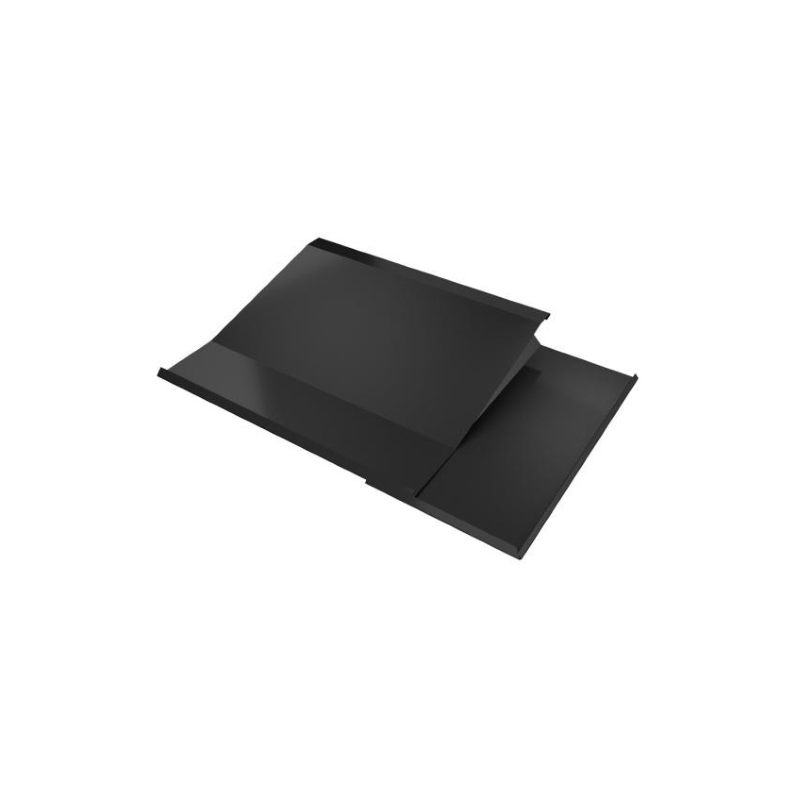

GSE Corner Flashing - Top Left - Black - ART100945

Description

The GSE Corner Flashing (Top Left) closes the corner junction between the top flashing and the lateral flashing at the upper-left of a GSE In-Roof System array, sealing the point where the two flashing runs meet.

Finished in black to match the rest of the GSE In-Roof flashing kit, it can also be used where site constraints or tile spacing mean the standard top flashing doesn't reach far enough to fully close the corner.

Top Left

Position

Black

Finish

100mm Min.

Overlap

PU Glue Joint

Fixing

Universal

Kit Compatibility

In-Roof

System

Please Note

On some module thicknesses, a gap can appear between the module and the corner flashing. GSE's installation manual sets out a compatibility table by module thickness and frame version, and in some cases requires the corner flashing to be cut and re-assembled with a rivet to adjust its height. Check module thickness against the frame version before installing.

Seals the Top-Left Corner

Closes the junction between top and lateral flashing at the upper-left corner of the PV array.

Matched Black Finish

Supplied in black to match GSE's standard In-Roof flashing kit and frame colour.

Useful Where Standard Flashing Falls Short

A practical option where placement constraints or tile spacing mean standard top flashing doesn't reach the array corner.

Manual-Specified Overlap

Fitted with a PU glue joint on the overlapping zone of the top flashing, with a minimum 100mm overlap.

Height-Adjustable When Required

Can be cut into two pieces and re-riveted to adjust its height for compatibility with certain module thickness and frame combinations.

Universal Kit Fit

Designed for use with the GSE In-Roof Universal Kit flashing system.

Product Details

Product Type

Corner flashing

Position

Top left

Colour / Finish

Black

Kit

Universal

Installation

Fitting Position

Junction of top and lateral flashing, upper-left corner of array

Minimum Overlap

100mm, with PU glue joint on the overlapping zone

Height Adjustment

May require cutting into two pieces and re-riveting for certain module thickness / frame combinations

System

GSE In-Roof System

What is the corner flashing used for?

It seals the top-left corner junction between the top flashing and lateral flashing on a GSE In-Roof array.

Why would I need a cut corner flashing instead of standard top flashing?

It's a useful option where placement constraints or roof tile spacing prevent the standard top flashing from fully closing the corner.

Does this flashing ever need cutting on site?

In some module thickness and frame combinations, yes — GSE's manual describes cutting the corner flashing into two pieces and riveting them back together at an adjusted height.

How is it fixed to the top flashing?

With a PU glue joint on the overlapping zone, maintaining a minimum 100mm overlap, as set out in the GSE installation manual.

Is there a matching right-hand version?

GSE's In-Roof flashing range includes corner pieces for both the left and right sides of the array; confirm the correct hand for your installation before ordering.
