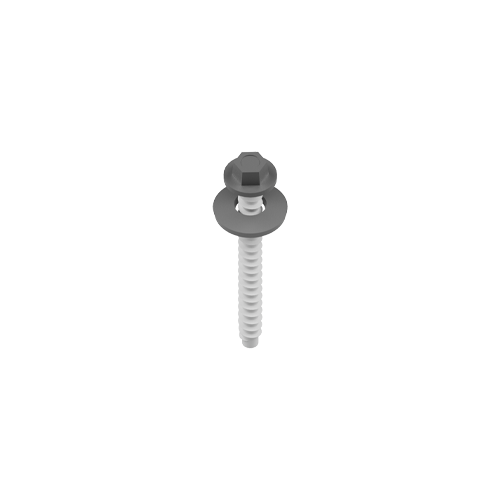

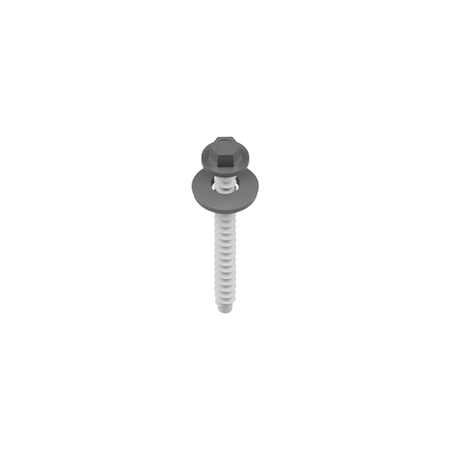

GSE 6.5 x 60mm In Roof Screw with EPDM Washer - A2 - Black
Regular price
£0.95
Inc. VAT
£0.79
Exc. VAT
FREE Express Delivery (1-3 days) in UK Mainland on most orders*
Excluding: Solar Panels (£170 delivery / free above £2,500), Batteries (£39 delivery), Small Items (£4.95/5.95 delivery / free above £500)
Contact Us to check for Next Working Day Delivery or Same-day Delivery options
Contact Us for Click & Collect options
Custom quote available on request
*See checkout or shipping policy for full details
Payment options
Tools & Kits
Build your kit
Need a full system?
Design your complete solution in minutes with our kit builders.
Do you have a question
about this product?
One of our expert advisors will be happy to help you!
Contact Us
Secure your GSE in roof solar PV mounting system with confidence using this high performance self tapping screw. Crafted from corrosion resistant A2 stainless steel and fitted with a premium EPDM washer, this 6.5 x 60mm fastener delivers a watertight, weatherproof seal that protects your roof installation for years to come. Ideal for both homeowners undertaking solar projects and trade professionals seeking reliable, long lasting fixings.
Why Buy This Screw?
- 100% Watertight Seal: Integrated EPDM washer prevents water ingress and roof leaks, even in severe weather conditions
- Superior Corrosion Resistance: A2 stainless steel construction ensures durability outdoors for decades
- Trade Grade Quality: Designed specifically for the GSE in roof PV mounting system - the industry standard for flush fit solar installations
- Quick & Easy Installation: Self tapping design saves time on site without pre drilling
- Temperature Resistant: Performs reliably from -30°C to +100°C
- Cost Effective: Sold as a single screw for precise ordering - buy only what you need
Suitable For
- GSE in roof solar PV mounting systems (half frame clamps and brackets)
- Mounting solar panels on curved, interlocking, flat, and slate roofs
- Roof pitches between 12°- 50° on wooden or metal roof structures
- Both new build solar installations and retrofit projects
- Homeowners and certified trade installers working on 3-5kW
- All standard aluminium framed photovoltaic panels (1610–1800 mm length)
Key Features
- Self tapping screw with integrated EPDM sealing washer
- Black oxide finish for enhanced aesthetics and additional corrosion protection
- Compatible exclusively with GSE in roof clamp system
- Lightweight yet incredibly strong - supports secure panel attachment
- 100% recyclable materials (steel and EPDM)
- Backed by GSE's 10 year SMABTP warranty on the overall in roof system
Technical Specifications
| Specification | Detail |
|---|---|
| Product Type | In Roof Self Tapping Screw with EPDM Washer |
| Dimensions | 6.5mm diameter × 60mm length |
| Material | A2 Stainless Steel |
| Washer Type | EPDM (Ethylene Polypropylene Diene Monomer) – Watertight Seal |
| Finish | Black Oxide |
| Manufacturer | GSE (Groupe Solution Energie SAS) |
| Article Number (SKU) | ART106051 |
| Compatibility | GSE In Roof PV Mounting System (Half Frame Clamps) |
| Roof Pitch Range | 12° - 50° |
| Temperature Range | -30°C to +100°C |
| Weather Resistance | 100% Waterproof, Corrosion-Resistant |
| Warranty | 10 Years (SMABTP backed - on overall GSE in roof system) |
| Recyclable | Yes – 100% |
