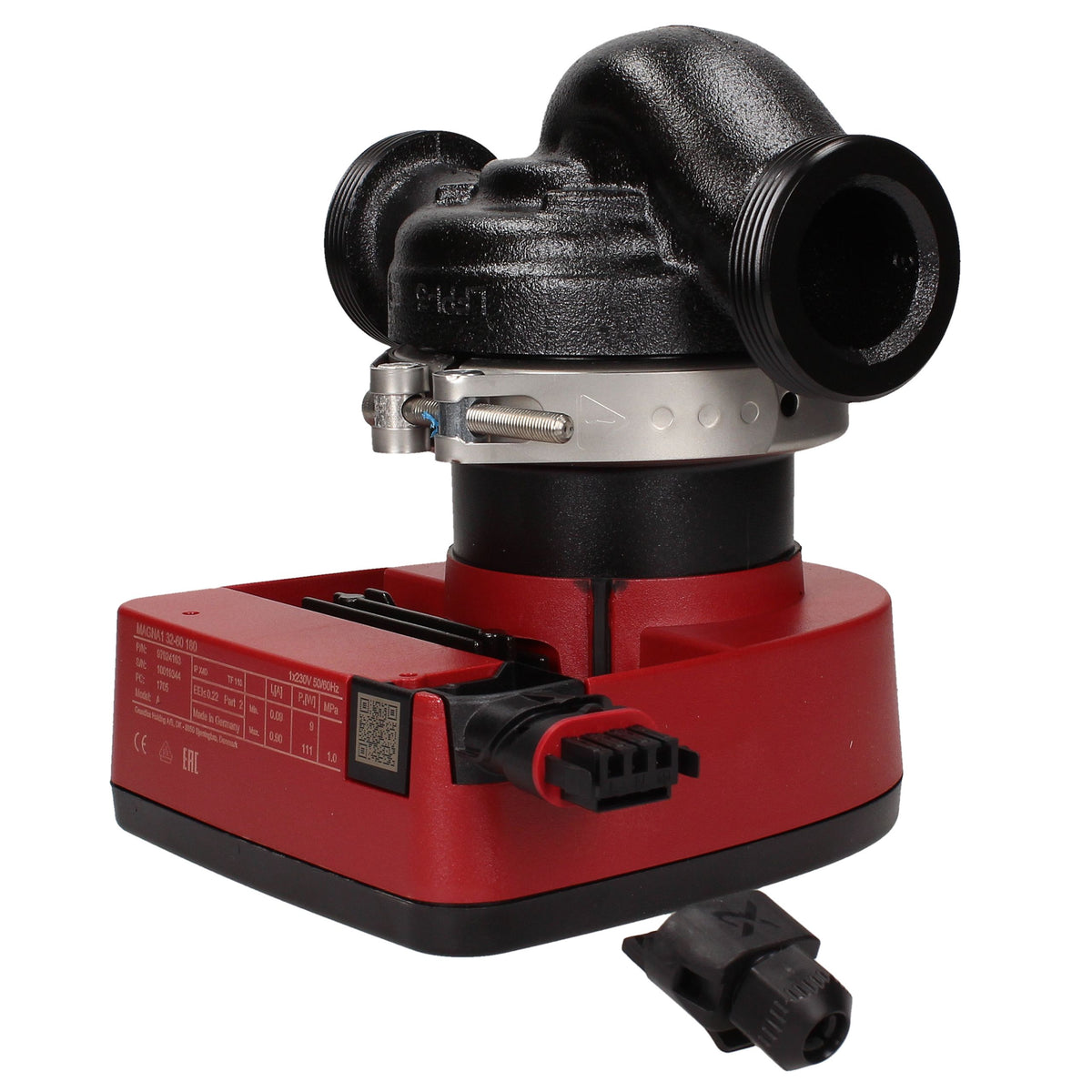

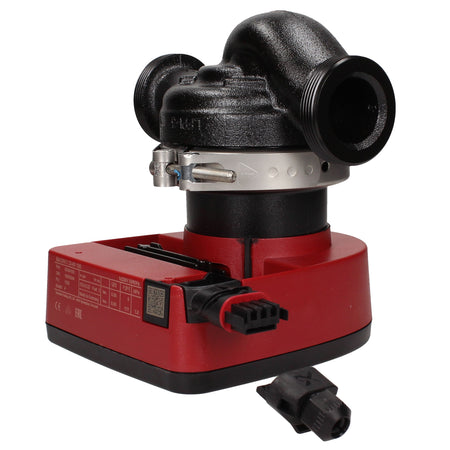

Grundfos MAGNA1 32-60 Circulating Pump - 180mm, 230V

Grundfos
£930.00 Inc. VAT £775.00 Exc. VAT
  • FREE Express Delivery (1-3 days) in UK Mainland on most orders*
  • Excluding: Solar Panels (£170 delivery / free above £2,500), Batteries (£39 delivery), Small Items (£4.95/5.95 delivery / free above £500)
  • Contact Us to check for Next Working Day Delivery or Same-day Delivery options
  • Contact Us for Click & Collect options
  • Custom quote available on request
*See checkout or shipping policy for full details

Payment options

  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • Diners Club
  • Discover
  • EPS
  • Google Pay
  • iDEAL Wero
  • JCB
  • Klarna
  • Maestro
  • Mastercard
  • Multibanco
  • MB WAY
  • MobilePay
  • PayPal
  • Przelewy24
  • Shop Pay
  • Union Pay
  • Visa

Do you have a question
about this product?

One of our expert advisors will be happy to help you!

Contact Us
Question Image

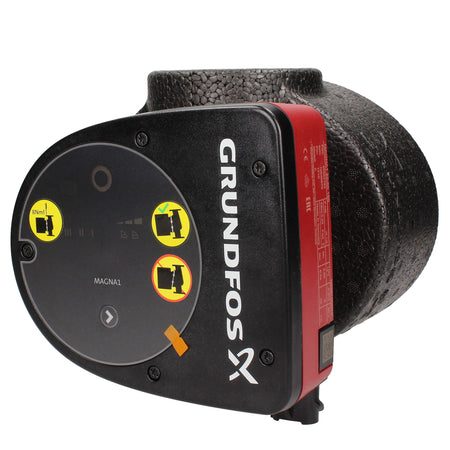

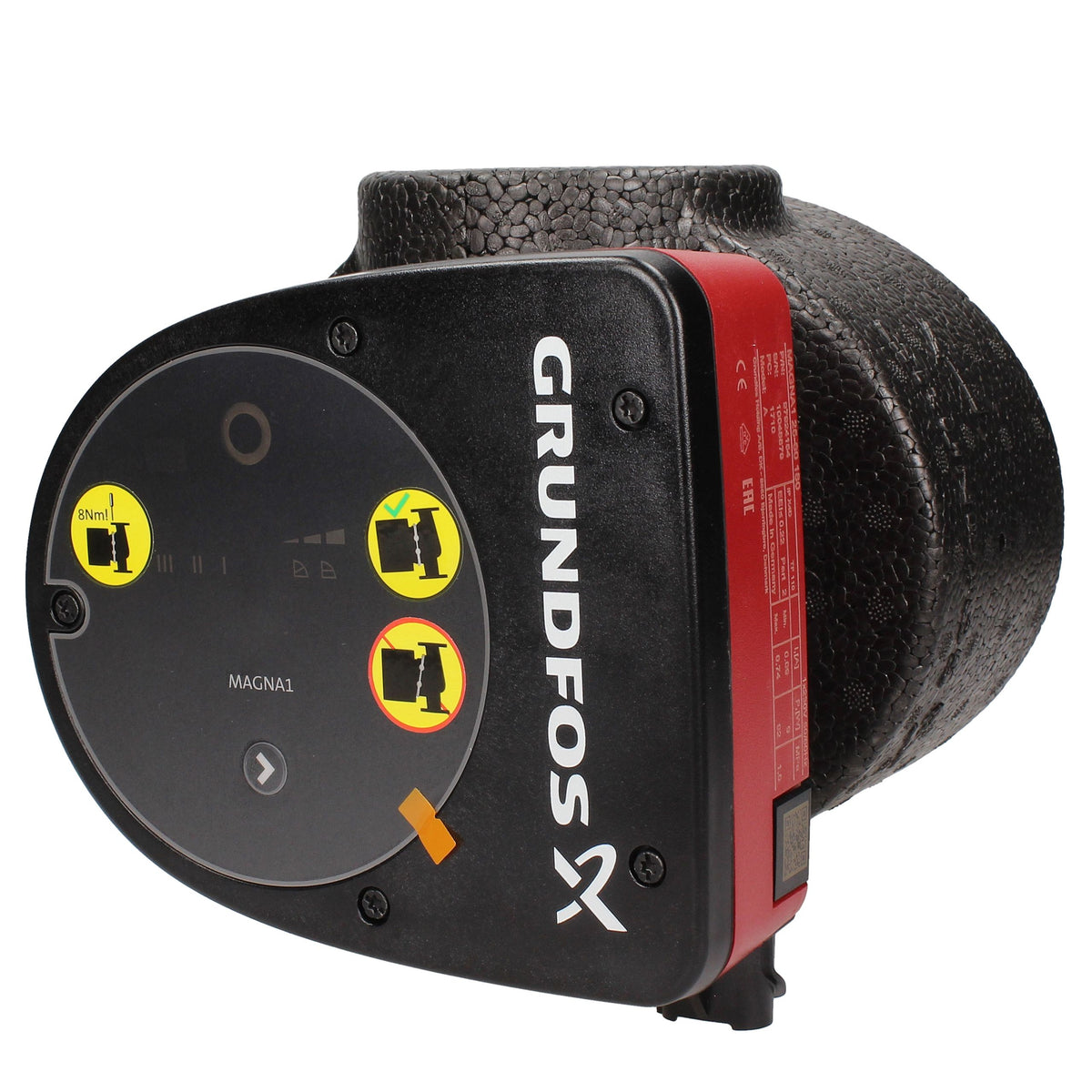

The Grundfos MAGNA1 32-60 is a reliable, energy efficient circulating pump designed to maintain consistent water circulation in residential and commercial heating systems. Its intelligent variable speed operation automatically adjusts pump performance to match system demand, helping reduce unnecessary energy consumption while supporting dependable heating distribution.

With a maximum head of 6 metres, a 180mm port to port length and a 230V single phase electrical supply, this compact circulating pump is suitable for a wide range of closed loop heating applications. The cast iron pump housing provides durable performance, while the integrated control system helps simplify installation and day to day operation.

Key Features

Energy efficient operation

Variable speed control adjusts pump output according to system demand, helping reduce energy use.

6 metre maximum head

Provides effective circulation for suitable domestic and light commercial heating systems.

Compact 180mm design

The standard 180mm port to port length supports straight forward replacement and installation where compatible pipework is already in place.

Durable cast iron housing

Built with a robust cast iron pump housing for dependable performance in heating applications.

Quiet automatic control

Automatic performance adjustment helps maintain efficient circulation without requiring constant manual intervention.

Trusted Grundfos quality

Manufactured by Grundfos for dependable use in heating and water circulation systems.

Technical Specifications

Brand Grundfos
Product range MAGNA1
Product type Electronic circulating pump
Model MAGNA1 32-60
Product number / MPN 99221234
EAN / GTIN 5712608942075
Maximum head 6m / 60dm
Port to port length 180mm
Pipe connection G 2 inch
Pressure rating PN10
Maximum operating pressure 10 bar
Power input 9 - 111W
Rated voltage 1 x 230V
Mains frequency 50Hz
Maximum current consumption 0.09 - 0.9A
Pumped liquid Water
Liquid temperature range -10°C to 110°C
Recommended operating liquid temperature 60°C

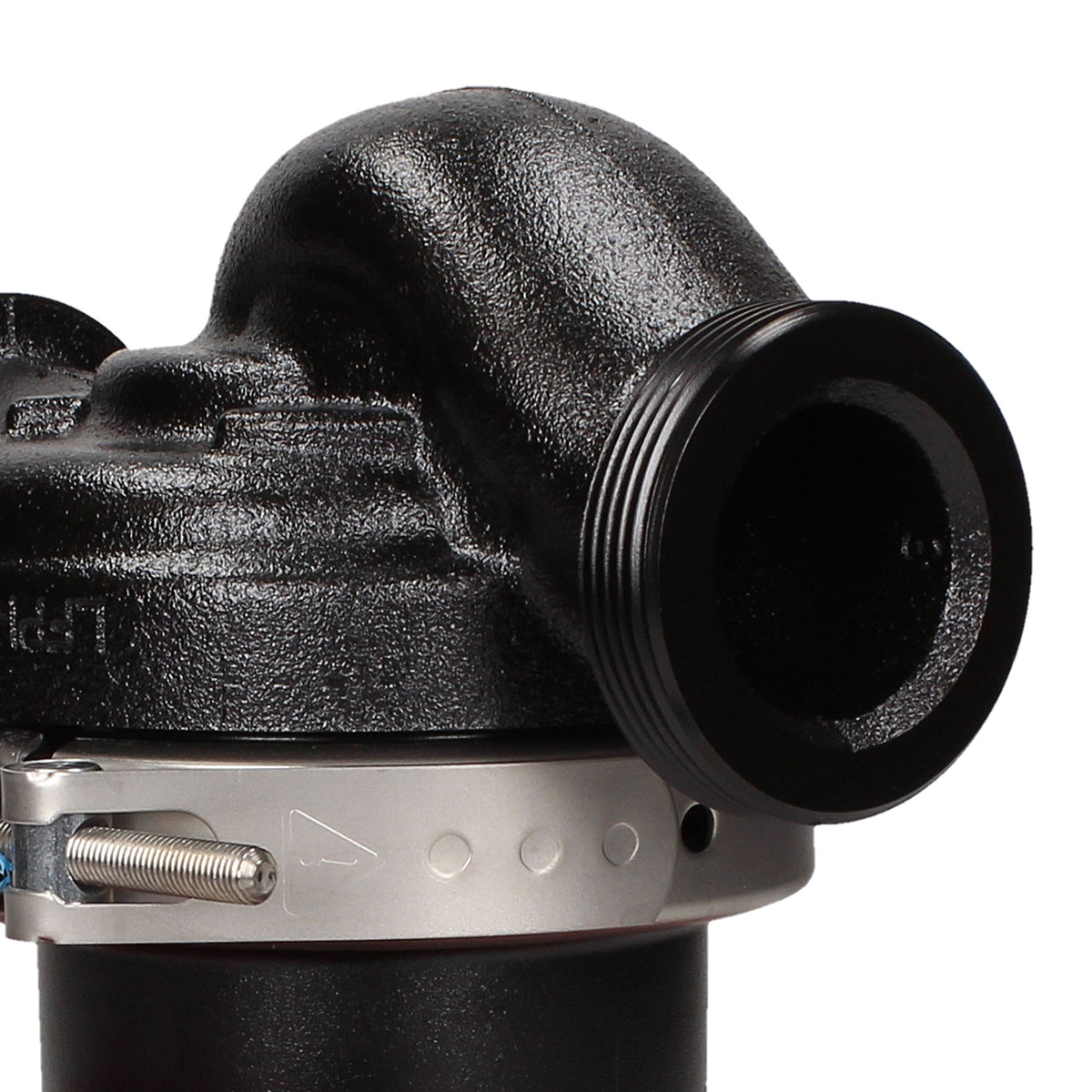

Pump housing material Cast iron
Impeller material PES 30% glass fibre reinforced
Ambient temperature range 0°C to 40°C
Enclosure class X4D
Insulation class F
Energy Efficiency Index EEI 0.20
Approvals and compliance CE, VDE, EAC, CN RoHS and WEEE

Suitable Applications

Domestic heating systems

Suitable for circulating water through compatible central heating and hydronic heating systems.

Replacement installations

The 180mm port to port format can be suitable for replacing compatible existing circulation pumps.

Commercial heating systems

Designed for suitable light commercial and building services heating applications requiring controlled circulation.

Installer and trade use

A practical choice for heating engineers and installers working on compatible 230V circulation systems.

Important Installation Information

This pump should be installed by a suitably qualified heating or electrical professional. Before purchase, confirm the pump dimensions, connection size, electrical supply, pressure rating and system requirements. The product is intended for compatible water based heating applications and is not a general purpose pump for every liquid or installation type.
